USB-C Docking Station
Hub Series USB-C multiport docks only — one-cable desk hubs with PD pass-through, HDMI, USB 3.0, SD/TF, RJ45, and audio combinations for AI PC and ultrabook bundle programs.
28 representative models — browse below or search by model. Port map, PD wattage, and white-label packaging confirmed on inquiry.
Type-C multiport hubs & docksUSB-C hub and docking programs — HDMI, USB 3.0, PD pass-through, SD/TF, and RJ45 combinations for one-cable AI PC desk setups.28 models
CV-T-01A
Type-C to HDMI female 4K*2K 30HZ — Interface: Type-C · HDMI · Dimensions: 170*22.5*11.2mm · Net weight: 17g.
- Chip: CS5261
- Color: Space gray
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

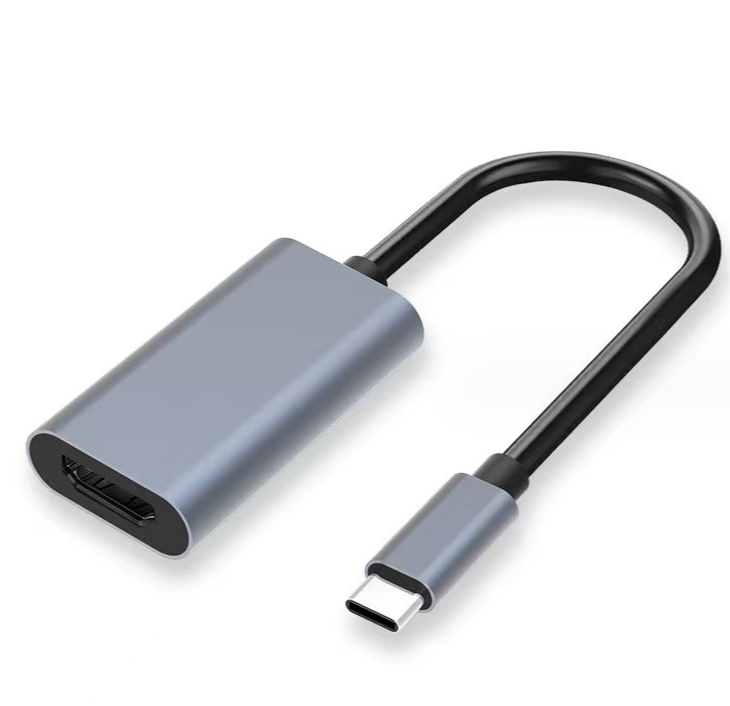

CV-T-01B
Type-C to HDMI female 4K*2K 60HZ — Interface: Type-C · HDMI · Dimensions: 170*22.5*11.2mm · Net weight: 17g.
- Chip: CS5265
- Color: Space gray
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

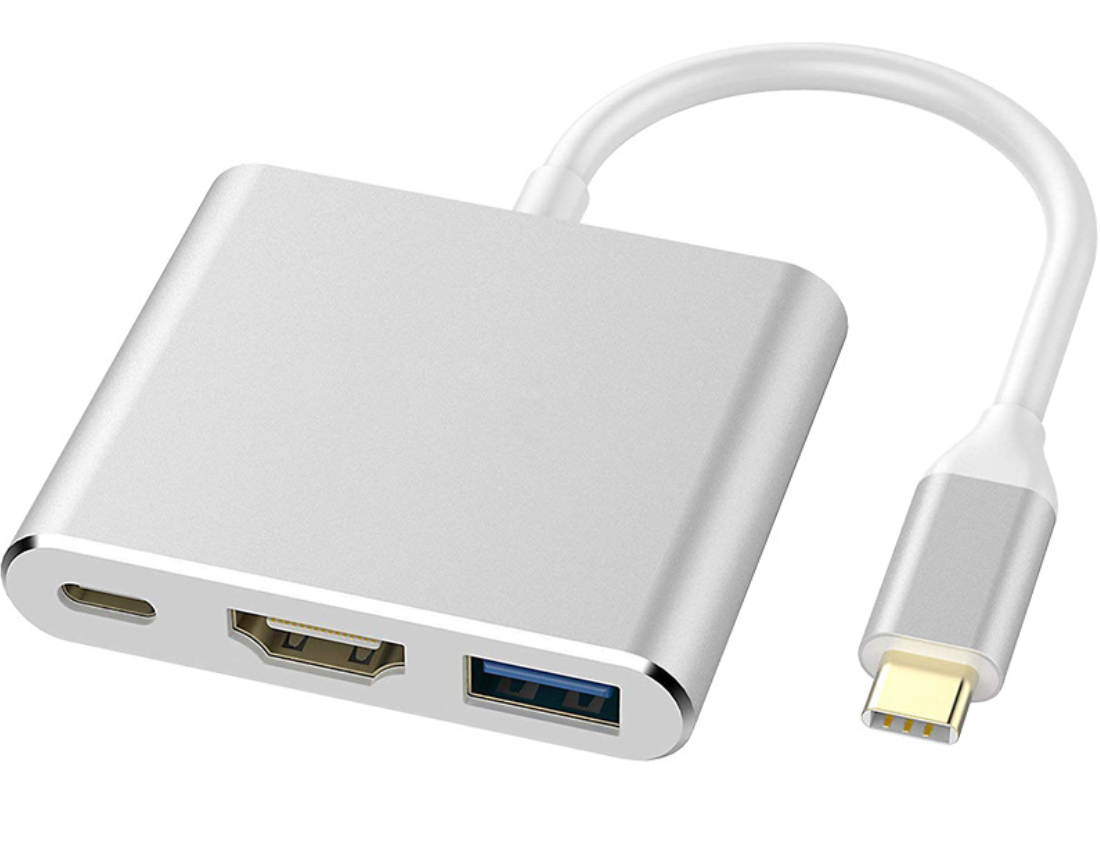

CV-T-15
Type-C to HDMI+USB3.0+PD — Interface: Type-C · HDMI · USB · Dimensions: 166*59*13mm · Net weight: 43.5g.
- Chip: CS5266
- HDMI resolution: 4K 30HZ
- USB3.0: Max transfer rate 5 Gb/s
- PD: 100 W (max)
- Color: Gold · Silver · Space gray · Black
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

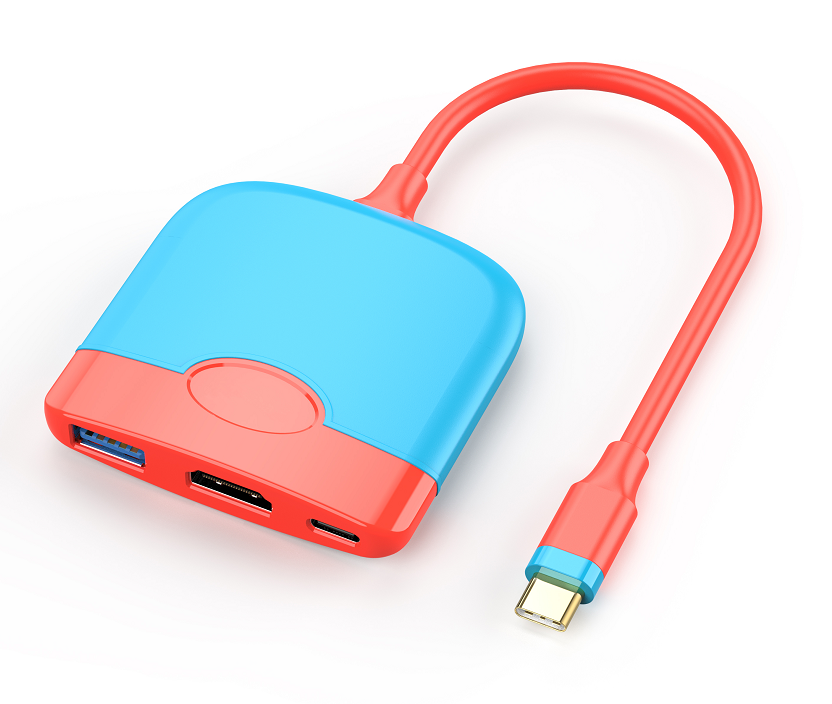

CV-T-16
Nintendo Switch dock — Interface: Type-C · HDMI · USB · Dimensions: 235*62*12mm · Net weight: 33g.
- Chip: CS5366BN-2
- HDMI resolution: 4K 60HZ
- USB3.0: Max transfer rate 5 Gb/s
- PD: 100 W (max)
- Color: Space gray · Red · Blue
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

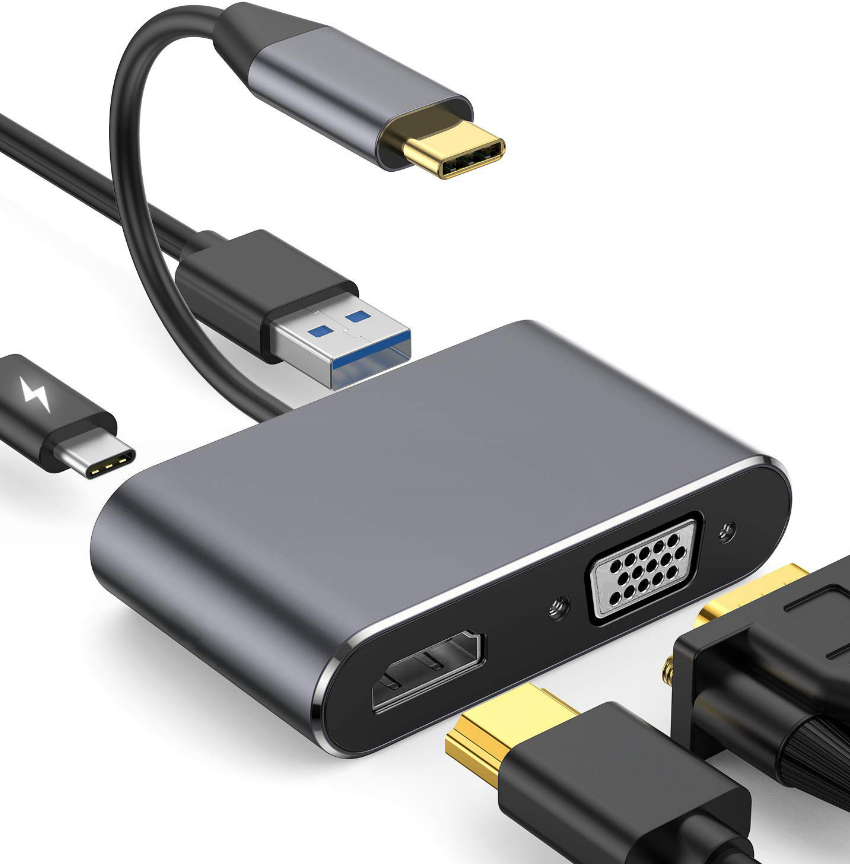

CV-T-17
Type-C to HDMI+VGA+USB3.0+PD — Interface: Type-C · VGA · USB · Dimensions: 170*74*16mm · Net weight: 45g.
- Chip: RTD2166+FL7102
- HDMI: Single display 4K 30 Hz, dual display 1080p
- VGA resolution: 1080P 60HZ
- USB3.0: Max transfer rate 5 Gb/s
- PD: 100 W (max)
- Color: Silver · Space gray · Black
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

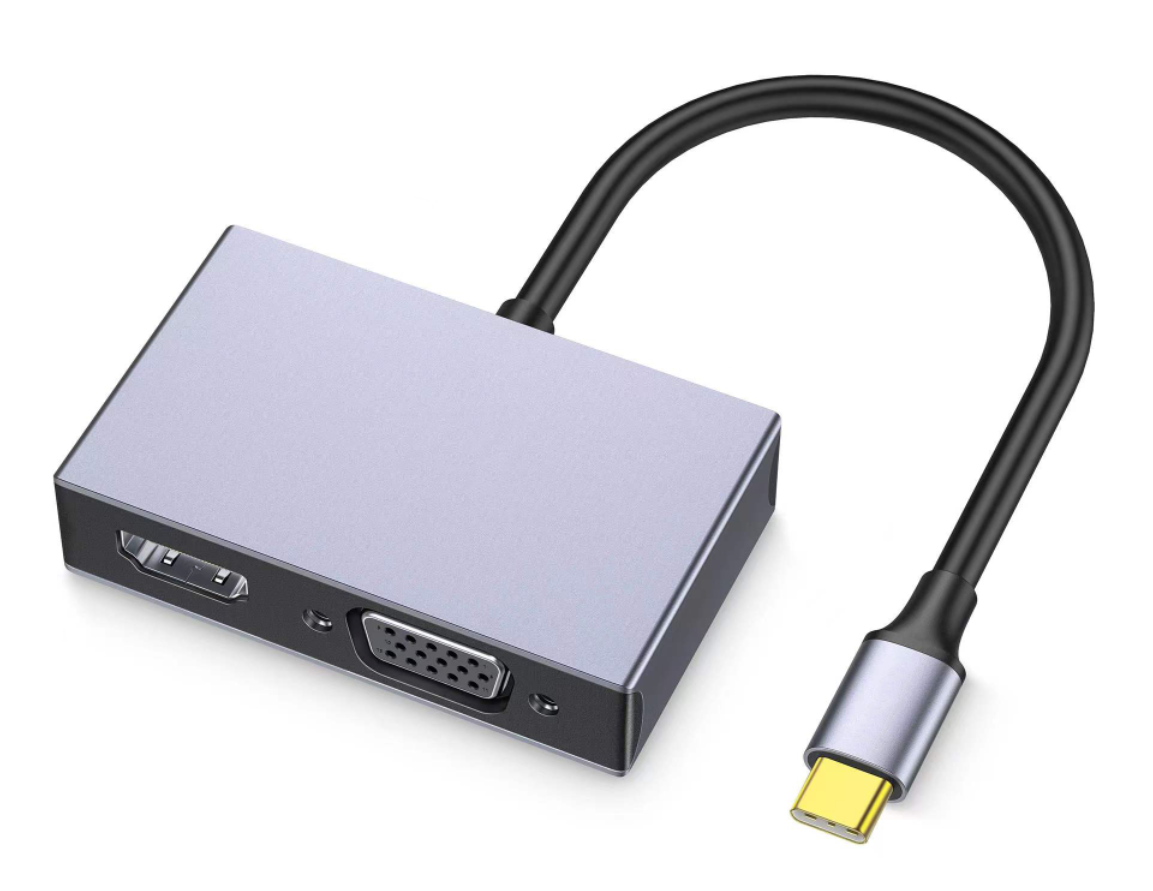

CV-T-18
Type-C to HDMI+VGA — Interface: HDMI · VGA · Dimensions: 150*62*15.5mm · Net weight: 45g.
- Chip: AG9320
- HDMI resolution: Single display up to 4K 30 Hz, dual display up to 1080p 60 Hz
- VGA resolution: 1080P 60HZ
- Color: Space gray · Silver · Black
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

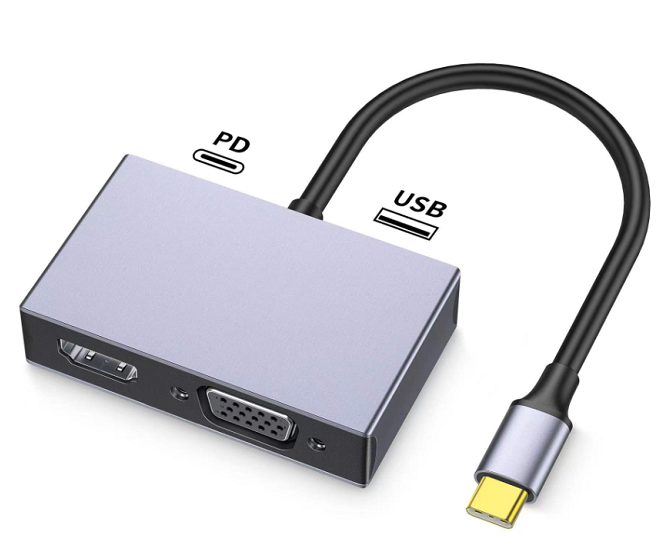

CV-T-19
Type-C to HDMI+VGA+PD3.0+USB3.0 — Interface: HDMI · VGA · USB · Type-C · Dimensions: 150*62*15.5mm · Net weight: 48.4g.
- Chip: AG9320+FL7102
- HDMI resolution: Single display up to 4K 30 Hz, dual display up to 1080p 60 Hz
- VGA resolution: 1080P 60HZ
- USB3.0: Max transfer rate 5 Gb/s
- PD: 100 W (max)
- Color: Space gray · Silver · Black
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

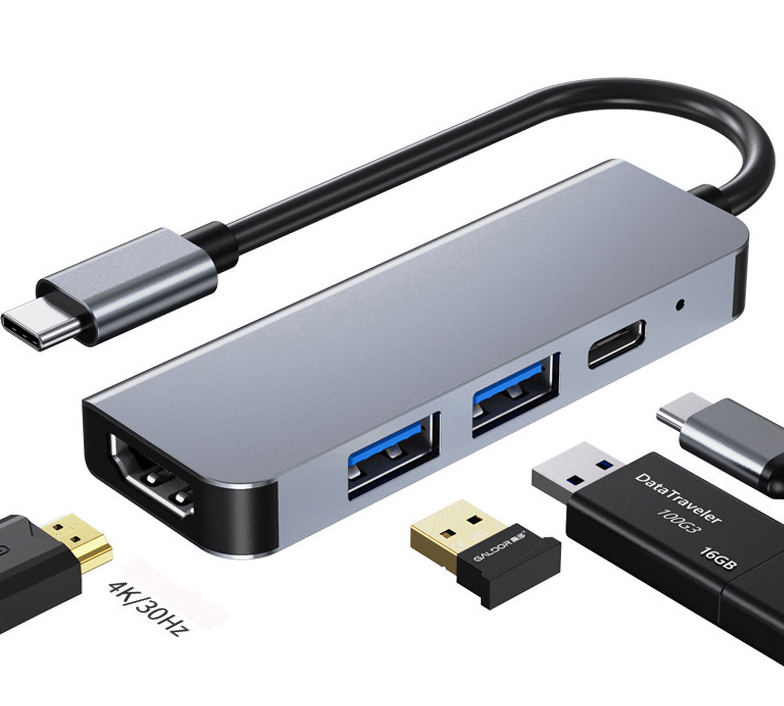

CV-T-22
Type-C to HDMI+USB3.0+USB2.0+PD — export-ready Hub Series program for AI PC bundle and distributor inquiry.
- Chip: CS5261+MA8601
- HDMI resolution: 4K @ 30HZ
- USB3.0: Up to 10 Gbps, 900 mA output
- USB2.0: Up to 480 Mbps, 500 mA output
- PD: 100W(max)
- Housing: Aluminum alloy
- Color: Gray
- Cable spec: Multi-layer shielded cable
- Type-C connector: Nickel-plated
- Supplier program: Hub Series

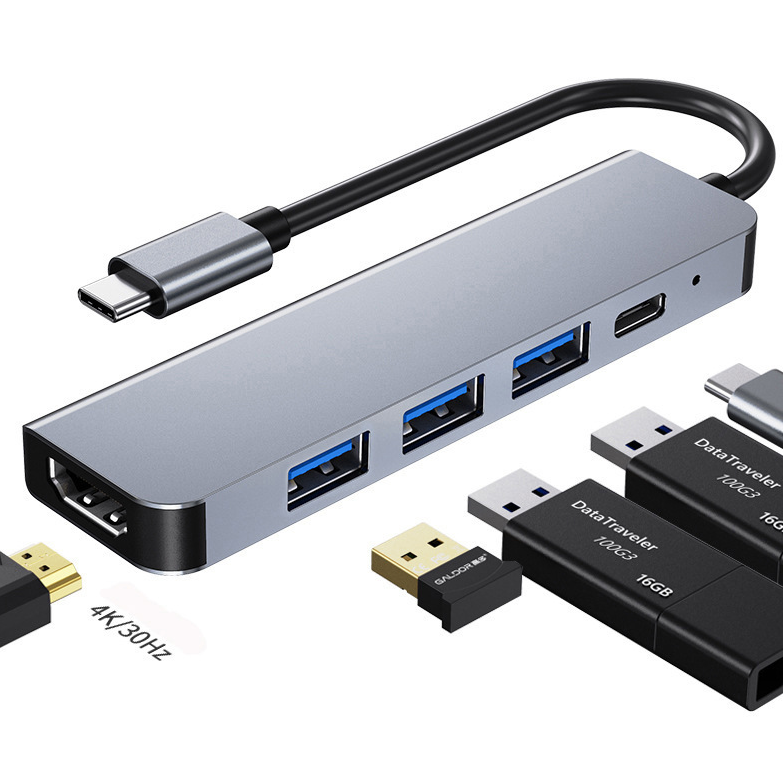

CV-T-23A
Type-C to HDMI+USB3.0+USB2.0*2+PD — export-ready Hub Series program for AI PC bundle and distributor inquiry.
- Chip: CS5261+MA8601
- HDMI resolution: 4K @ 30HZ
- USB3.0: Up to 10 Gbps, 900 mA output
- USB2.0: Up to 480 Mbps, 500 mA output
- PD: 100W(max)
- Housing: Aluminum alloy
- Color: Gray
- Cable spec: Multi-layer shielded cable
- Type-C connector: Nickel-plated
- Supplier program: Hub Series

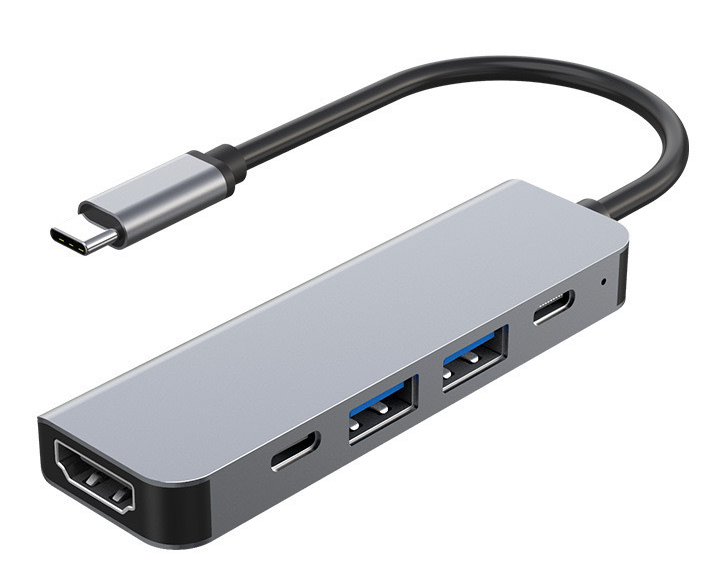

CV-T-23C
Type-C to HDMI+USB3.0+USB2.0+TYPE C2.0+PD — export-ready Hub Series program for AI PC bundle and distributor inquiry.
- Chip: CS5261+MA8601
- HDMI resolution: 4K @ 30HZ
- USB3.0: Up to 10 Gbps, 900 mA output
- USB2.0: Up to 480 Mbps, 500 mA output
- PD: 100W(max)
- Housing: Aluminum alloy
- Color: Gray
- Cable spec: Multi-layer shielded cable
- Type-C connector: Nickel-plated
- Supplier program: Hub Series

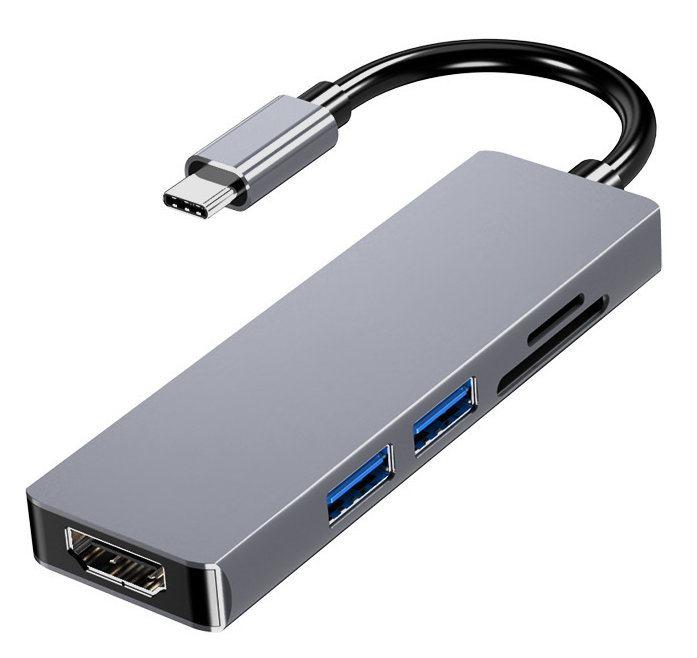

CV-T-24
Type-C to HDMI+USB3.0+USB2.0+TF+SD — export-ready Hub Series program for AI PC bundle and distributor inquiry.
- Chip: CS5261+MA8601+GL823K
- HDMI resolution: 4K @ 30HZ
- USB3.0: Up to 10 Gbps, 900 mA output
- USB2.0: Up to 480 Mbps, 500 mA output
- Housing: Aluminum alloy
- Color: Gray · Silver
- Cable spec: Multi-layer shielded cable
- Type-C connector: Nickel-plated
- Supplier program: Hub Series

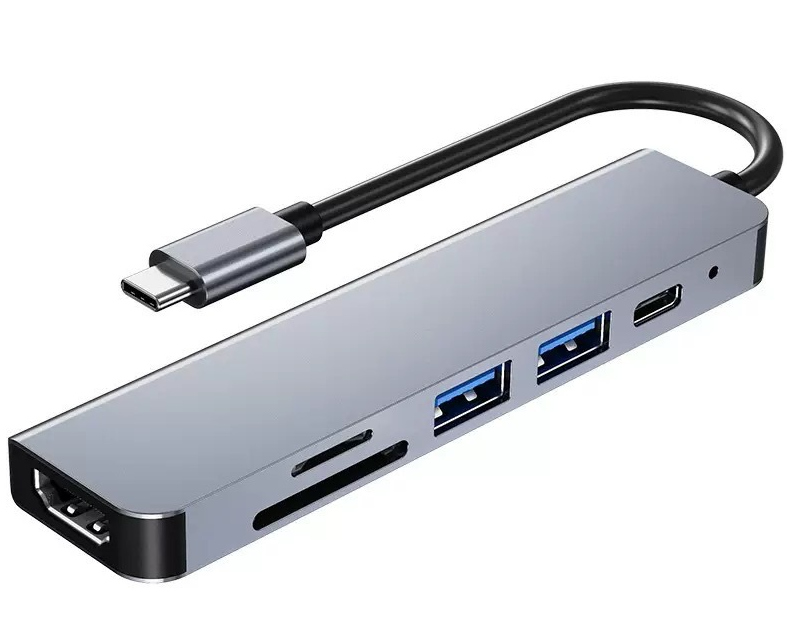

CV-T-25
Type-C to HDMI+USB3.0+USB2.0+SD+TF+PD — export-ready Hub Series program for AI PC bundle and distributor inquiry.
- Chip: CS5266+MA8601+GL823K
- HDMI resolution: 4K @ 30HZ
- USB3.0: Up to 10 Gbps, 900 mA output
- USB2.0: Up to 480 Mbps, 500 mA output
- Card reader: SD/TF cards, one slot active at a time
- Charging: PD 2.0 charging, up to 100 W (20 V, 5 A) fast charge
- Housing: Aluminum alloy
- Color: Gray
- Cable spec: Multi-layer shielded cable
- Type-C connector: Nickel-plated
- Supplier program: Hub Series

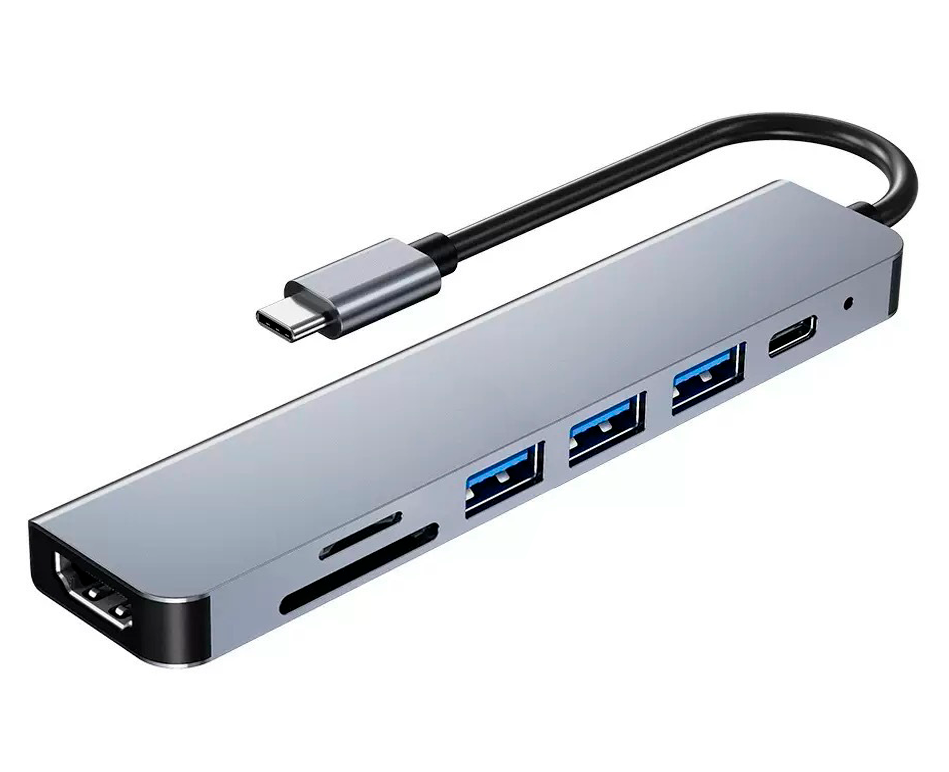

CV-T-26A
Type-C to HDMI+USB3.0+USB2.0*2+SD+TF+PD — export-ready Hub Series program for AI PC bundle and distributor inquiry.
- Chip: CS5266+MA8601+GL823K
- HDMI resolution: 4K @ 30HZ
- USB3.0: Up to 10 Gbps, 900 mA output
- USB2.0: Up to 480 Mbps, 500 mA output
- Card reader: SD/TF cards, one slot active at a time
- Charging: PD 2.0 charging, up to 100 W (20 V, 5 A) fast charge
- Housing: Aluminum alloy
- Color: Gray
- Cable spec: Multi-layer shielded cable
- Type-C connector: Nickel-plated
- Supplier program: Hub Series

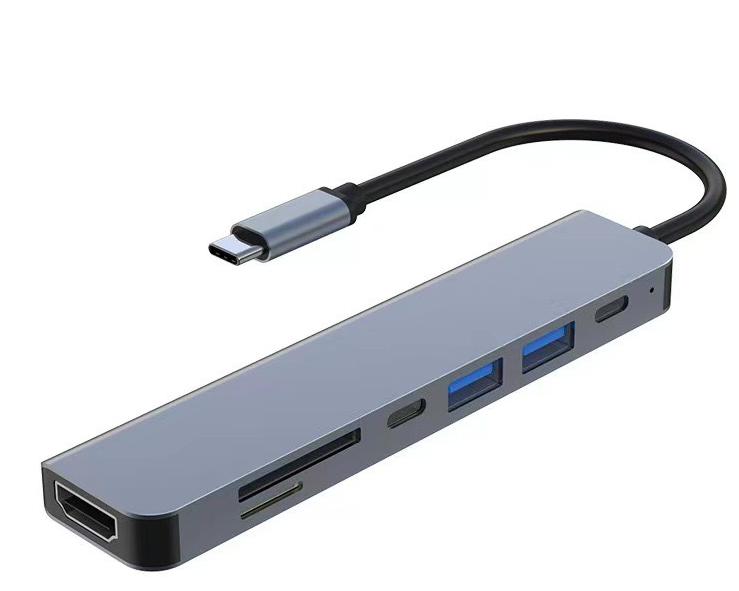

CV-T-26C
Type-C to HDMI+USB3.0+USB2.0+TYPE C2.0+SD+TF+PD — export-ready Hub Series program for AI PC bundle and distributor inquiry.
- Chip: CS5266+MA8601+GL823K
- HDMI resolution: 4K @ 30HZ
- USB3.0: Up to 10 Gbps, 900 mA output
- USB2.0: Up to 480 Mbps, 500 mA output
- Card reader: SD/TF cards, one slot active at a time
- Charging: PD 2.0 charging, up to 100 W (20 V, 5 A) fast charge
- Housing: Aluminum alloy
- Color: Gray
- Cable spec: Multi-layer shielded cable
- Type-C connector: Nickel-plated
- Supplier program: Hub Series

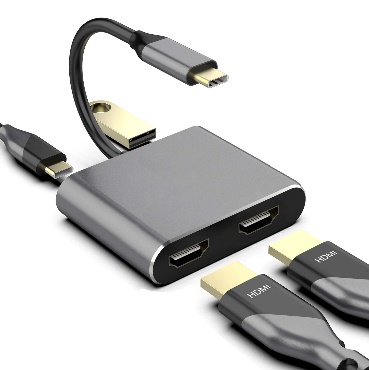

CV-T-27
Type-C to HDMI*2+USB3.0+PD — Interface: Type-C · HDMI · Dimensions: 150x62x15.5mm · Net weight: 38g.
- Chip: TL8712EXI
- Color: Black · Silver · Space gray
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C
CV-T-28
Type-C to HDMI+USB3.0*3+PD — Interface: Type-C · HDMI · USB · Dimensions: 290x41.3x17.2mm · Net weight: 65g.
- Chip: AG9311+GL3510
- HDMI resolution: 4K @ 30HZ
- USB3.0: Up to 5 Gbps, 1 A output
- Charging: PD 2.0 charging, up to 100 W (20 V, 5 A) fast charge
- Color: Space gray · Silver
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

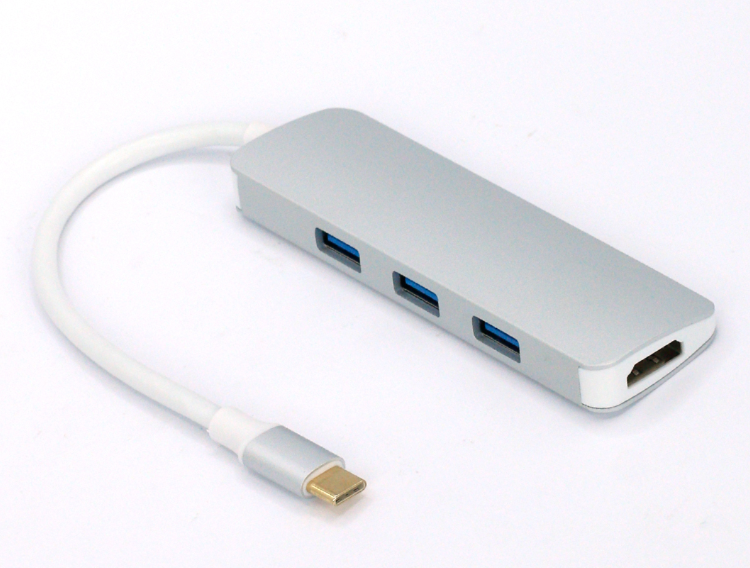

CV-T-32
Type-C to HDMI+USB3.0*3 — export-ready Hub Series program for AI PC bundle and distributor inquiry.
- Chip: AG9310+GL3510
- HDMI resolution: 4K @ 30HZ
- USB3.0: Up to 5 Gbps, 1 A output
- Housing: Aluminum alloy
- Color: Silver
- Cable spec: Multi-layer shielded cable
- USB 3.0 variant: 173*75*16.5mm
- Supplier program: Hub Series
- Source sheet: Type-C

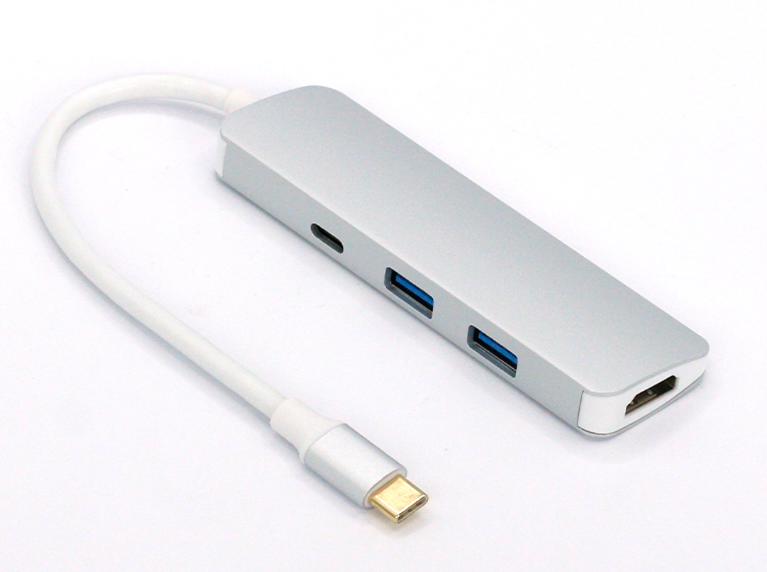

CV-T-33
Type-C to HDMI+PD+USB3.0*2 — export-ready Hub Series program for AI PC bundle and distributor inquiry.
- Chip: 2. HDMI resolution: 4K @ 30HZ
- USB3.0: Up to 5 Gbps, 1 A output
- Charging: PD 2.0 charging, up to 100 W (20 V, 5 A) fast charge
- Housing: Aluminum alloy
- Color: Silver
- Cable spec: Multi-layer shielded cable
- USB 3.0 variant: 173*75*16.5mm
- Supplier program: Hub Series
- Source sheet: Type-C

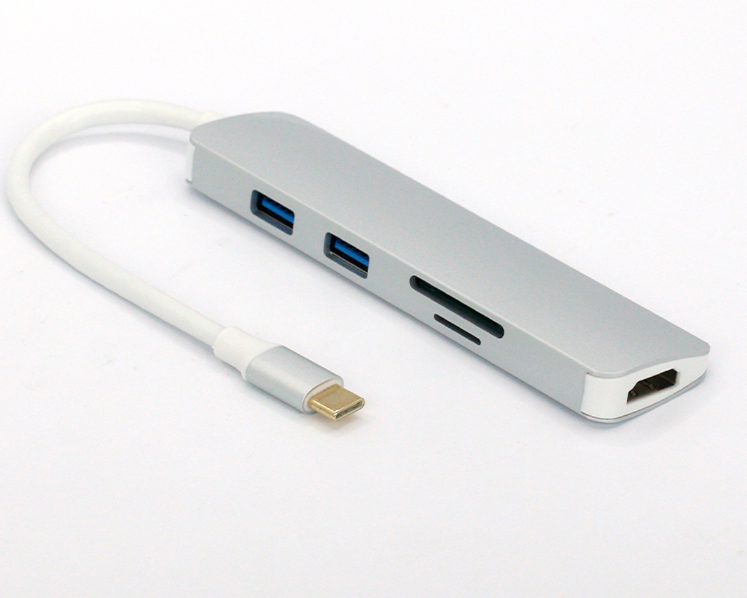

CV-T-34
Type-C to HDMI+USB3.0*2+TF+SD — export-ready Hub Series program for AI PC bundle and distributor inquiry.
- Chip: AG9310+GL3510+RTS5306
- HDMI resolution: 4K @ 30HZ
- USB3.0: Up to 5 Gbps, 1 A output
- Card reader: USB 3.0 SD/TF dual-slot read
- Housing: Aluminum alloy
- Color: Silver
- Cable spec: Multi-layer shielded cable
- USB 3.0 variant: 173*75*16.5mm
- Supplier program: Hub Series
- Source sheet: Type-C

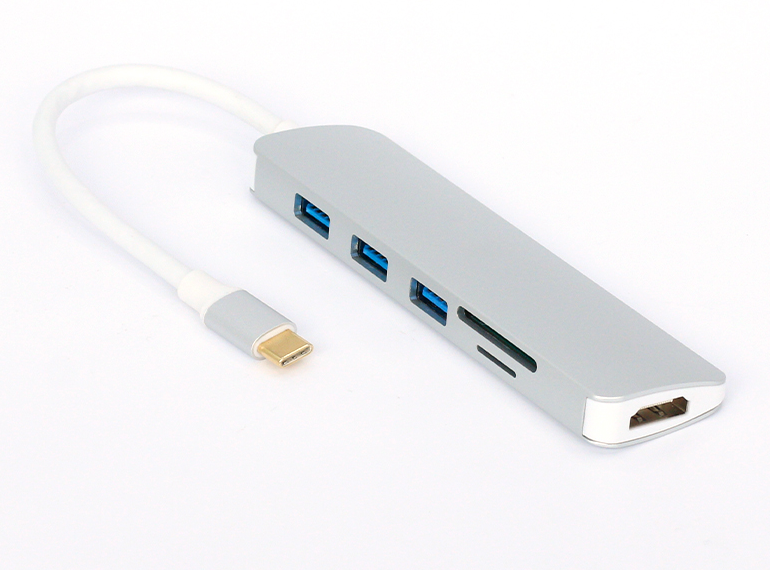

CV-T-35
Type-C to HDMI+USB3.0*3+TF+SD — export-ready Hub Series program for AI PC bundle and distributor inquiry.
- Chip: AG9310+GL3510+RTS5306
- HDMI resolution: 4K @ 30HZ
- USB3.0: Up to 5 Gbps, 1 A output
- Card reader: USB 3.0 SD/TF dual-slot read
- Housing: Aluminum alloy
- Color: Silver
- Cable spec: Multi-layer shielded cable
- USB 3.0 variant: 173*75*16.5mm
- Supplier program: Hub Series
- Source sheet: Type-C

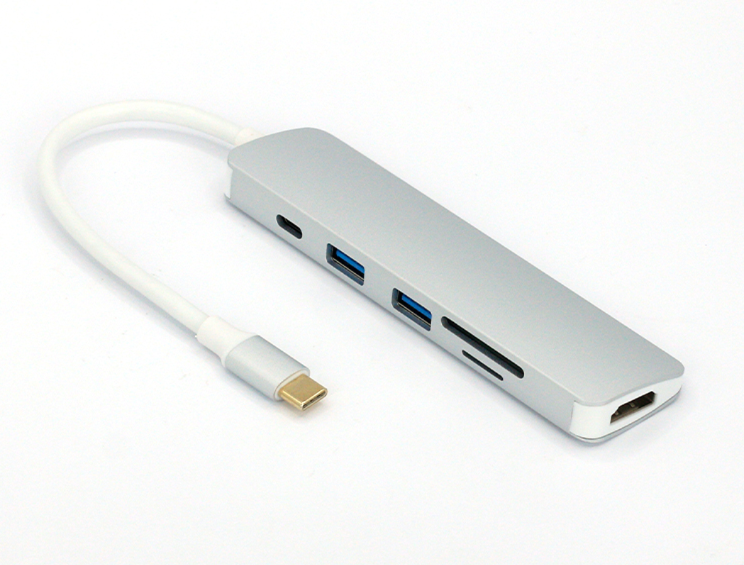

CV-T-36
Type-C to HDMI+PD+USB3.0*2+TF+SD — export-ready Hub Series program for AI PC bundle and distributor inquiry.
- Chip: AG9311+GL3510+RTS5306
- HDMI resolution: 4K @ 30HZ
- USB3.0: Up to 5 Gbps, 1 A output
- Card reader: USB 3.0 SD/TF dual-slot read
- Charging: PD 2.0 charging, up to 100 W (20 V, 5 A) fast charge
- Housing: Aluminum alloy
- Color: Silver
- Cable spec: Multi-layer shielded cable
- USB 3.0 variant: 173*75*16.5mm
- Supplier program: Hub Series
- Source sheet: Type-C

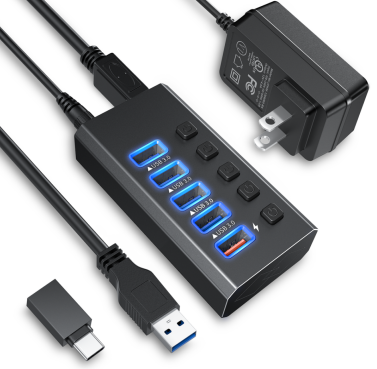

CV-T-37
USB 5-port hub — Dimensions: 100*50*24mm · Net weight: 110 g net · 353 g with packaging and accessories · Material: Aluminum alloy + ABS.
- Chip: GL3510
- QC port ×1: 5 V × 2.4 A (charge only, no data)
- USB3.0*4: Up to 5 Gbps
- Color: Space gray · Black
- Accessories: 5 V / 3 A power adapter (CN plug, GS/CE) · 1 m USB-A to USB-B cable
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

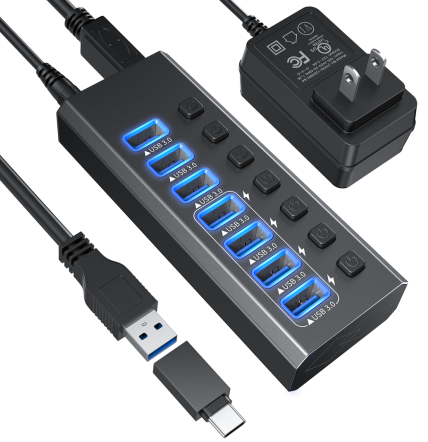

CV-T-38A
USB 7-port hub (5 Gbps) — Dimensions: 125*50*24mm · Net weight: 142 g net · 382 g with packaging and accessories · Material: Aluminum alloy + ABS.
- Chip: GL3510
- QC port ×4: 5 V × 2.4 A
- USB3.0*7: Up to 5 Gbps
- Color: Space gray · Black
- Accessories: 12 V / 2 A power adapter (CN plug, GS/CCC) · 1 m USB-A to USB-B cable
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

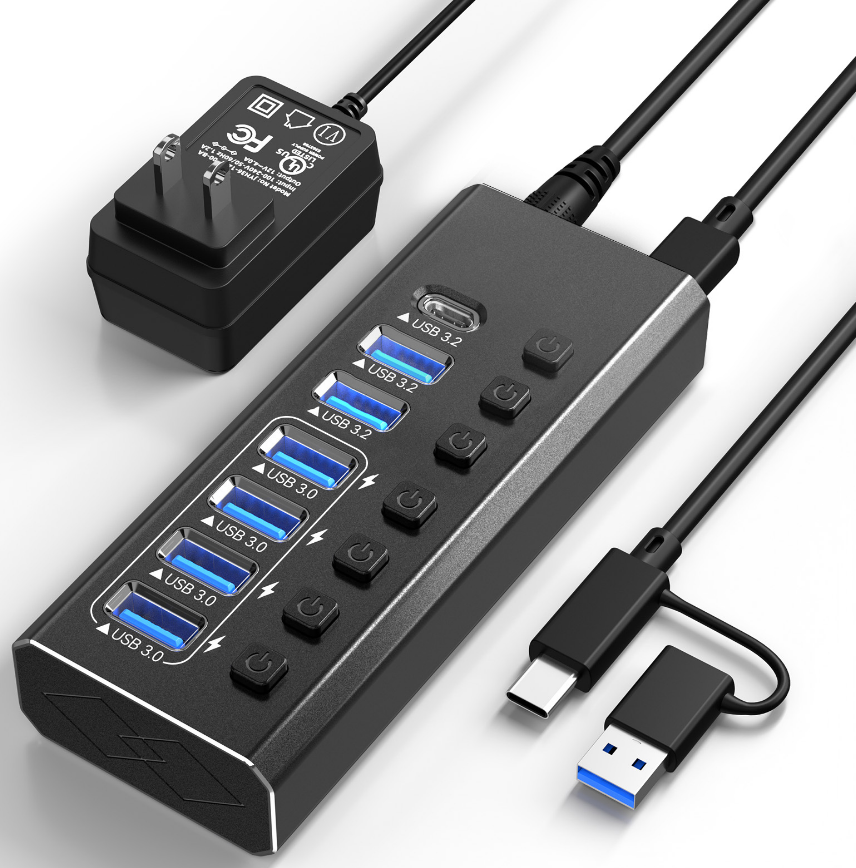

CV-T-38C
USB 7-port hub (10 Gbps) — Dimensions: 125*50*24mm · Net weight: 142 g net · 382 g with packaging and accessories · Material: Aluminum alloy + ABS.
- Chip: GL3510+GL3590
- QC port ×4: 5 V × 2.4 A
- USB3.2*3: Up to 10 Gbps
- USB3.0*4: Up to 5 Gbps
- Color: Space gray · Black
- Accessories: 12 V / 2 A power adapter (CN plug, GS/CCC) · 1 m USB-A to USB-B cable
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

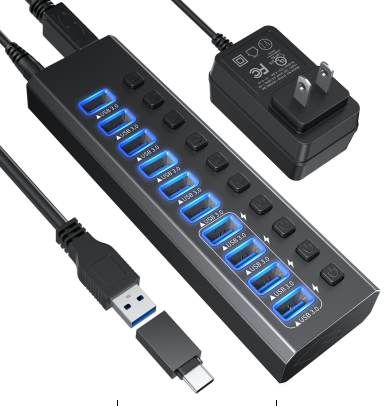

CV-T-39A
USB 10-port hub — Dimensions: 165*50.5*24mm · Net weight: 187 g net · 485 g with packaging and accessories · Material: Aluminum alloy + ABS.
- Chip: GL3510
- QC port ×4: 5 V × 2.4 A
- USB3.0*10: Up to 5 Gbps
- Color: Space gray · Black
- Accessories: 12 V / 4 A power adapter (CN plug, GS/CCC) · 1 m USB-A to USB-B cable
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

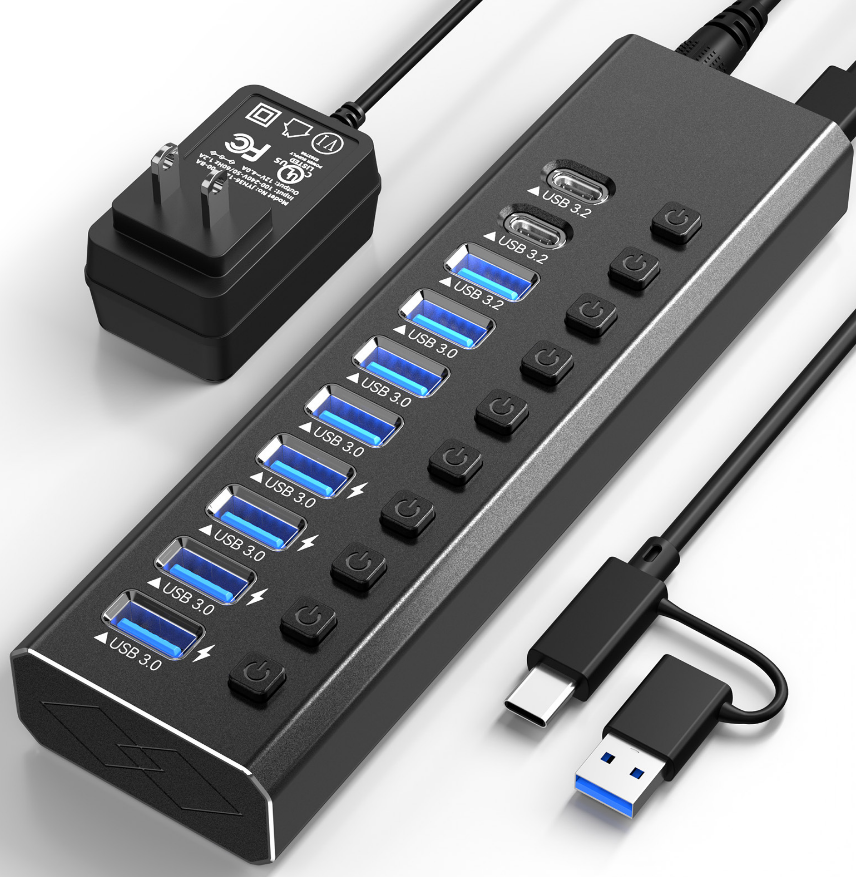

CV-T-39C
USB 10-port hub — Dimensions: 165*50.5*24mm · Net weight: 187 g net · 485 g with packaging and accessories · Material: Aluminum alloy + ABS.
- Chip: GL3510+GL3590
- QC port ×4: 5 V × 2.4 A
- USB3.2*3: Up to 10 Gbps
- USB3.0*7: Up to 5 Gbps
- Color: Space gray · Black
- Accessories: 12 V / 4 A power adapter (CN plug, GS/CCC) · 1 m USB-A to USB-B cable
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

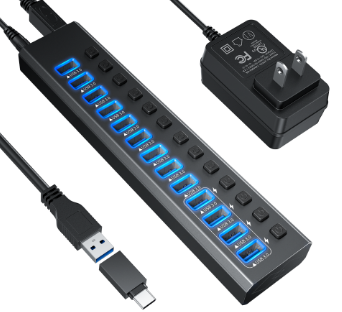

CV-T-40
USB 13-port hub — Dimensions: 210*50.5*24mm · Net weight: 224.8 g net · 780 g with packaging and accessories · Material: Aluminum alloy + ABS.
- Chip: RTL5411
- QC port ×4: 5 V × 2.4 A
- USB3.0*13: Up to 5 Gbps
- Color: Space gray · Black
- Accessories: 12 V / 7.5 A power adapter (CN plug, GS/CCC) · 1 m USB-A to USB-B cable
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C

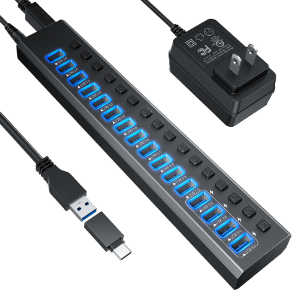

CV-T-41
USB 16-port hub — Dimensions: 250*50.5*24mm · Net weight: 270 g net · 830 g with packaging and accessories · Material: Aluminum alloy + ABS.
- Chip: RTL5411
- QC port ×4: 5 V × 2.4 A
- USB3.0*16: Up to 5 Gbps
- Color: Space gray · Black
- Accessories: 12 V / 7.5 A power adapter (CN plug, GS/CCC) · 1 m USB-A to USB-B cable
- MOQ: 1000
- Supplier program: Hub Series
- Source sheet: Type-C
Hub Series dock catalog below — port map, PD wattage, and packaging confirmed on inquiry.
