Air Cooling Solutions

High static-pressure fans, auxiliary rack airflow, and integrated heatsink modules for GPU trays, switch enclosures, and mixed-load AI racks.

2.AI server high-static-pressure fans

Server PWM axial fans

4-pin PWM axial fans in standard server tray sizes — double-ball bearing options for GPU, switch, and rack airflow modules.

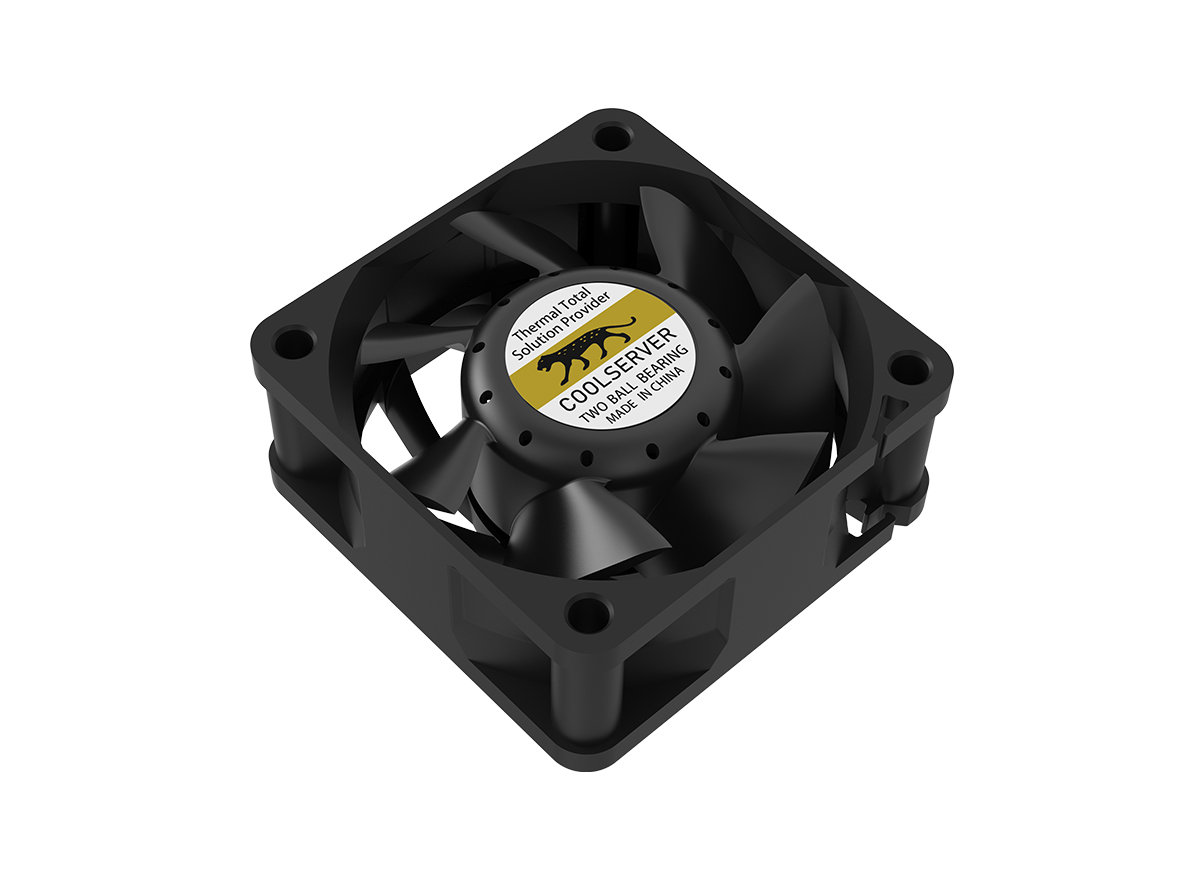

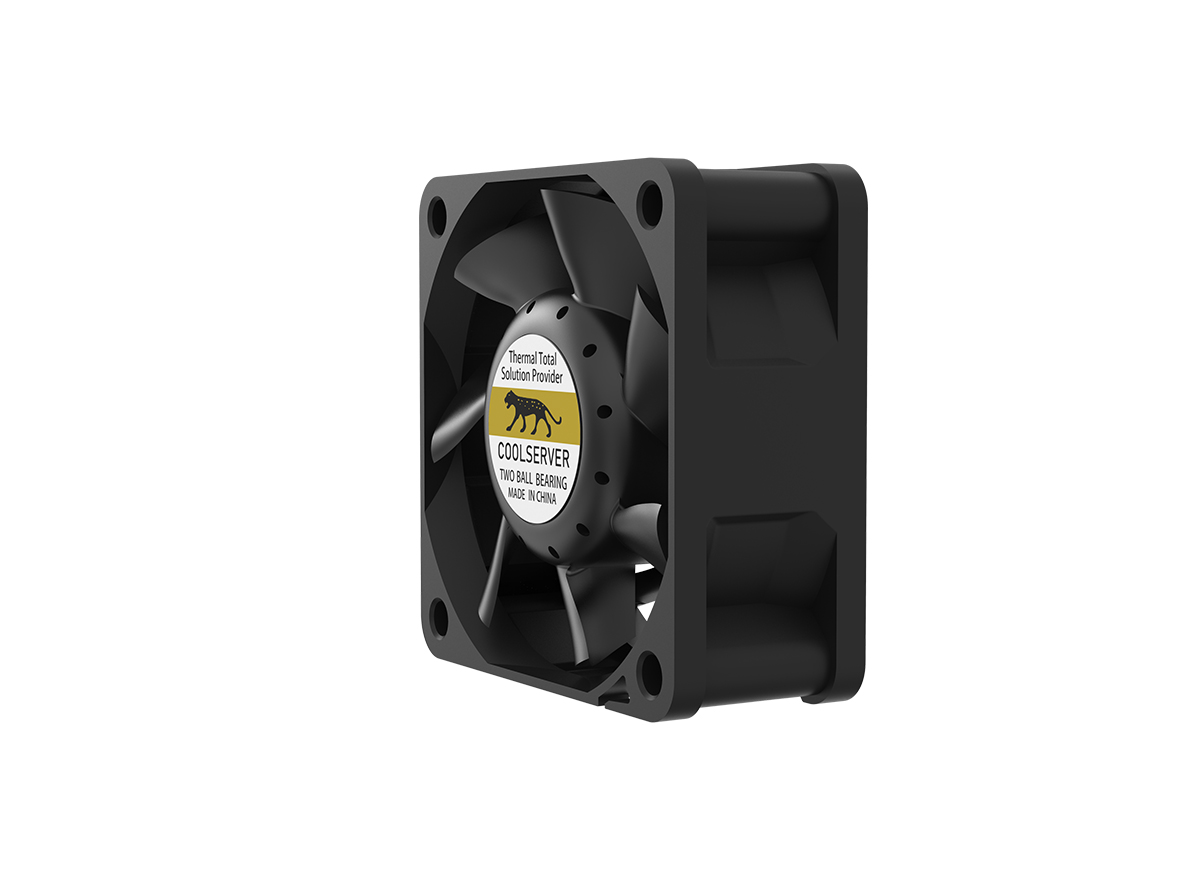

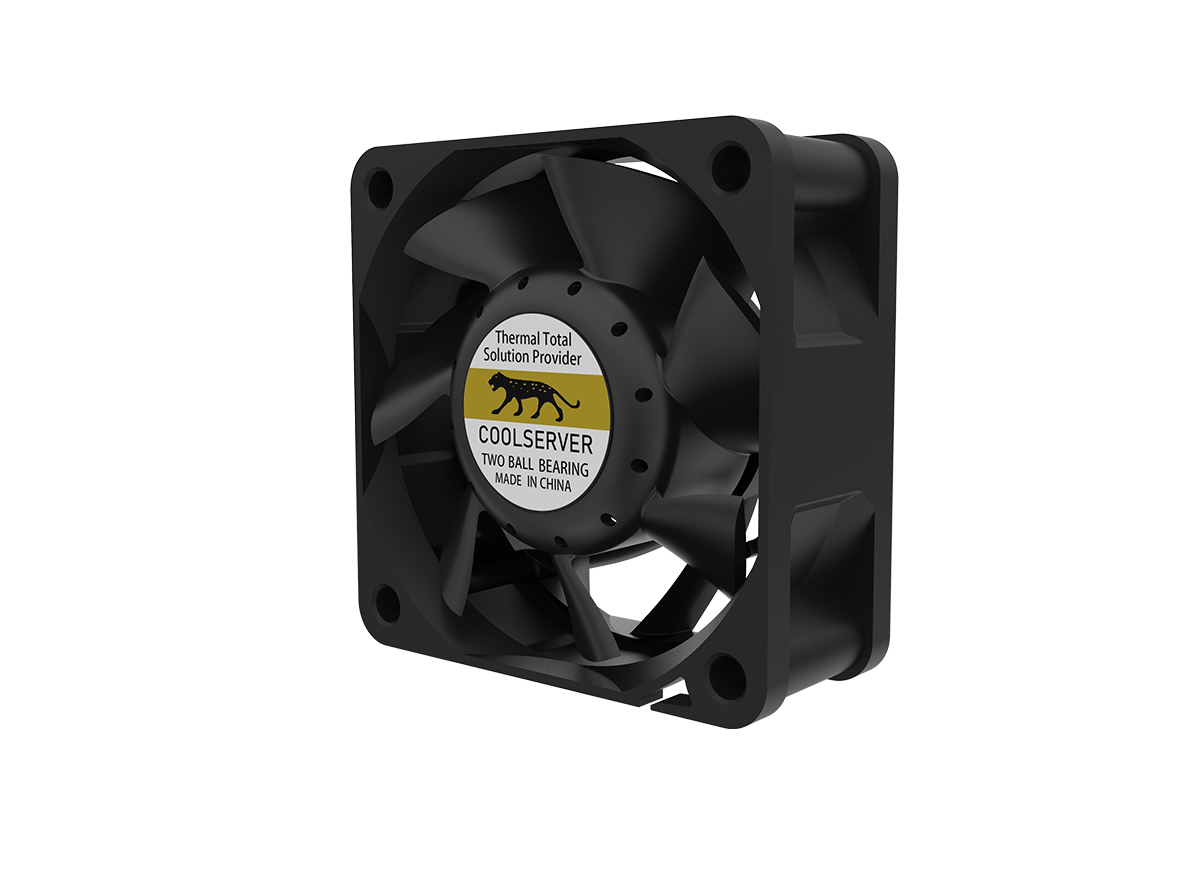

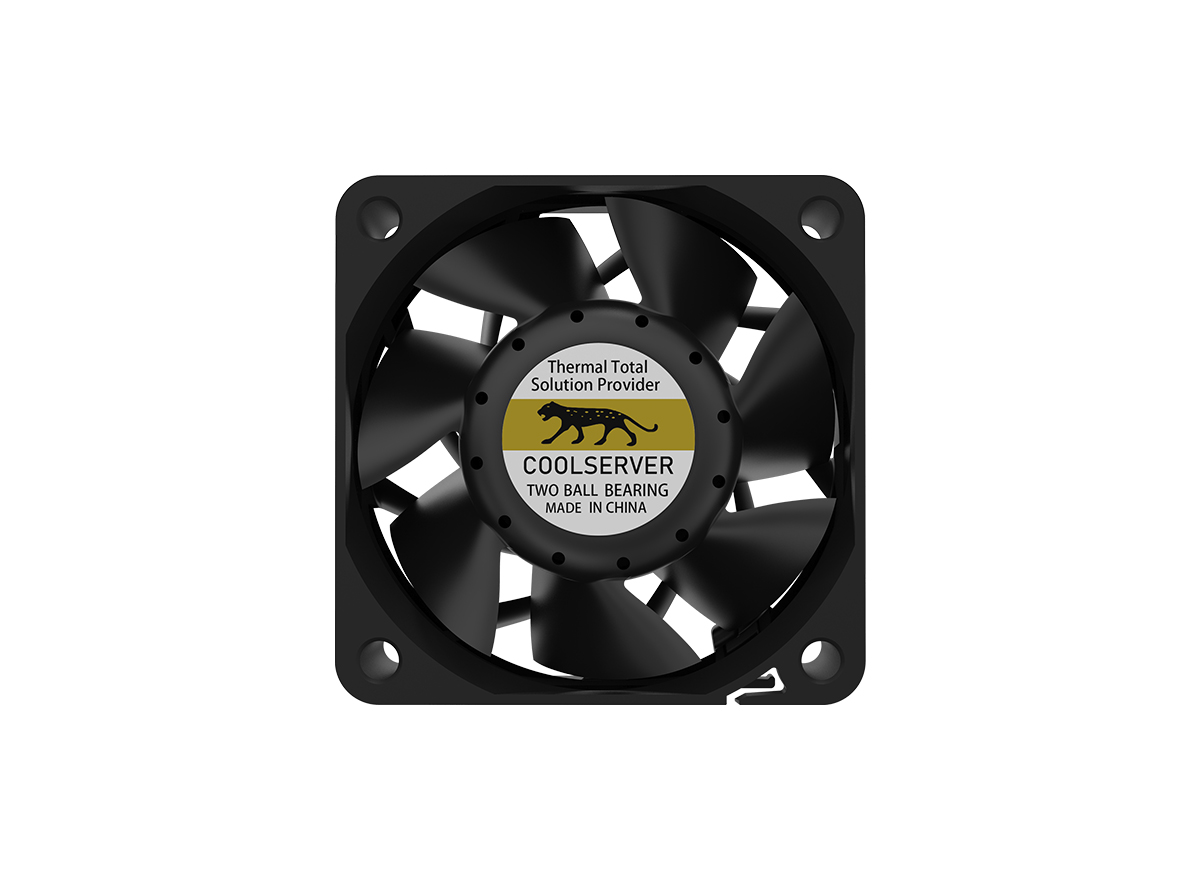

CS-6025

CS-6025 — PWM axial fan for server tray and accelerator airflow modules. Confirm voltage, connector, and cable length on inquiry.

• Fan size: 60mm * 60MM * 25MM
• Fan speed: PWM 2100-6800rpm
• Air volume: 34.50cfm (max)
• Custom bracket / TDP validation on inquiry
• Noise value: 52.00dba (max)
• Fan plug: 4Pin PWM
• Bearing type: double ball

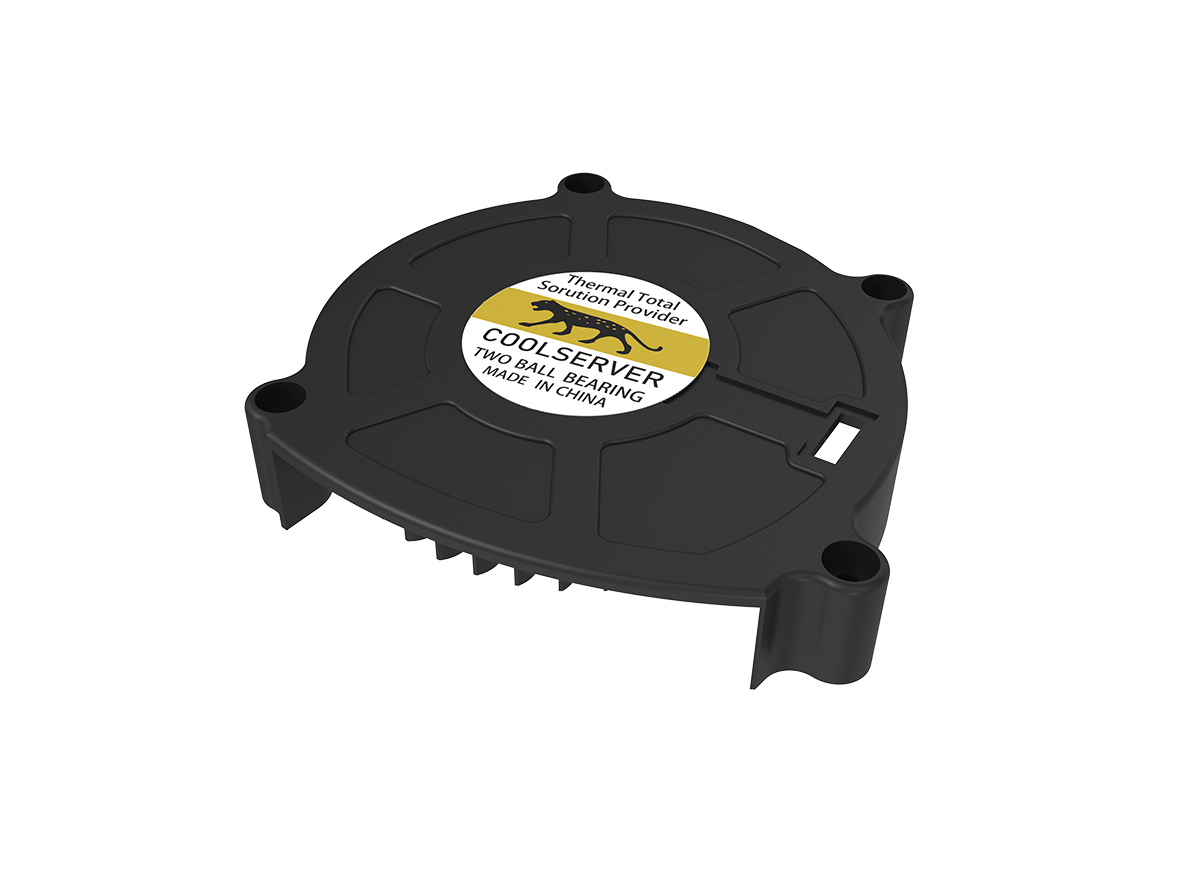

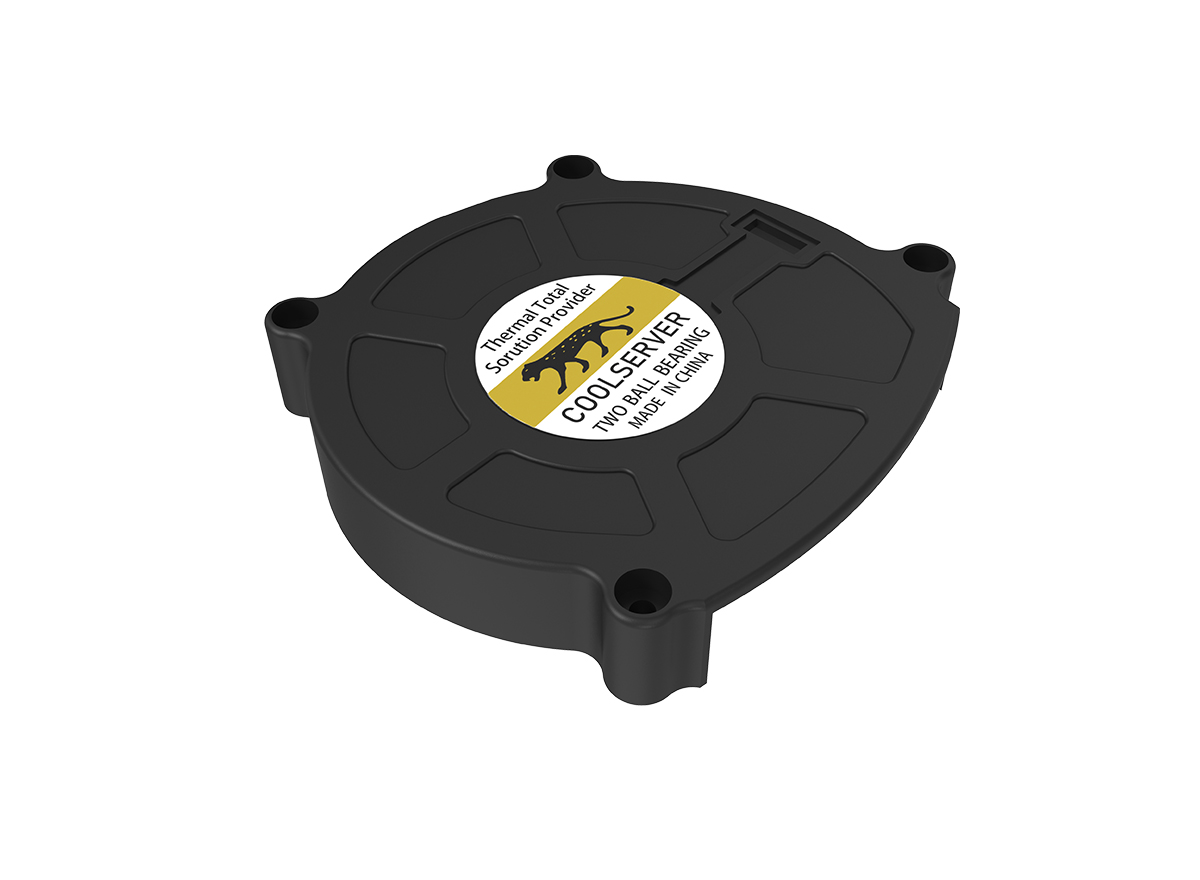

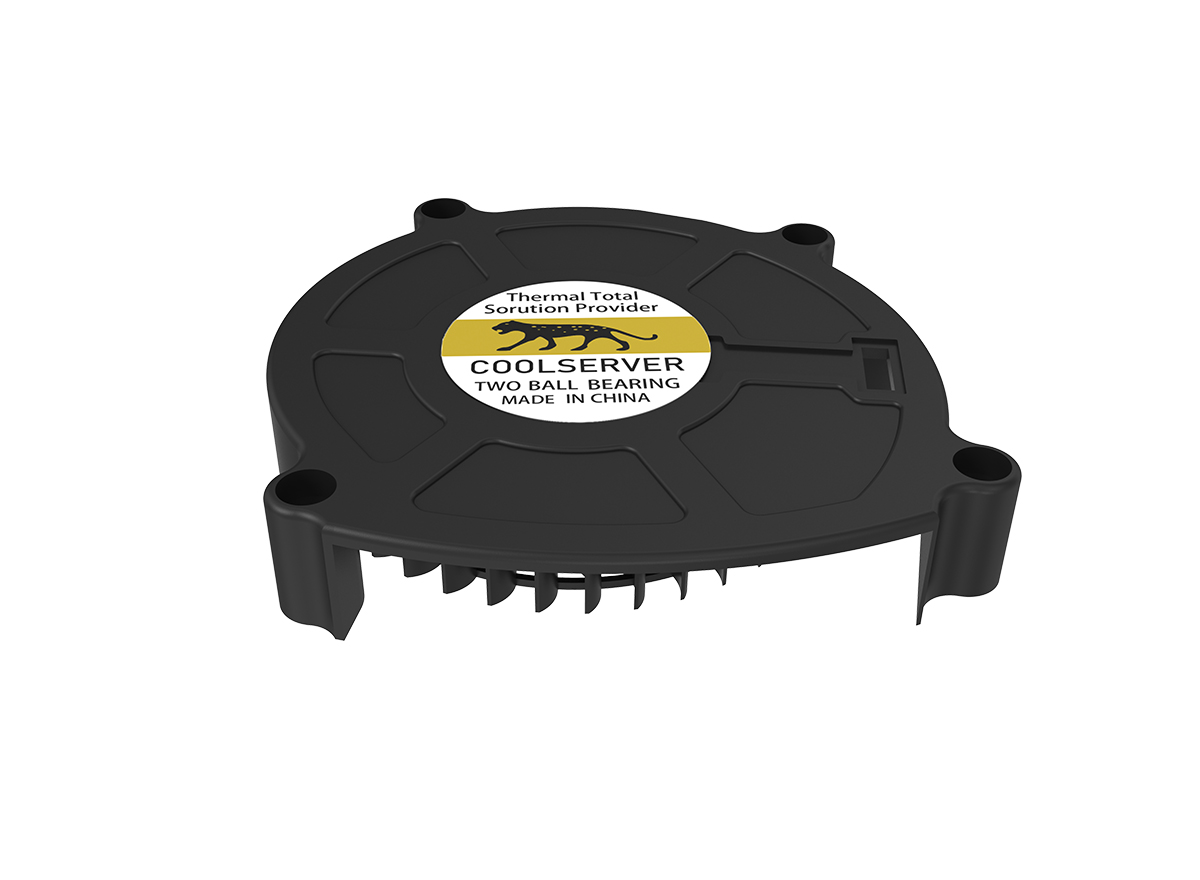

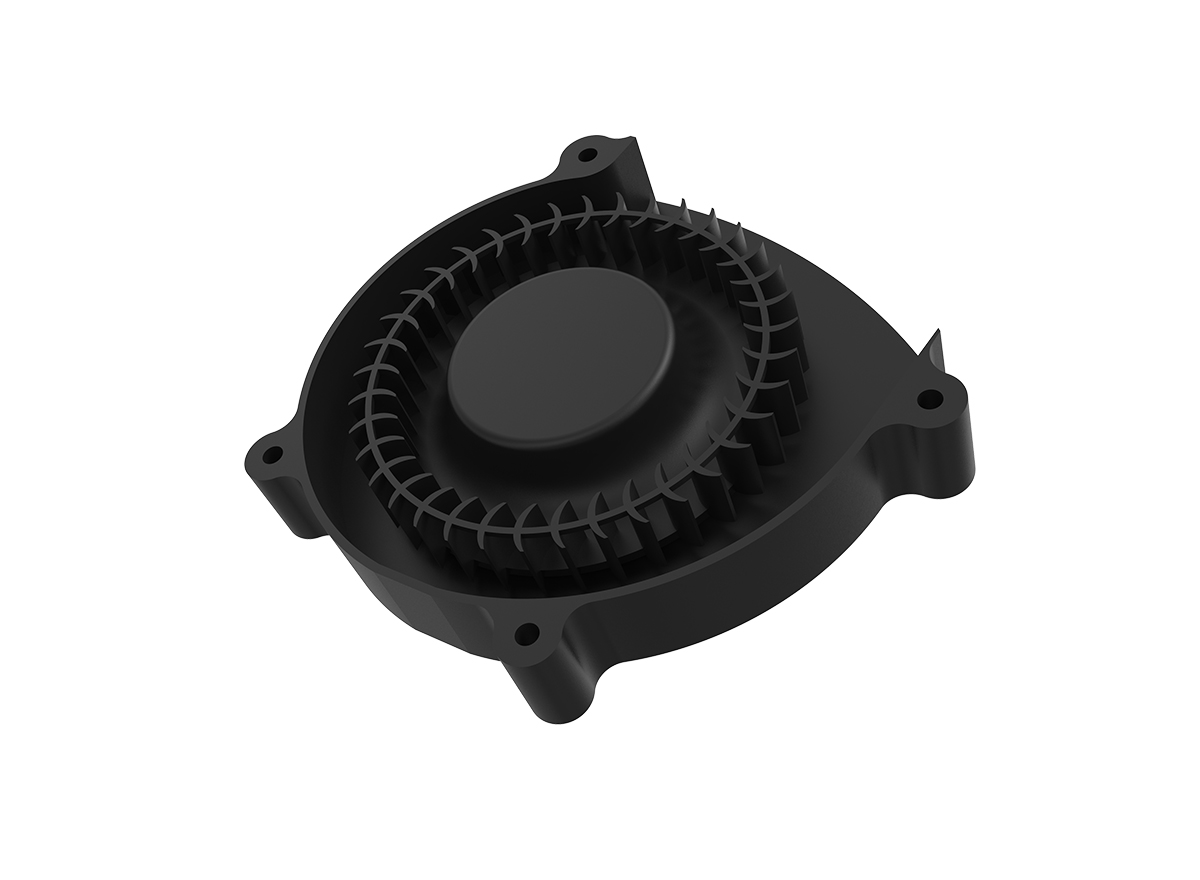

CS-8015

CS-8015 — PWM axial fan for server tray and accelerator airflow modules. Confirm voltage, connector, and cable length on inquiry.

• Fan size: 79mm * 77.5mm * 15mm
• Fan speed: PWM 1500-6600rpm
• Air volume: 21.35cfm (max)
• Custom bracket / TDP validation on inquiry
• Noise value: 64.00dba (max)
• Fan plug: 4Pin PWM
• Bearing type: double ball

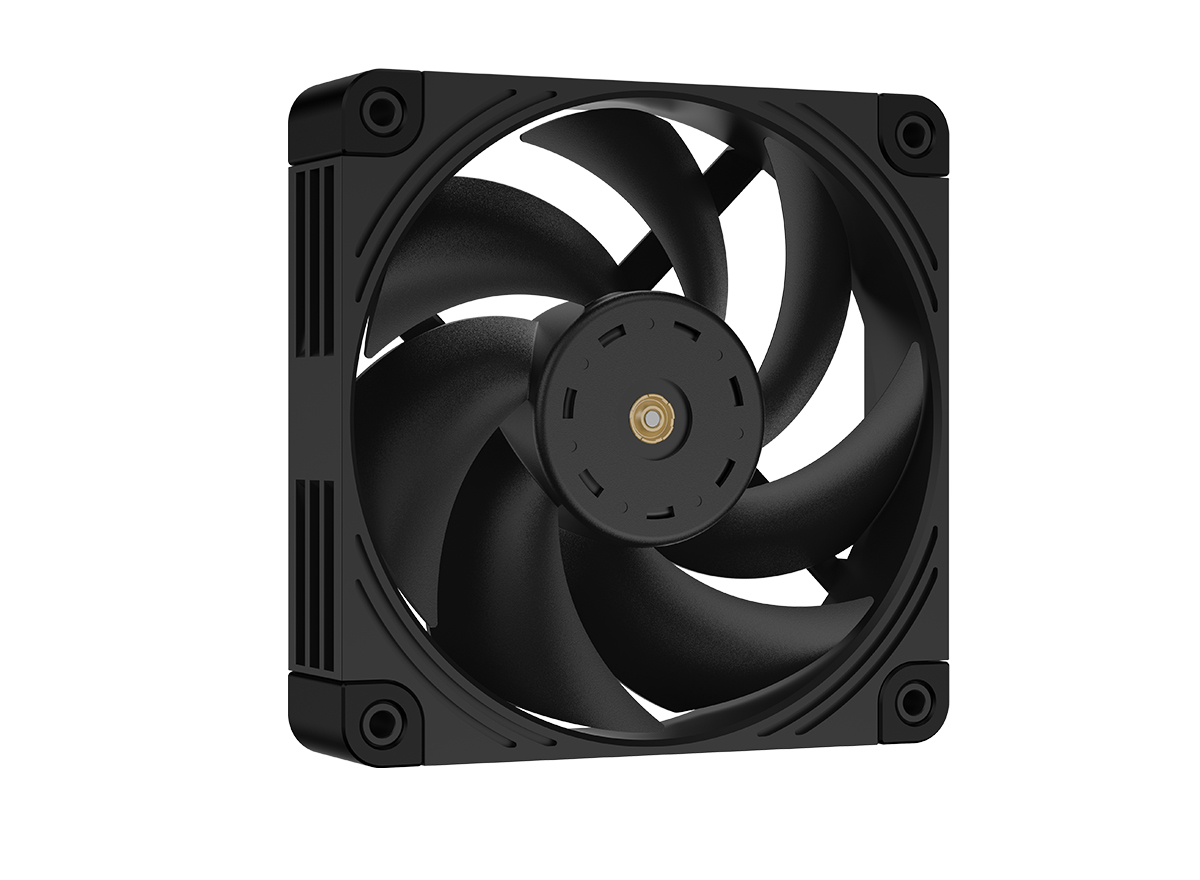

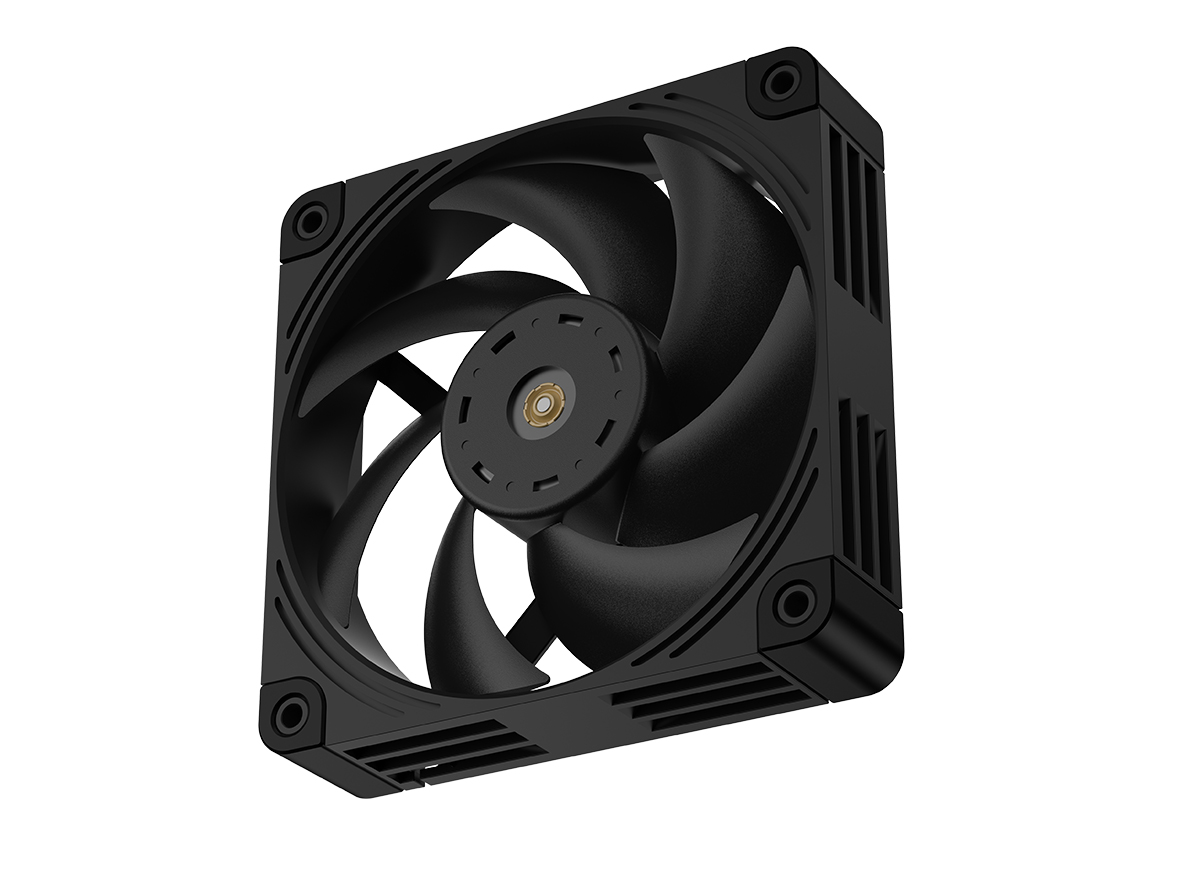

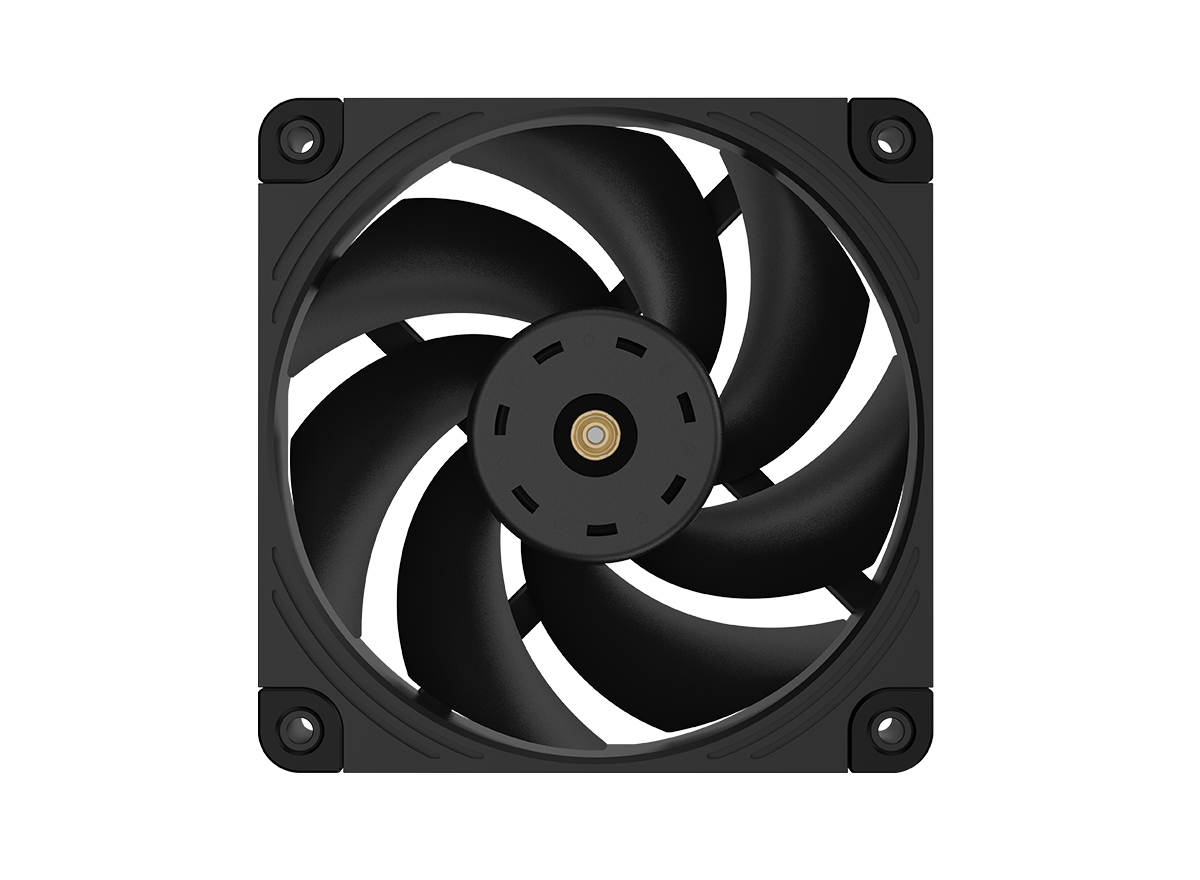

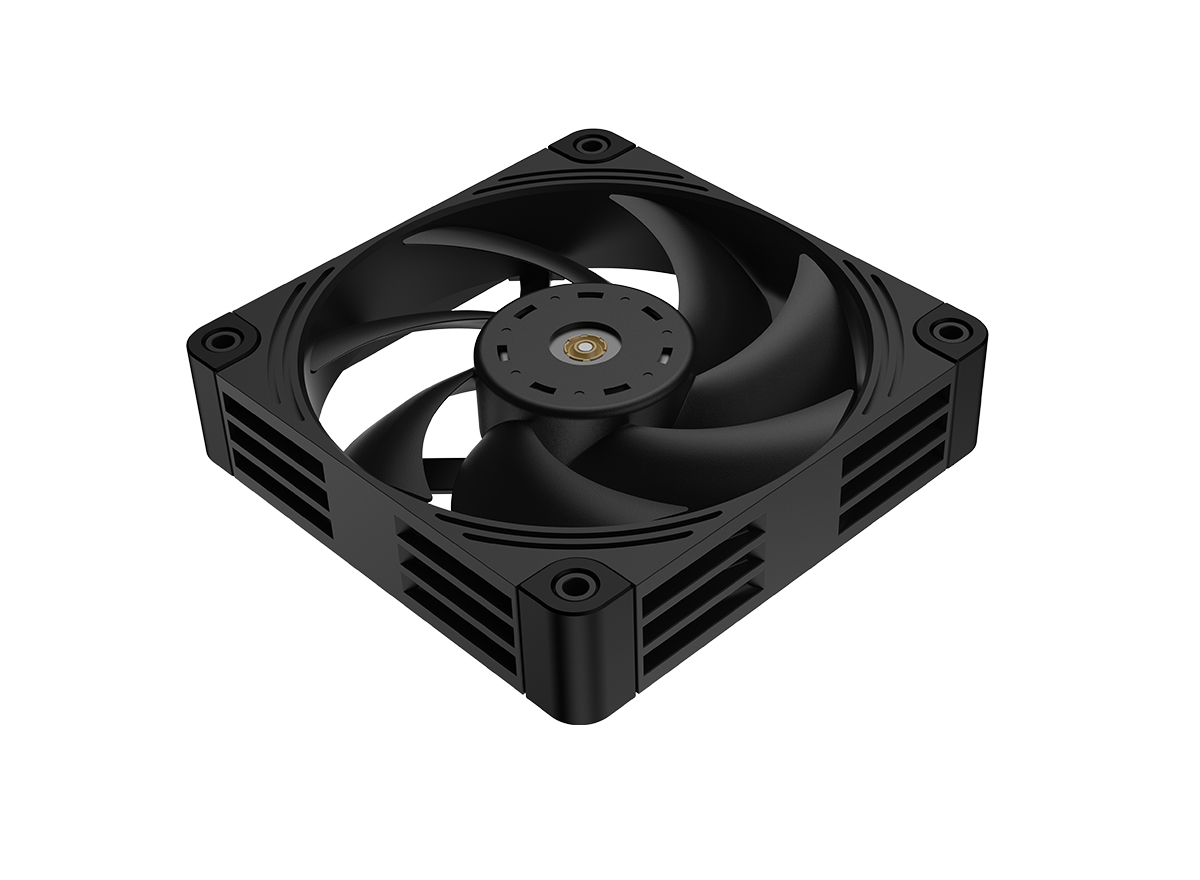

CS-12028

CS-12028 — PWM axial fan for server tray and accelerator airflow modules. Confirm voltage, connector, and cable length on inquiry.

• Fan size: 120mm * 120mm * 28MM
• Fan speed: PWM 1000-2200rpm
• Air volume: 72.68cfm (max)
• Custom bracket / TDP validation on inquiry
• Noise value: 36.00dba (max)
• Fan plug: 4Pin PWM
• Bearing type: double ball

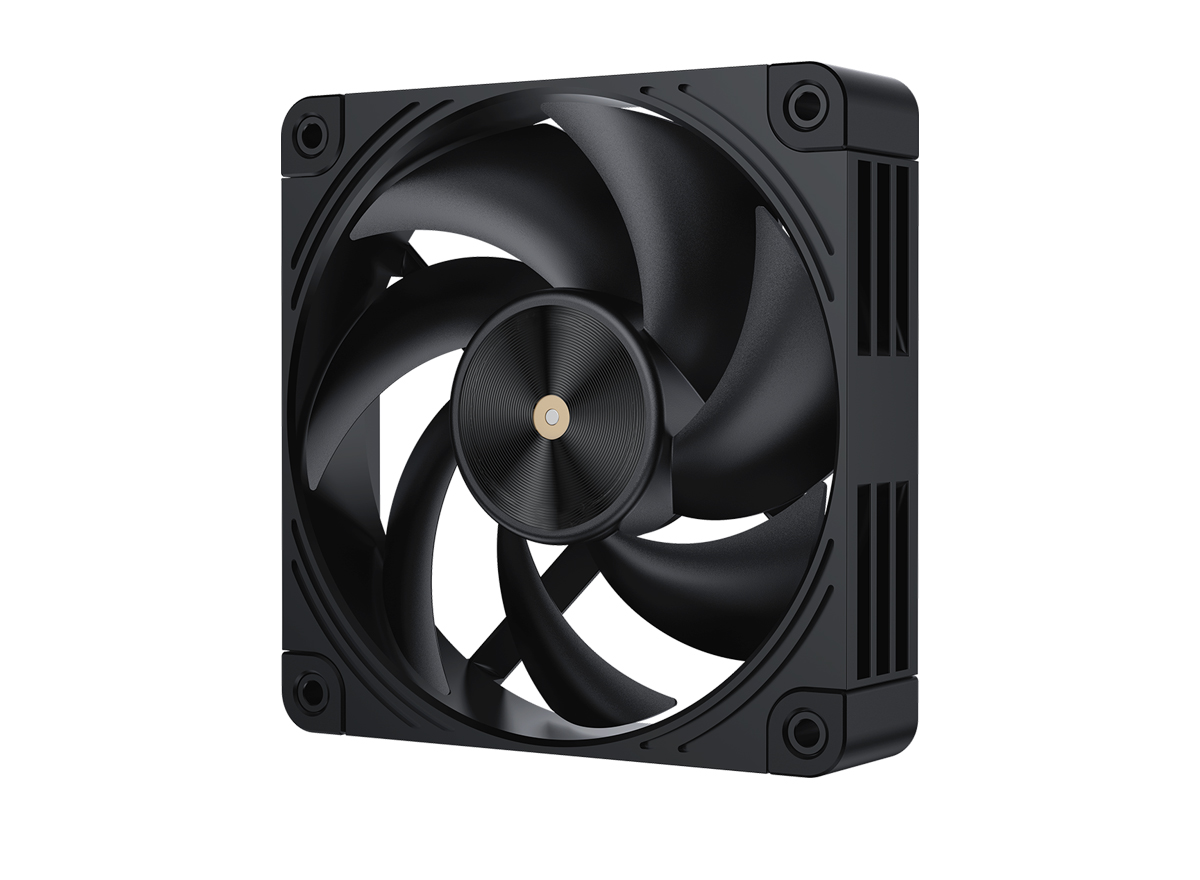

CS-N28-B15

CS-N28-B15 — PWM axial fan for server tray and accelerator airflow modules. Confirm voltage, connector, and cable length on inquiry.

• Fan dimensions: 120mm*120mm*28.5mm
• Fan speed: PWM 500-2600 RPM
• Airflow: 89.21 CFM (MAX)
• Custom bracket / TDP validation on inquiry
• Noise Level: 41.00 dBA (MAX)
• Fan connector: 4-pin PWM
• Types of bearings: Double ball bearings

3.Thermal / heatsink modules

Intel LGA4189 server heatsinks1U-class air and EVAC modules for Sapphire Rapids / Emerald Rapids SP server platforms.2 models

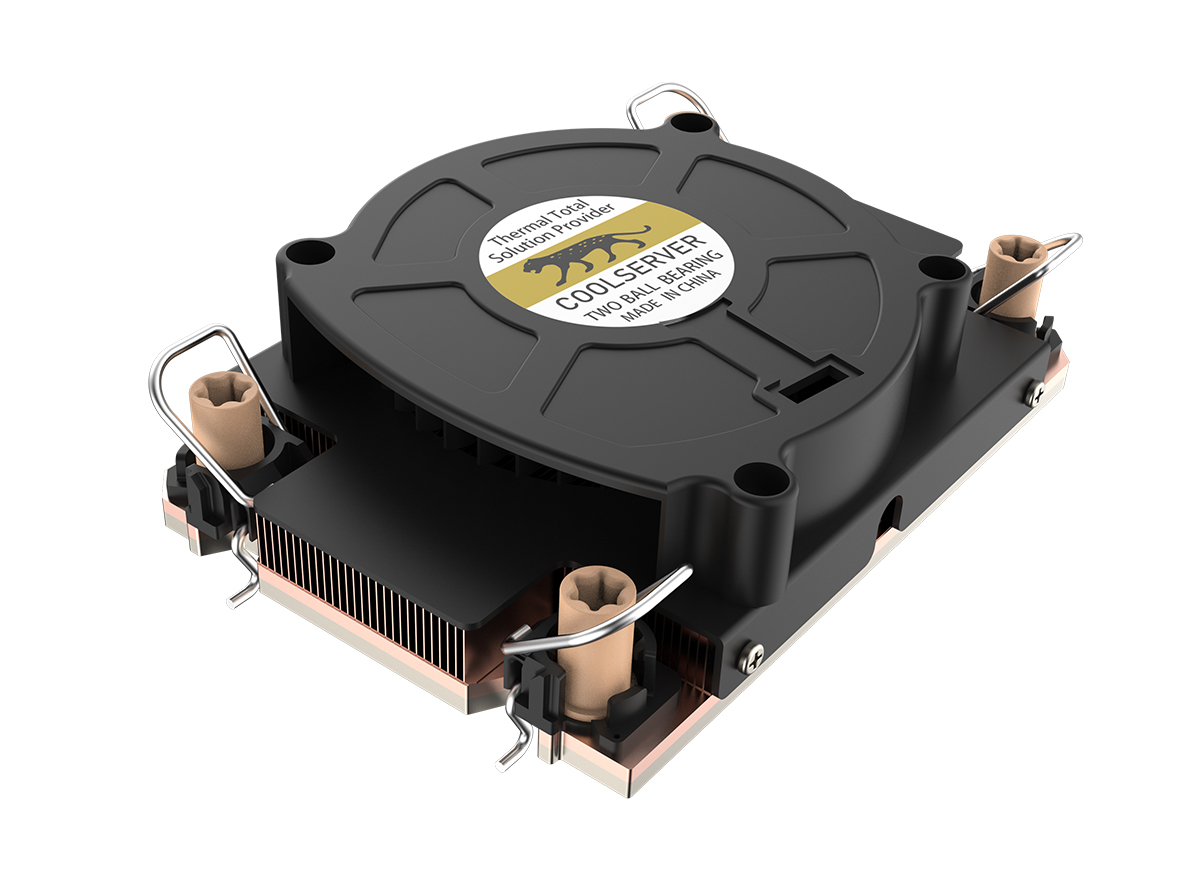

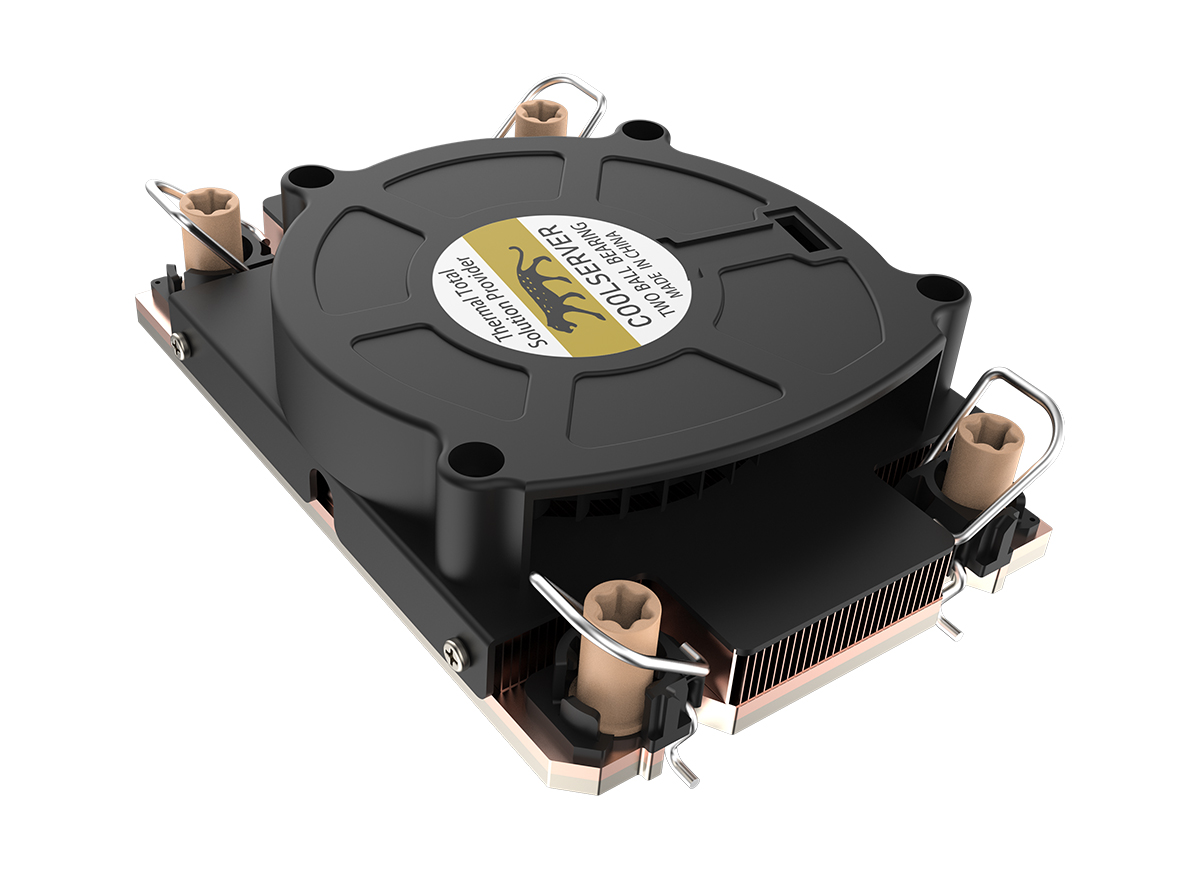

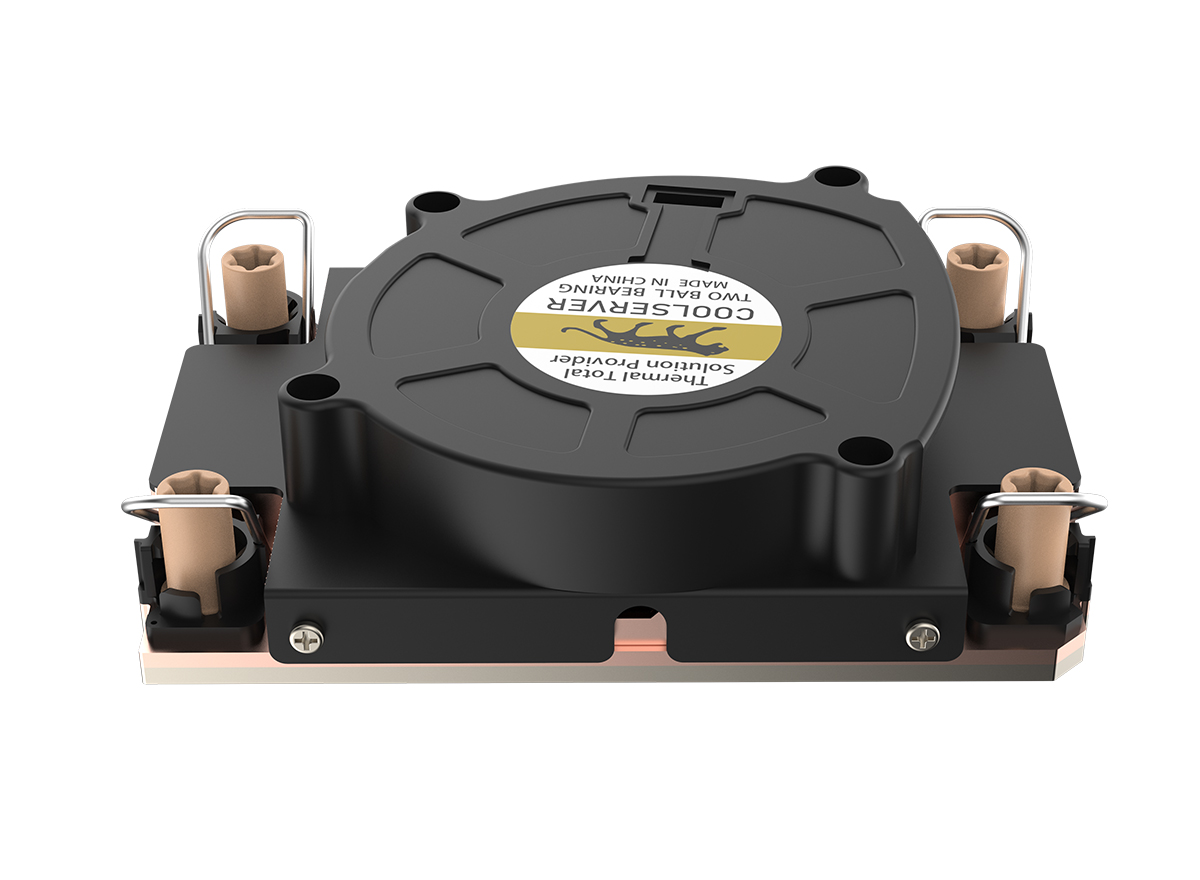

CS-4189-1UV75

CS-4189-1UV75 server thermal module for LGA4189 Voltage — 200W Material quality class Confirm mounting, TDP, and MOQ on inquiry.

• CPU type: LGA4189
• Fan speed: PWM 1500-6600RPM
• Air volume: 21.35CFM (MAX)
• Power consumption: 200W
• Voltage: 12V
• Product size: 113mm*80mm*28mm
• Noise value: 64.0dBA (MAX)
• Fan plug: 4pin PWM
• Bearing type: double ball
• Material quality: VC base + copper fins

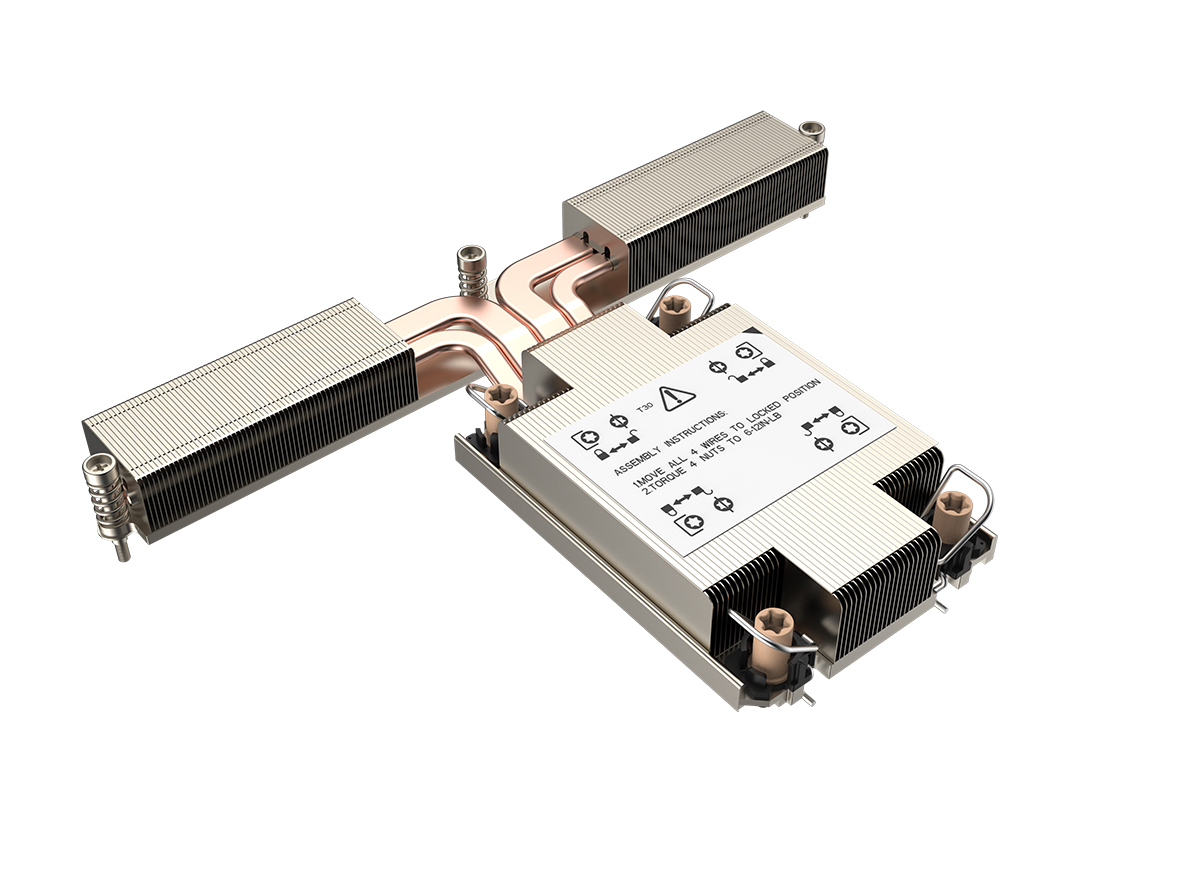

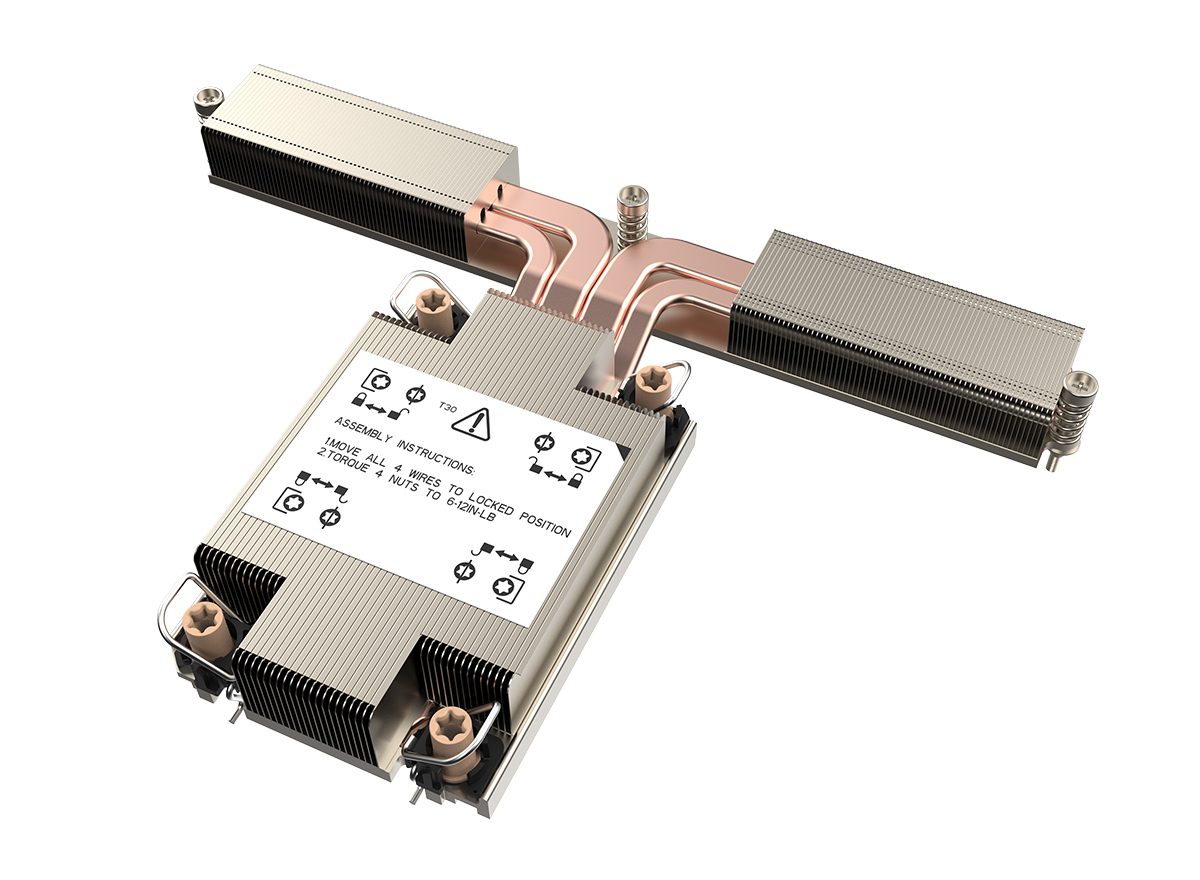

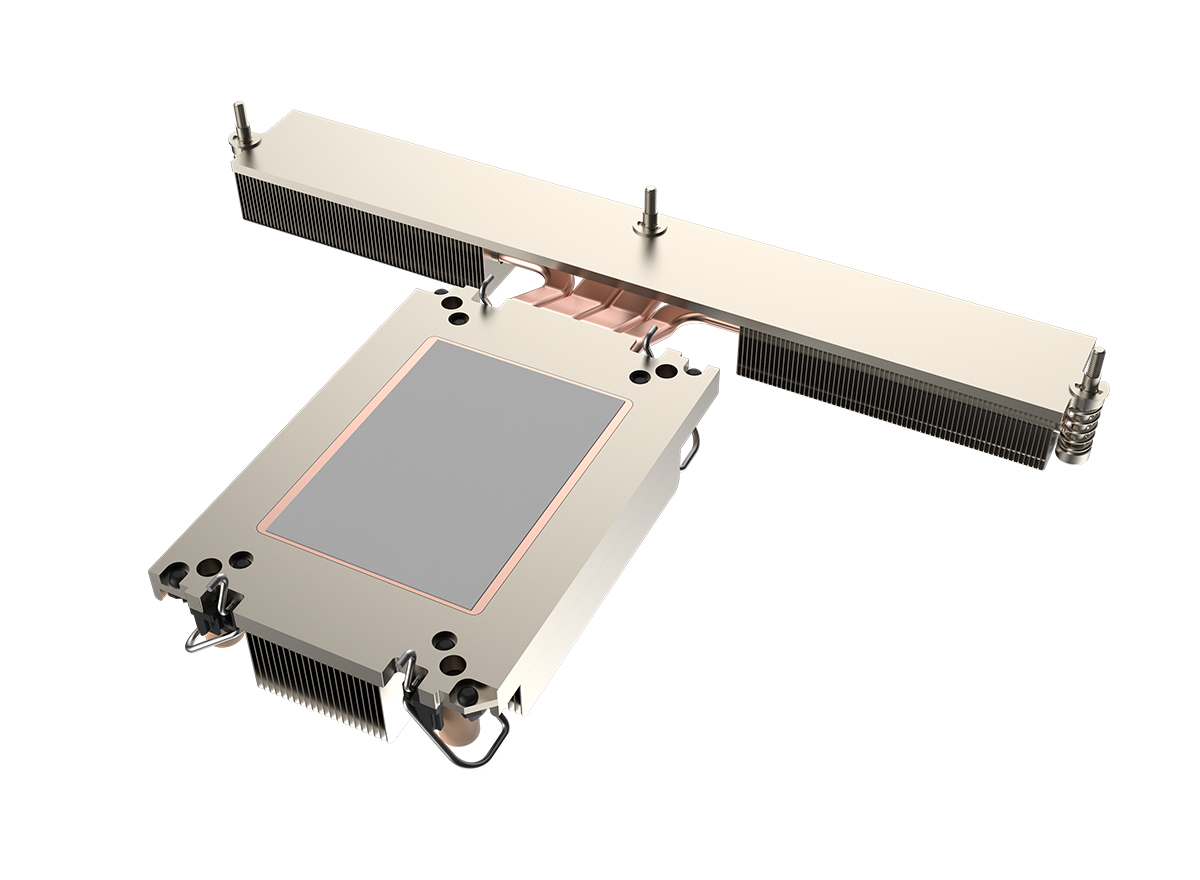

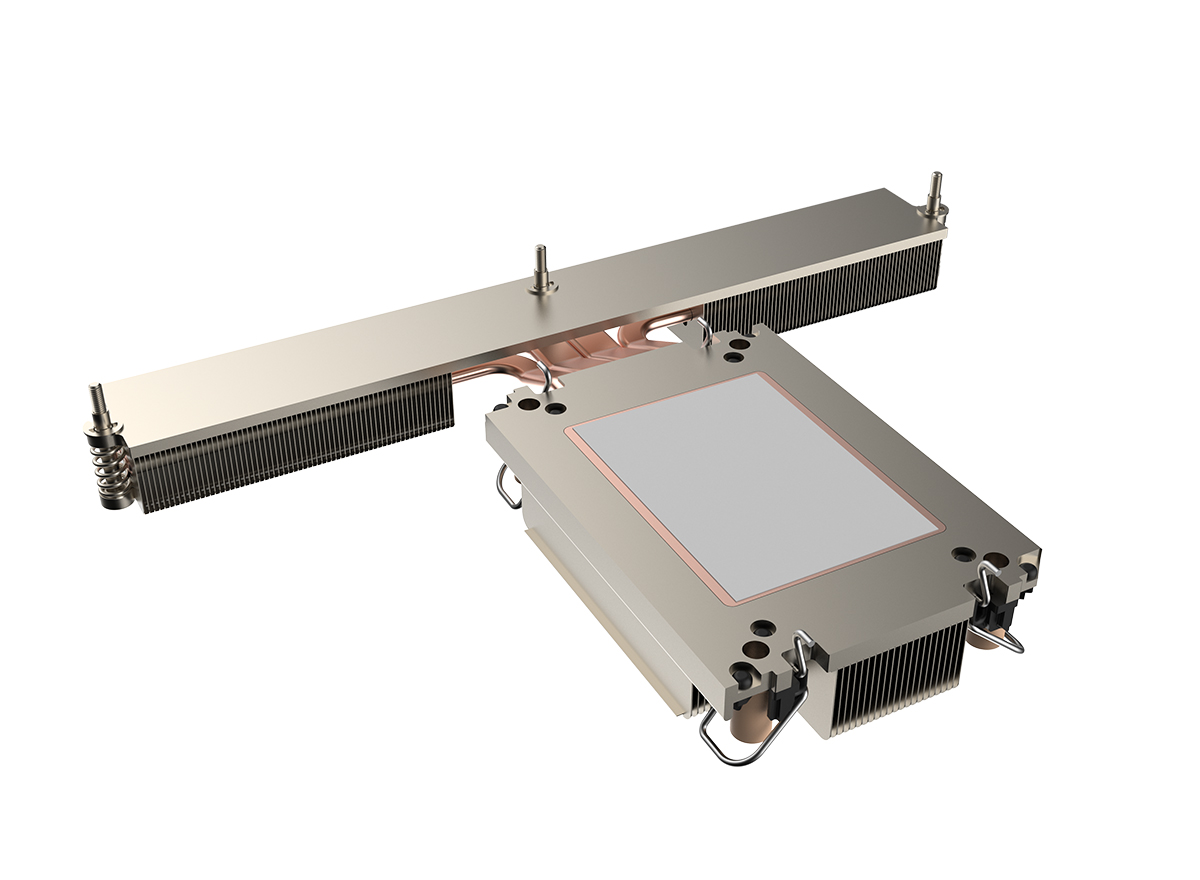

CS-4189-1UM85-P (EVAC）

CS-4189-1UM85-P (EVAC） server thermal module for LGA4189 Product size — 250W Fin thickness class Confirm mounting, TDP, and MOQ on inquiry.

• CPU type: LGA4189
• Power consumption: 250W
• Material: copper base + aluminum fin + 4 heat pipe
• Product size: 169mm * 154.5mm * 25MM
• Fin thickness: 0.3mm
• Fin spacing: 1.5mm

Intel LGA4677 / 4710 server heatsinksHigh-density fin stacks with heat-pipe assemblies for 1U and 2U Intel server builds up to 385 W class.2 models

Intel LGA7529 server heatsinksNext-gen Intel server socket coverage — 1U passive, 2U active, and 4U high-airflow thermal modules.3 models

AMD SP5 server heatsinksEPYC / SP5 rack thermal modules — 1U air, 1U dual-socket water kits, and 2U high-power assemblies.3 models

AMD SP3 server heatsinksSP3 / EPYC Gen2 platform heatsinks and 1U cold-plate modules for legacy and mixed AI server fleets.2 models

Ampere Altra server heatsinksARM server socket coverage for LGA4926 and LGA5964 — 1U through 4U rack thermal modules.4 models

Rack water-cooling kitsIntegrated cold-plate and pump assemblies for dual-socket 2U server thermal — confirm plumbing and CDU on inquiry.1 models
