Connectors›Circular ConnectorsSeries 5015CM 10Cable Connector

CM 10

CM 10 circular connector range for compact, rugged interconnect.

1.Product Overview

Features

  • Circular design with locking mechanisms (e.g., bayonet, threaded) for secure connection.
  • Durable and resistant to vibration, moisture, and dust (often with IP ratings).
  • Easy to mate and unmate in tight spaces.

Applications

  • Industrial automation (sensors, machinery).
  • Medical devices (patient monitoring, surgical tools).
  • Aerospace and military (avionics, communication systems).
  • Audio/visual equipment (stage lighting, broadcast gear).

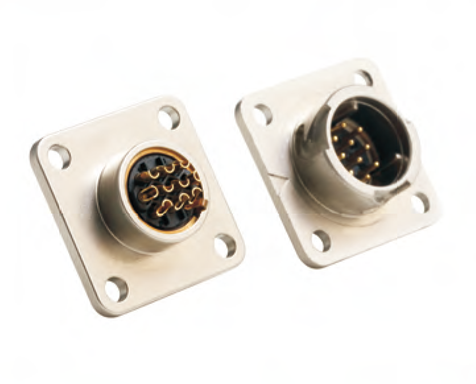

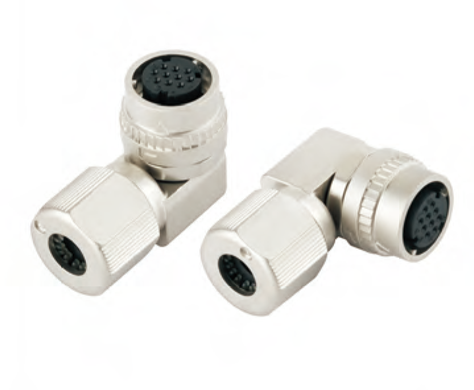

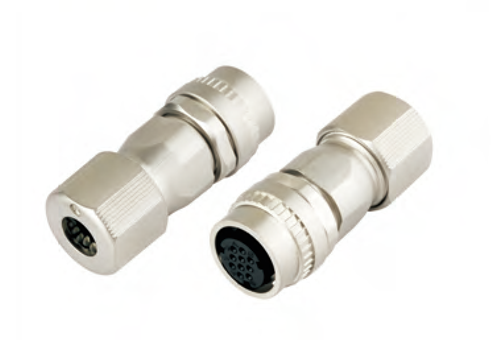

CM 10 product 1CM 10 product 2CM 10 product 3

2.Technical drawings and parameters

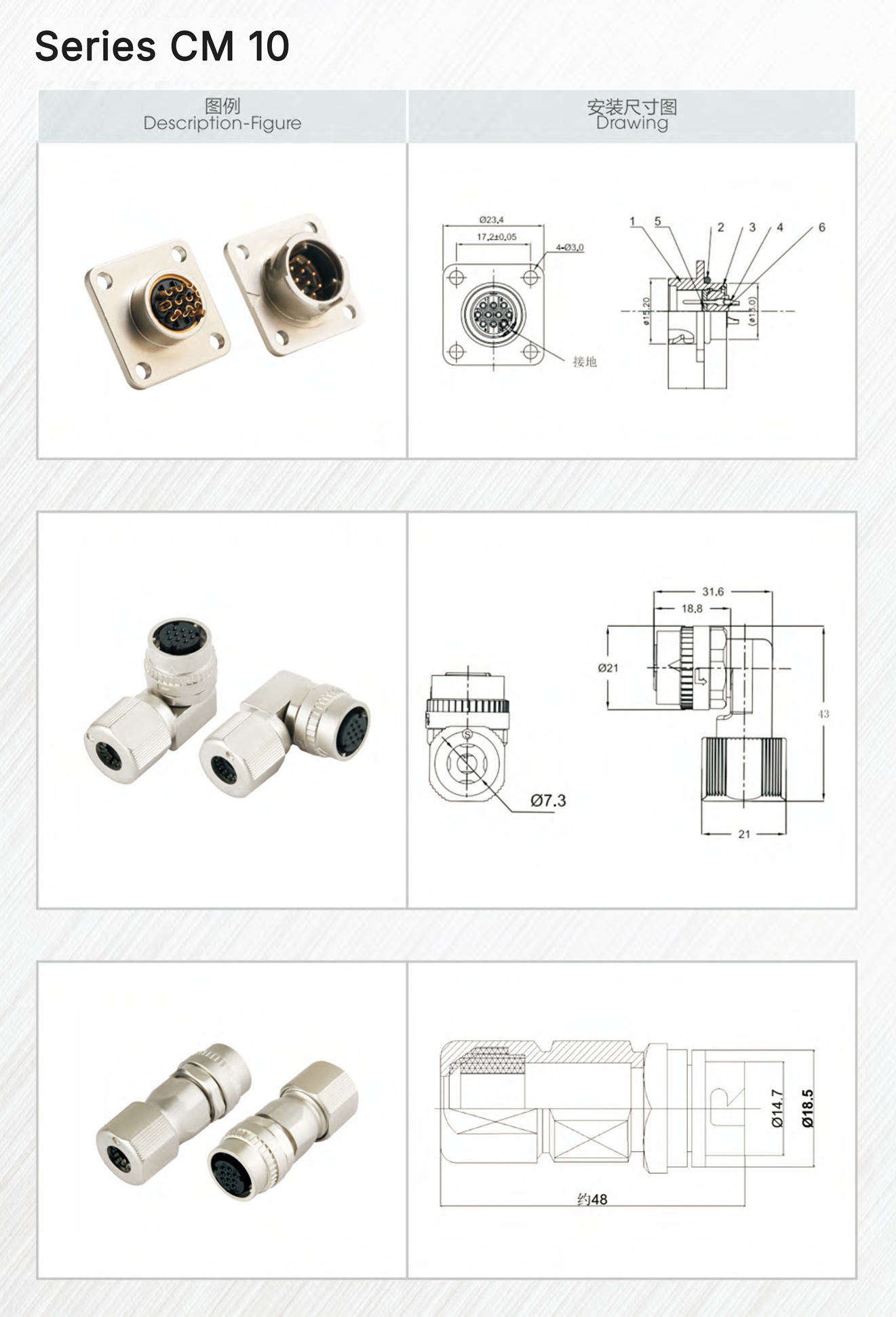

CM 10 technical drawings and parameters — page 21

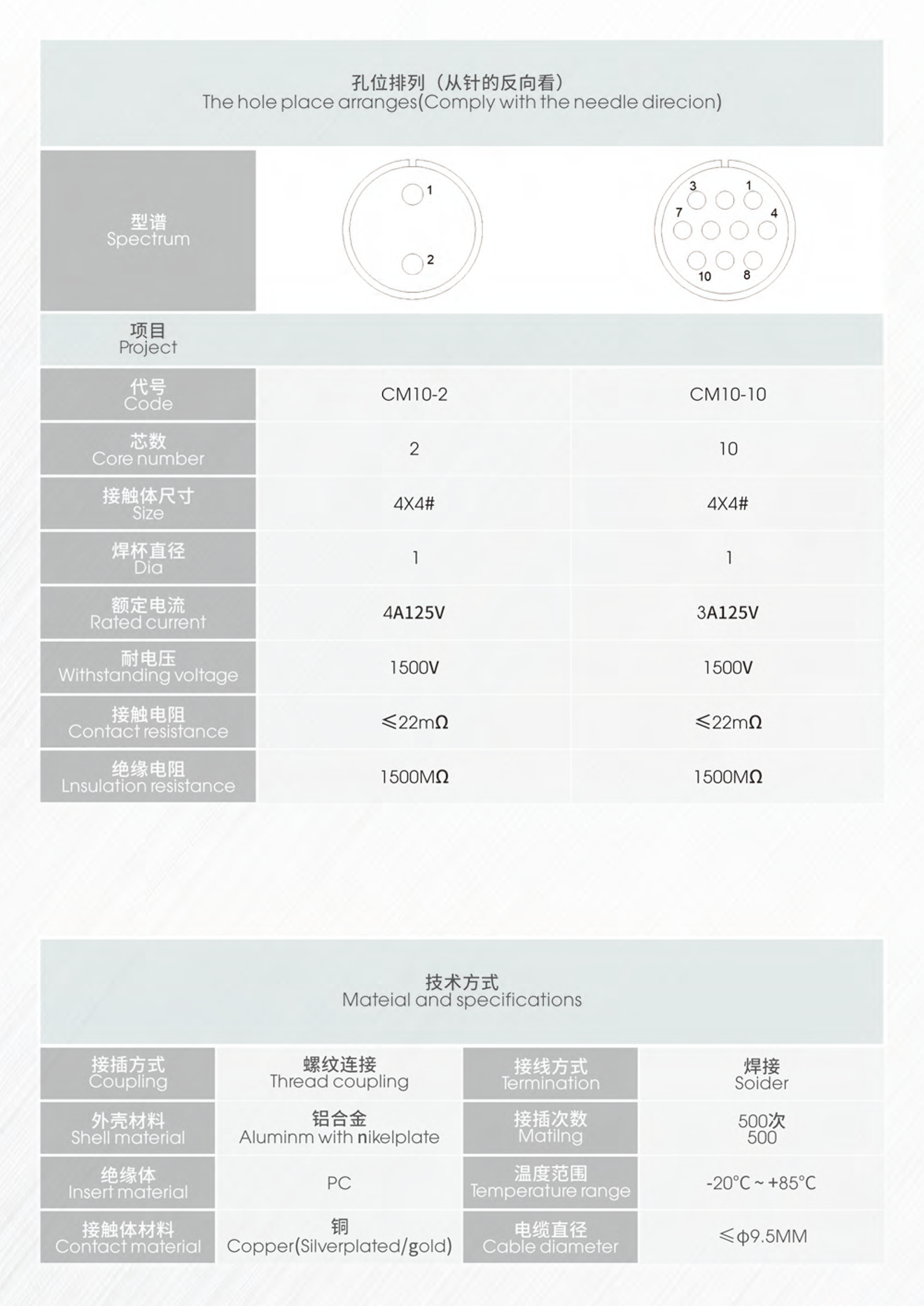

CM 10 technical drawings and parameters — page 22

3.Models and specifications

SeriesNumber of contactsMating typeMating typeReceptacle
Series CM1010Bayonet coupling CM10-10Threaded coupling CM10-10CM10-10
Series CM102Bayonet coupling CM10-2Threaded coupling CM10-2CM10-2
Series CM1010Bayonet coupling JAE10—JAE-10
Series CM104Bayonet coupling JAE4——
Tuning fork contact10Bayonet coupling CM10-10Threaded coupling CM10-10—
Tuning fork contact2Bayonet coupling CM10-2Threaded coupling CM10-2—
Tuning fork contact10Bayonet coupling JAE10——
