OCSP platforms & structural accessories
OCSP server chassis plus sliding rail kits and structural hardware for OCP-aligned rack programs.
4 representative models — browse below or search by model. Drawings, rail kits, and export MOQ confirmed on inquiry.
OCSP platforms & structural accessories
OCSP server chassis plus sliding rail kits and structural hardware for OCP-aligned rack programs.

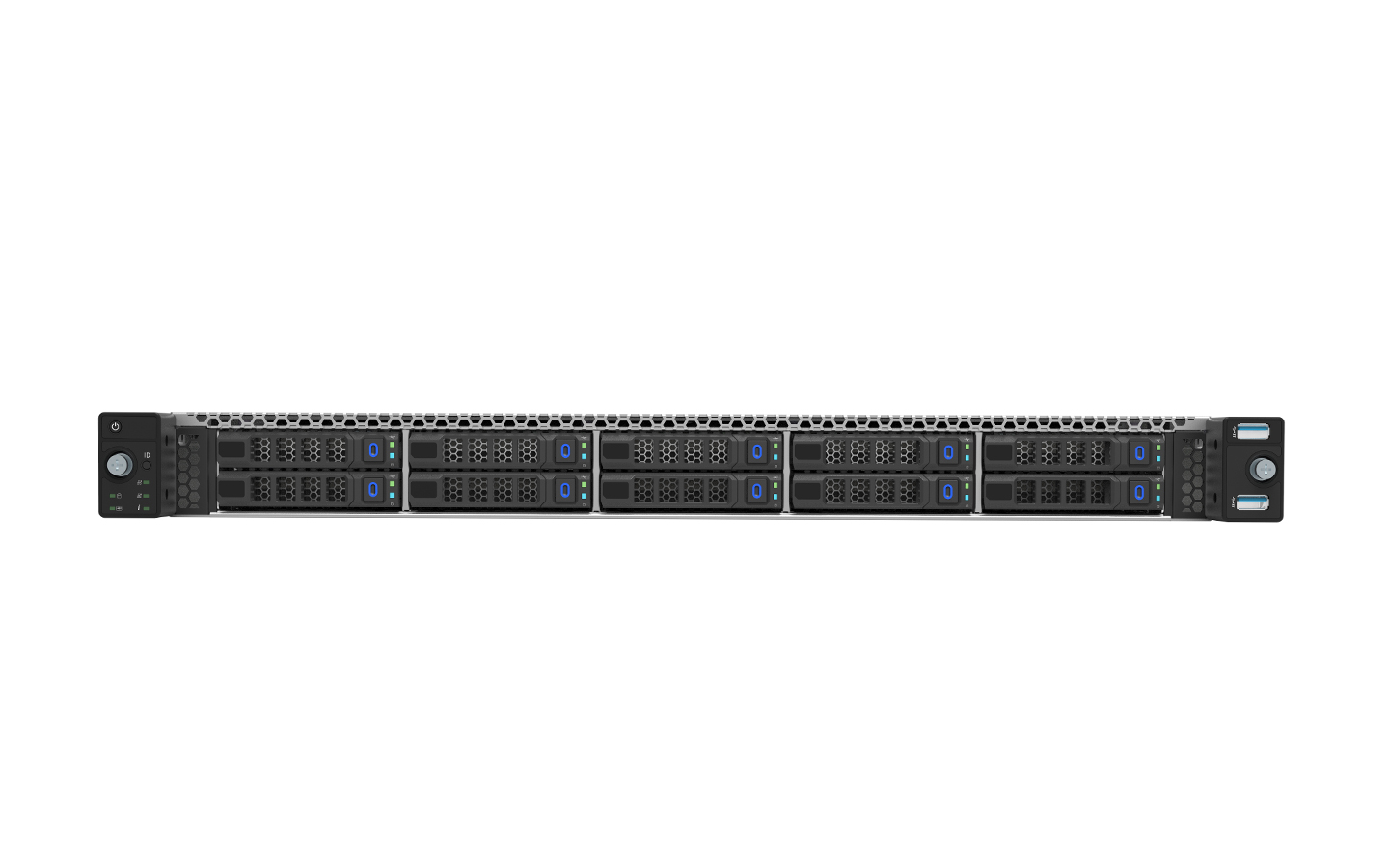

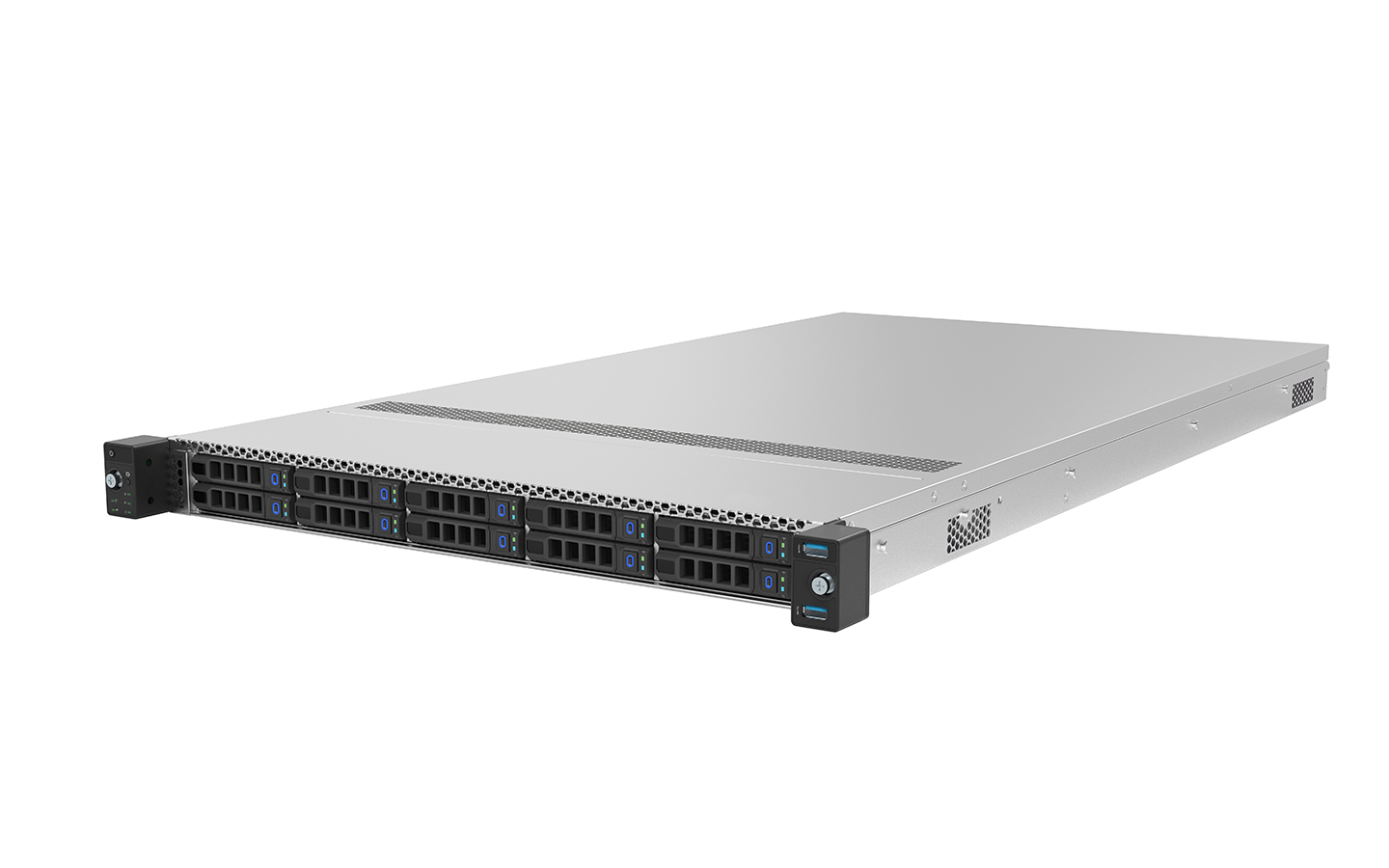

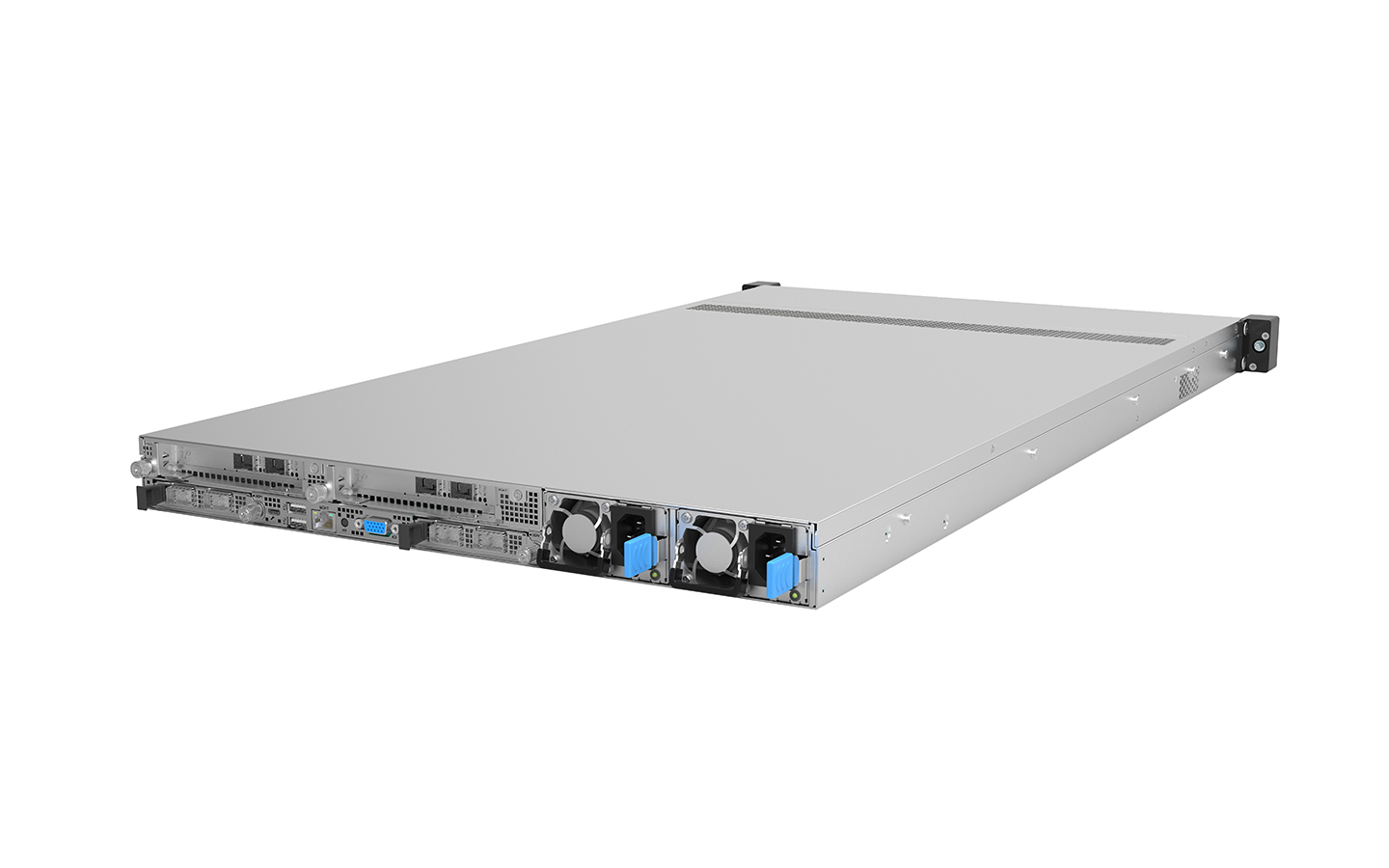

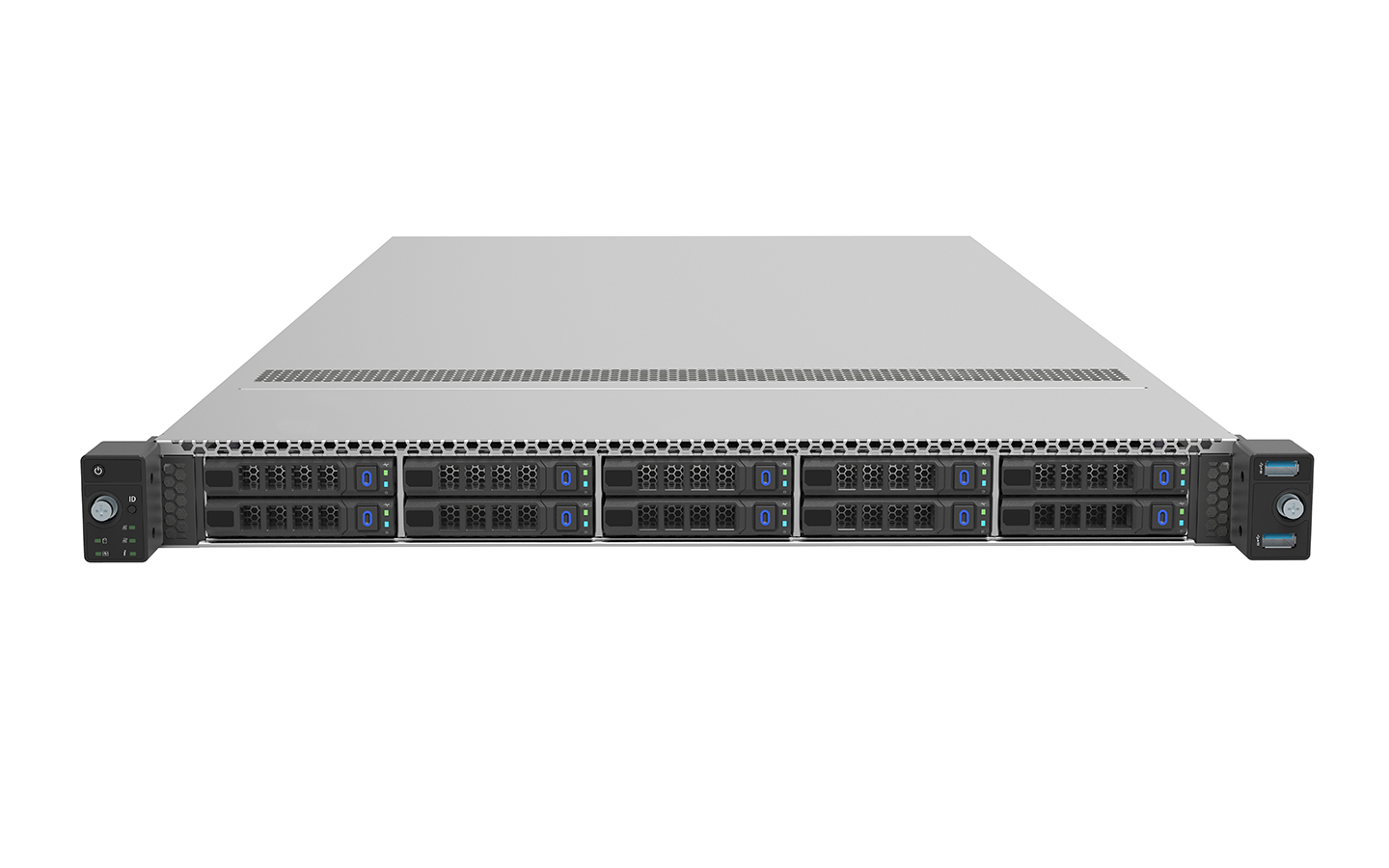

1U OCSP
1U OCSP — OCSP server platform or factory sliding rail kit for OCP-aligned rack builds. Dimensions (mm): 800mm（L）*447mm（W）*43.8mm（H）. Confirm form factor, rails, and export MOQ on inquiry.
- Drive bays: front10 ×2.5-inchSATA/SAS/NVMedrive slots
- Fan mounts: supports 8 ×4056high-performance fan
- Drawings, rail kits, and export packaging on inquiry
- Primary material: Ma Steel (eco-grade, anti-fingerprint1.2mm SGCC)
- Surface finish: textured black front panel assembly, other panels in natural finish
- GPU bays: supports 2 ×FHFLdual-widthGPU cards, P2P GPU support
- Memory: 32 ×DDR5 ECC memory slots, 5600MT/S
- PCIe support: 2 ×PCIe 5.0 slots, 2 ×OCP 2.0 slots
- PSU support: 2 ×redundant CRPSPSU
- Front panel LEDs: HDD LED*1 , LAN LED*2,SYSTEM LED*1,FAIL LED*1
- System support: Windows Server 、Redhat Enterprise Linux Server Suse Enterprise Linux Server 、Ubuntu Server 、Debian Server、 Citrix XenServer 、Vmware
- Applications: data center, cloud storage, private cloud, distributedstorage, security & surveillance
- Supplier program: Toploong (Shenzhen)

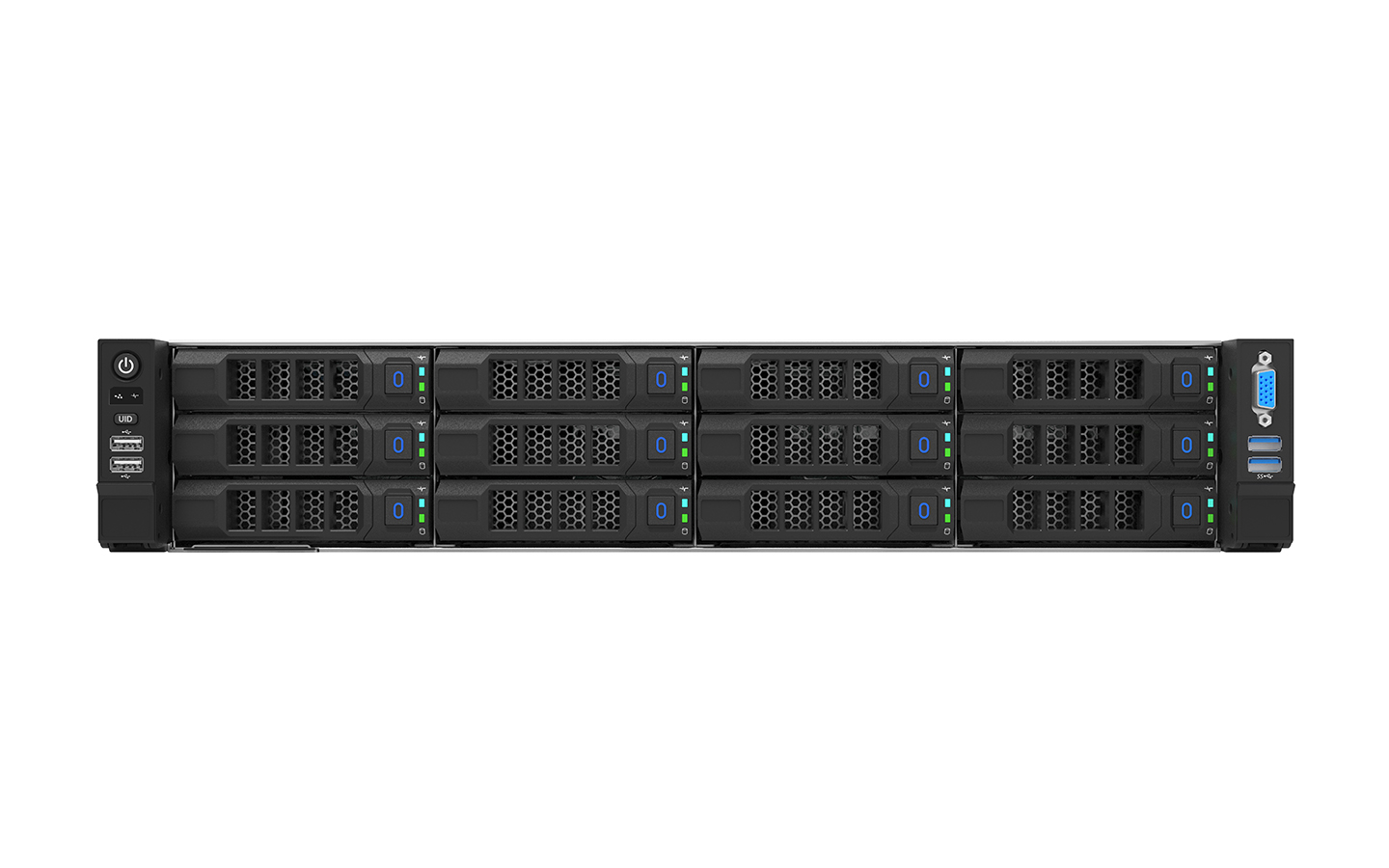

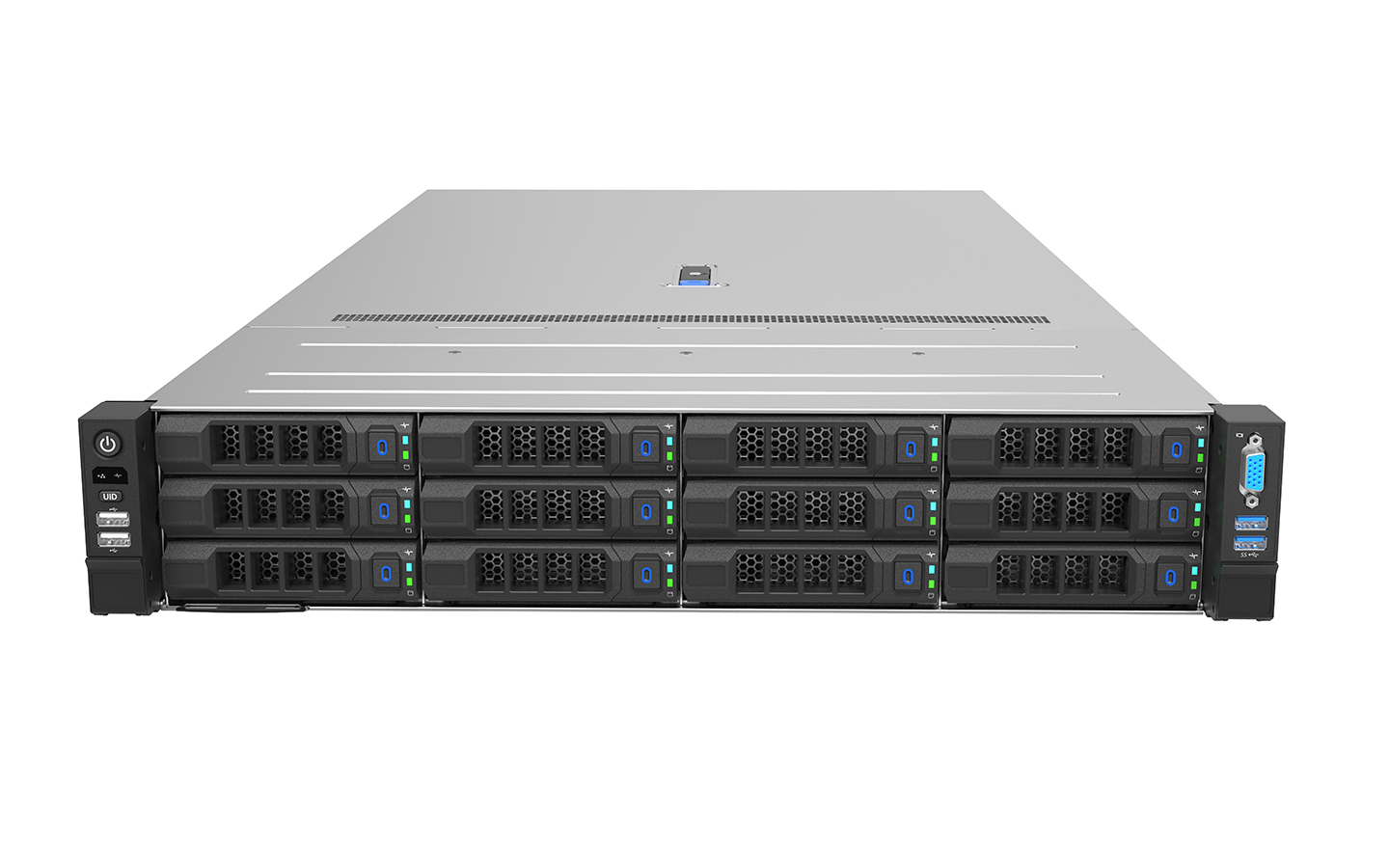

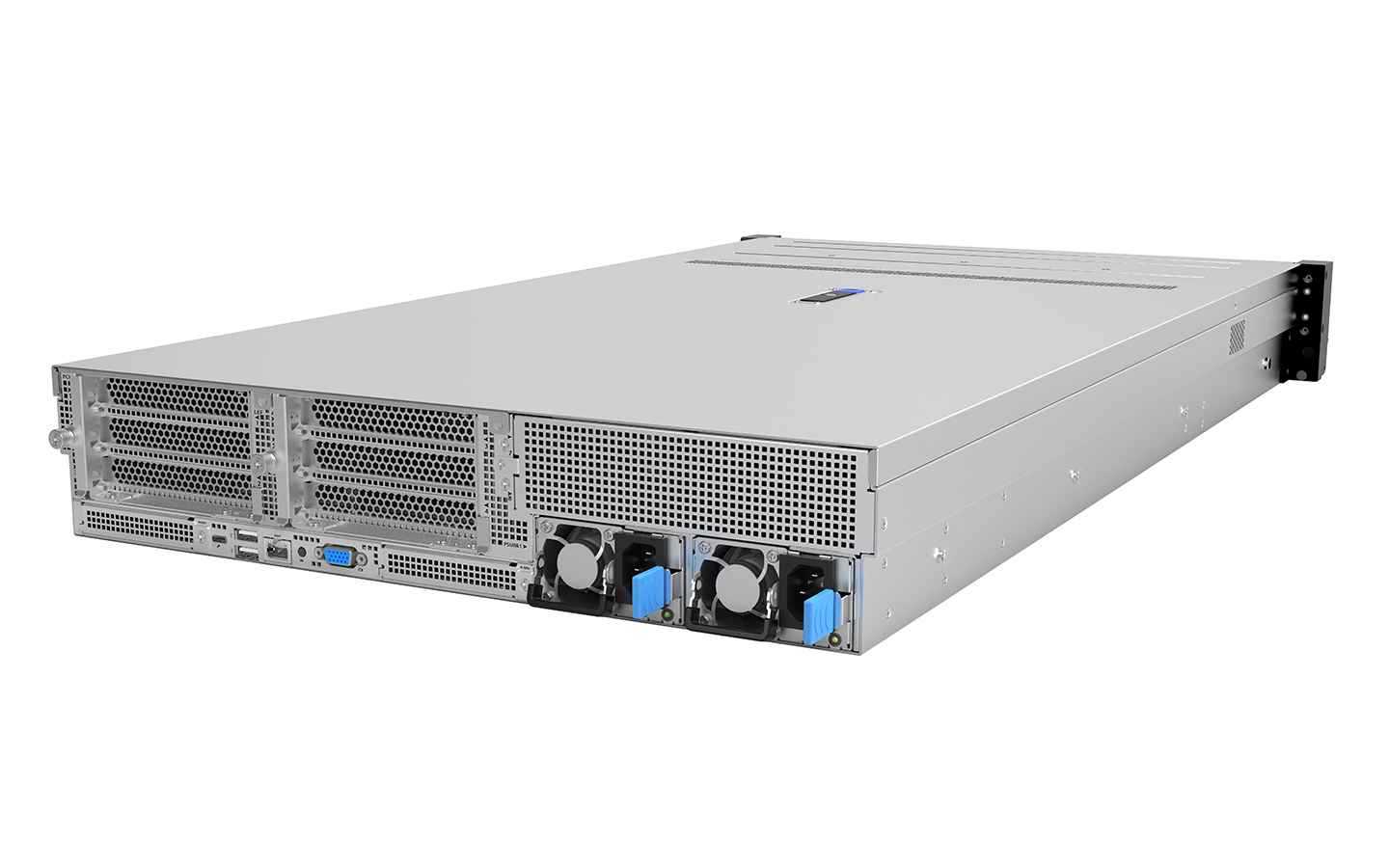

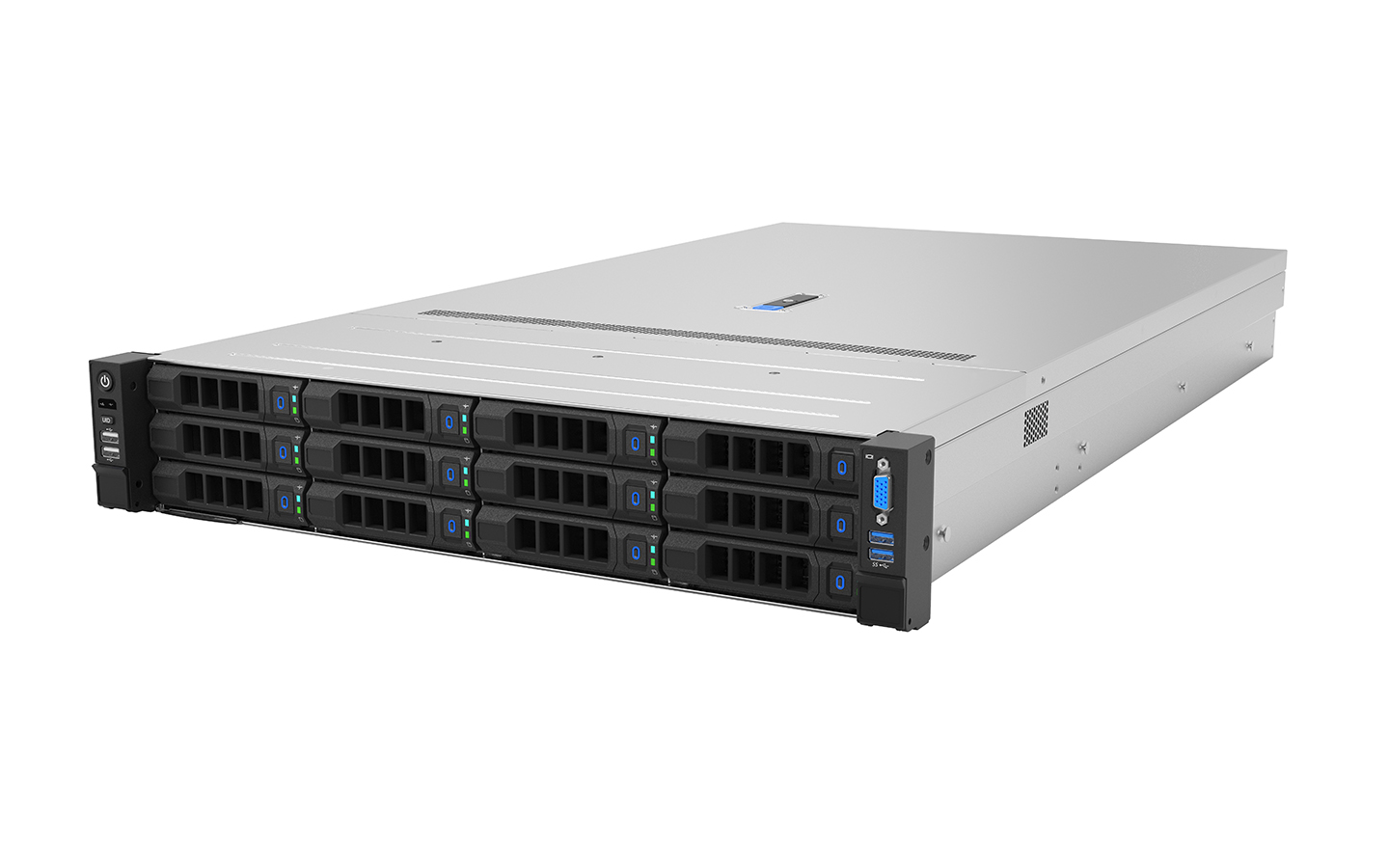

2U OCSP
2U OCSP — OCSP server platform or factory sliding rail kit for OCP-aligned rack builds. Dimensions (mm): 800mm（L）*447mm（W）*87mm（H）. Confirm form factor, rails, and export MOQ on inquiry.
- Drive bays: front 12*LFF or 24*SFF , and rear 4*SFFSATA/SAS/NVMedrive slots
- Fan mounts: supports 6 ×6056high-performance fan
- Drawings, rail kits, and export packaging on inquiry
- Primary material: Ma Steel (eco-grade, anti-fingerprint1.2mm SGCC)
- Surface finish: textured black front panel assembly, other panels in natural finish
- GPU bays: supports 2 ×FHFLdual-widthGPU cards, P2P GPU support
- Memory: 32 ×DDR5 ECC memory slots, 5600MT/S
- PCIe support: 6 ×PCIe 5.0 slots, 2 ×OCP 2.0 slots
- PSU support: 2 ×redundant CRPSPSU
- Front panel LEDs: LAN LED*1,SYSTEM LED*1
- System support: Windows Server 、Redhat Enterprise Linux Server Suse Enterprise Linux Server 、Ubuntu Server 、Debian Server、 Citrix XenServer 、Vmware
- Applications: data center, cloud storage, private cloud, distributedstorage, security & surveillance
- Supplier program: Toploong (Shenzhen)

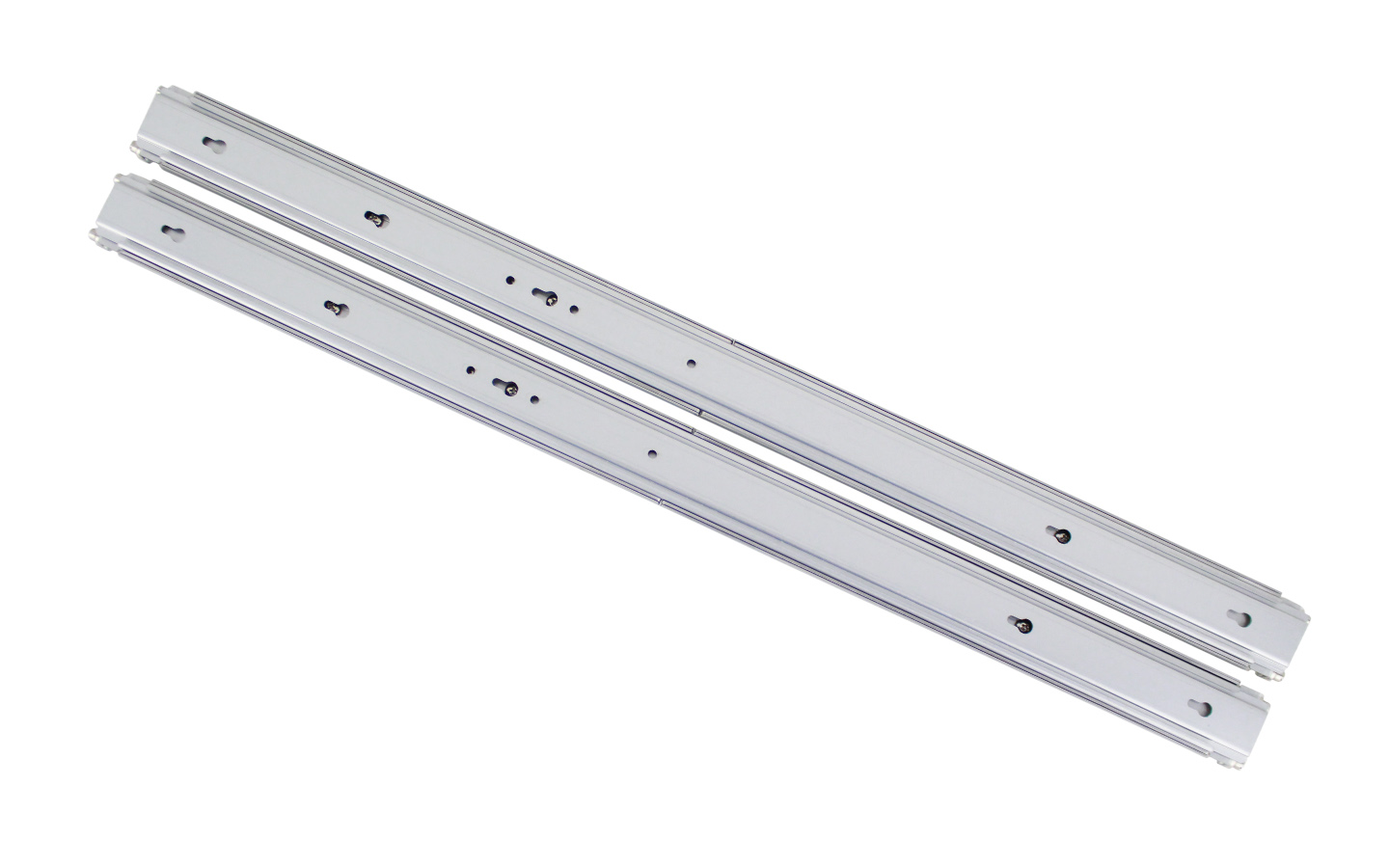

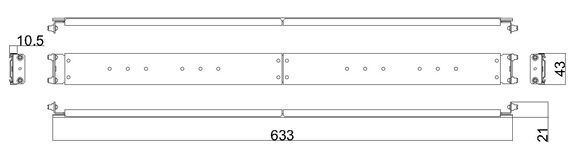

TOP1U rail kit
TOP1U rail kit — OCSP server platform or factory sliding rail kit for OCP-aligned rack builds. Dimensions: D 633 × W 21 × H 43 mm. Confirm form factor, rails, and export MOQ on inquiry.
- Factory model TOP1U rail kit
- Drawings, rail kits, and export packaging on inquiry
- Packaging: cardboard box +foam padding+poly bag
- Supplier program: Toploong (Shenzhen)

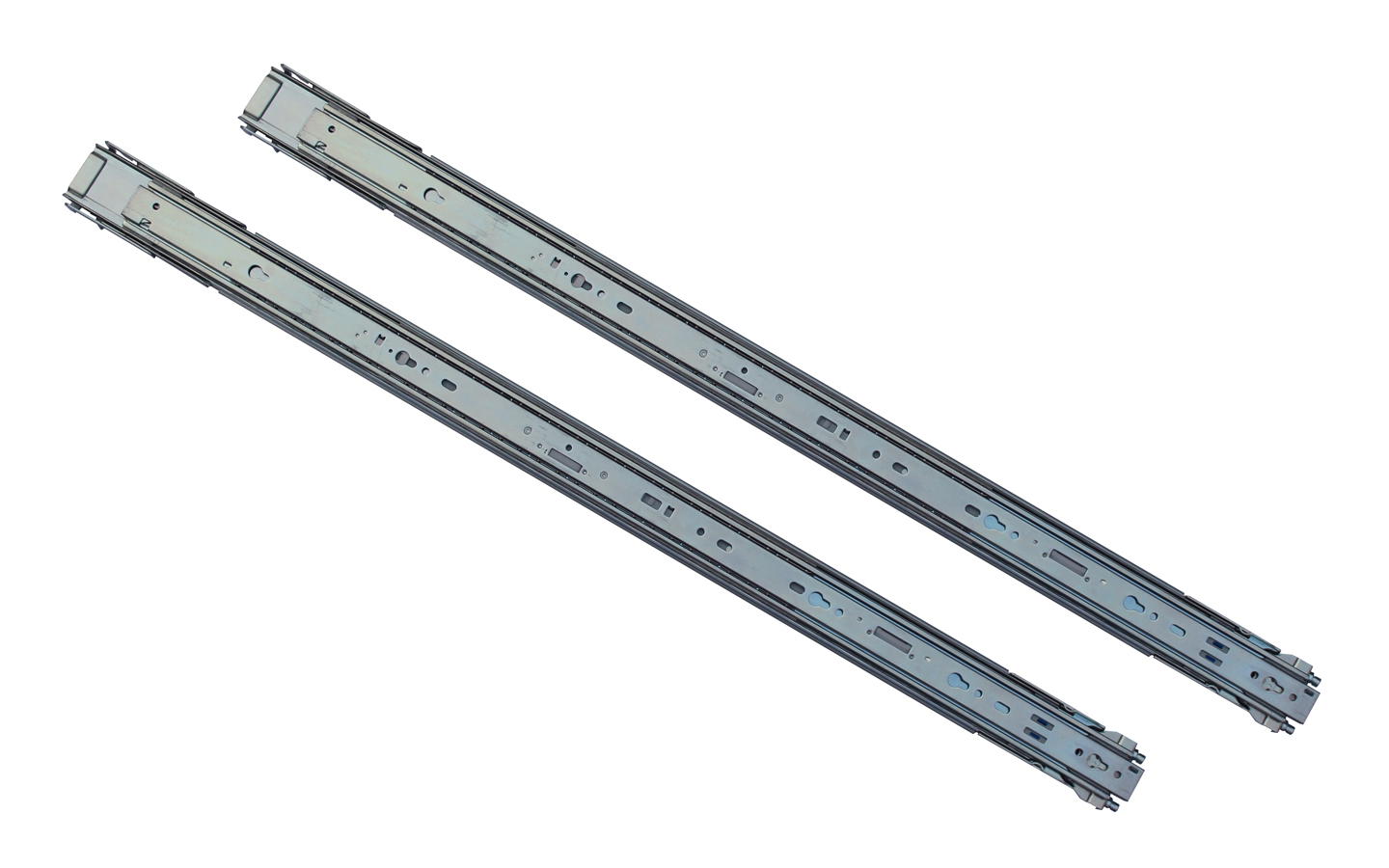

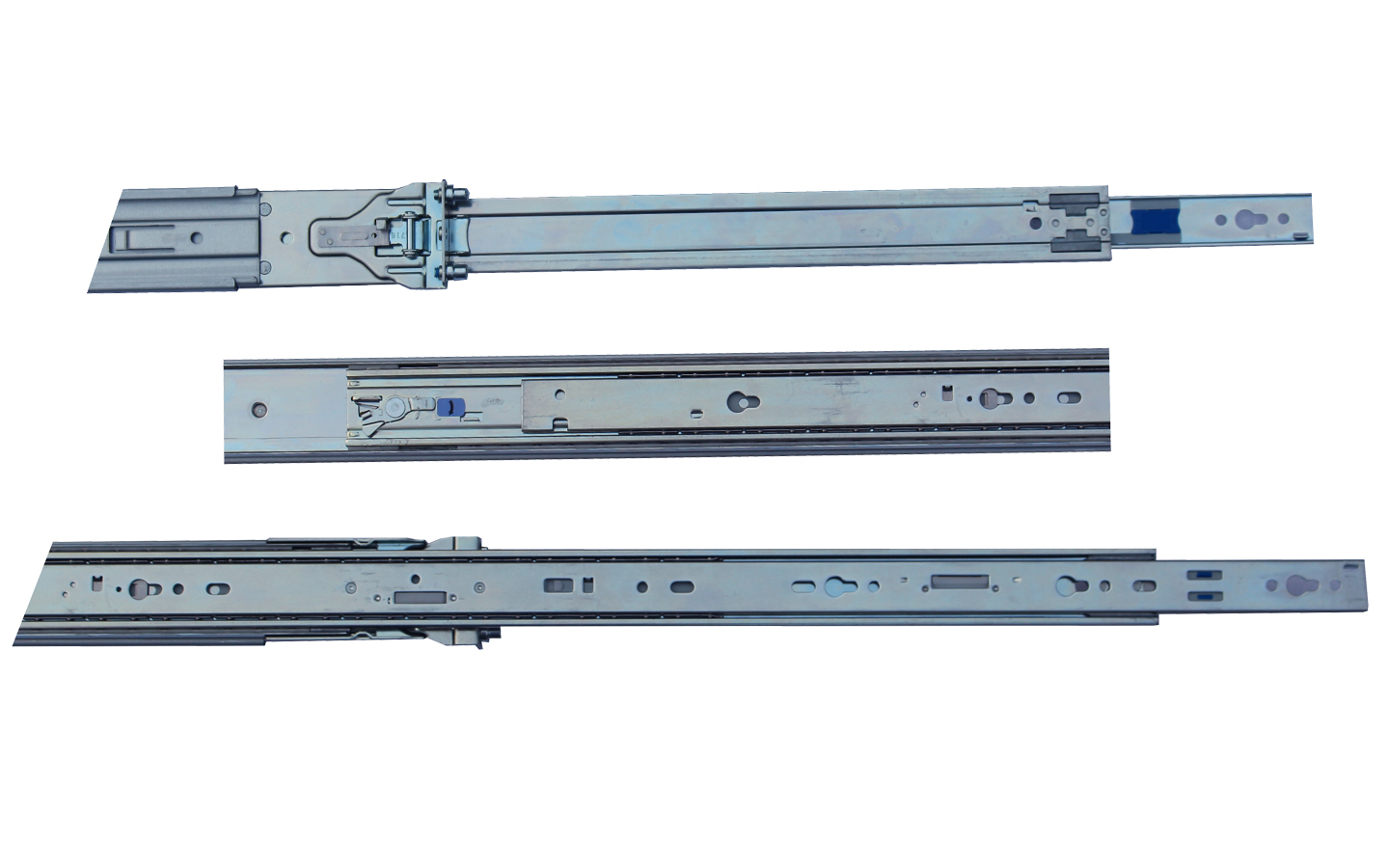

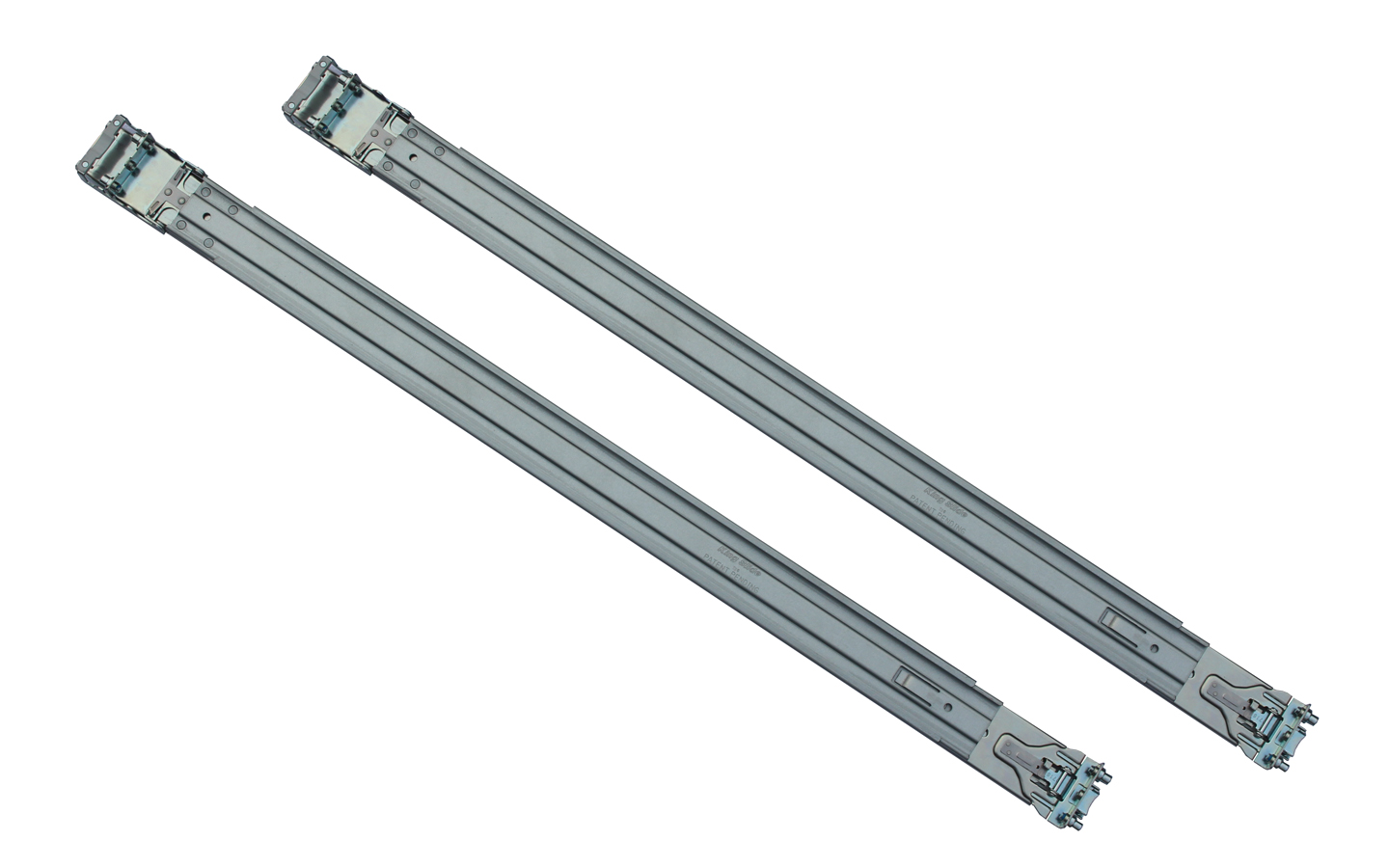

Server chassis sliding rails (Type A)
Server chassis sliding rails (Type A) — OCSP server platform or factory sliding rail kit for OCP-aligned rack builds. Confirm form factor, rails, and export MOQ on inquiry.
- Product category: Sliding rail kit
- Factory model Server chassis sliding rails (Type A)
- Drawings, rail kits, and export packaging on inquiry
- Supplier program: Toploong (Shenzhen)
Chassis and cabinet catalog live — programs from partner factories (manufacturer noted in specs). Confirm U-height, GPU count, rails, cabinet size, and export MOQ on inquiry.
