Industrial AI gateways
Industrial AI gateways and embedded controllers for factory, logistics, and infrastructure edge — protocol-rich I/O, wide-temperature designs, and long-life supply programs.
3 representative models — browse below or search by model. Carrier compatibility, SDK, and export MOQ confirmed on inquiry.
Industrial embedded AI platforms
Protocol-rich embedded edge computers and industrial SBCs for factory, logistics, and infrastructure gateways — fieldbus I/O, long-life supply, and ODM carrier programs.

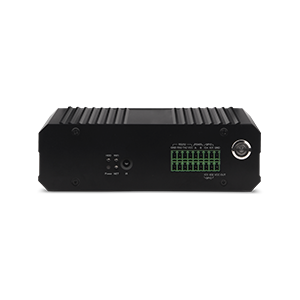

APC3576
Rockchip RK3576 industrial embedded edge computer with 6 TOPS NPU — compact enclosed gateway for NVR, control, and multimedia edge programs with RS232/485 and watchdog.
- RK3576 octa-core · 6 TOPS onboard NPU
- 32-channel 1080p decode · 8K video path
- GbE · dual-band Wi-Fi · Bluetooth 5.2
- RS232/485 · GPIO · SATA · Type-C DP
- Extended -40°C to +85°C · 7×24 watchdog + RTC
- SoC: Rockchip RK3576
- CPU: Quad Cortex-A72 + quad Cortex-A53
- GPU: Arm Mali-G52 MC3
- Onboard AI: 6 TOPS NPU
- Memory / storage: 4 GB LPDDR4 (8/16 GB opt.) · 32 GB eMMC (up to 256 GB opt.)
- Network: Gigabit Ethernet · Wi-Fi 2.4/5 GHz · Bluetooth 5.2
- Industrial I/O: RS232 · RS485 · GPIO · IR · USB 3.0 · Type-C
- Operating system: Android 14
- Power: DC 12 V / 2 A adapter
- Dimensions: 160 × 125.5 × 48 mm
- Operating temperature: 0°C to 50°C commercial · -40°C to 85°C extended
- Supplier program: Geniatech
- MOQ: Confirm on inquiry

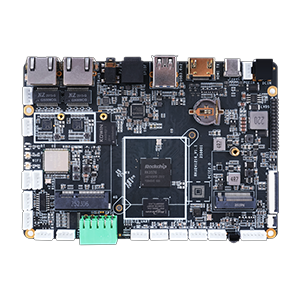

DB3576
Compact 3.5-inch Rockchip RK3576 AIoT board — dual GbE, CAN, RS232/485, and M.2 expansion for custom industrial gateway and HMI carrier designs.
- RK3576 · 6 TOPS NPU
- 3.5-inch SBC · 146 × 102 mm
- Dual GbE · Wi-Fi 5 · Bluetooth 5.0
- 2× RS232 · 2× RS485 · CAN · GPIO
- Android 14 · Debian 12 · optional 4G Mini PCIe
- SoC: Rockchip RK3576 / RK3576J
- CPU: Quad Cortex-A72 + quad Cortex-A53
- GPU: Arm Mali-G52 MC4
- Memory / storage: 4/8/16 GB LPDDR4 · 32 GB eMMC (16–256 GB opt.)
- Network: 2× Gigabit Ethernet · Wi-Fi 802.11ax · optional 4G Mini PCIe
- Operating system: Android 14 · Linux Debian 12
- Power: DC 12–24 V (PoE options on inquiry)
- Dimensions: 146 × 102 mm (3.5-inch board)
- Supplier program: Geniatech
- MOQ: Confirm on inquiry

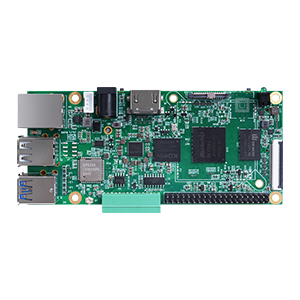

XPI-3576
Industrial RK3576 AI SBC with Pi-compatible 40-pin header — 6 TOPS onboard NPU, optional Hailo-8 M.2 up to 26 TOPS, and -40°C to +85°C for field gateway OEM builds.
- RK3576 · 6 TOPS NPU · optional Hailo-8 to 26 TOPS
- Pi ecosystem compatible · 40-pin GPIO
- CAN · RS485 · RS232 · PCIe M.2 B+M key
- HDMI 2.1 · MIPI-CSI/DSI · dual USB 3.0
- Android 14 · Debian 12 · -40°C to +85°C industrial
- SoC: Rockchip RK3576
- CPU: Quad Cortex-A72 + quad Cortex-A53
- Onboard AI: 6 TOPS INT8 NPU
- Expansion AI: Optional Hailo-8 M.2 module · up to 26 TOPS
- Memory / storage: 4 GB (8/16 GB opt.) · 32 GB eMMC (64/128 GB opt.) · TF slot
- Network: Gigabit Ethernet · optional Wi-Fi 2.4/5 GHz · Bluetooth 5.0
- Industrial I/O: 40-pin GPIO · CAN · RS485/422 · RS232 · PCIe 3.0 M.2
- Operating system: Debian 12 · Android 14
- Power: DC 12 V
- Dimensions: 125 × 56 × 22.6 mm
- Supplier program: Geniatech
- MOQ: Confirm on inquiry
CPU class, I/O count, and certification targets — confirm on inquiry.
Priority export program — start with edge box and fanless appliance SKUs; accelerator modules are expansion-tier follow-on programs. Share workload, environment, certification, and MOQ for early matching.
