Axial fans

Axial fans move large volumes of air for:

1.An overview of the features of axial blowers / axial fans

Specifications

Flow range: 2000~30000 m3/h
Static pressure range: 0~280Pa

Characteristics

DC & AC motor fan
Low noise, high efficiency, safety, reliability, durability, energy saving and environmental protection
Impellers and cases made of high-quality galvanized sheet, produced by moulds with high consistency
Built-in over-heat, over-current and over-load protection devices
Simple structure for convenient assembly/disassembly and maintenance

Application fields

Building ventilation, Fire smoke extraction, Industrial ventilation and dust removal, Gas transmission.

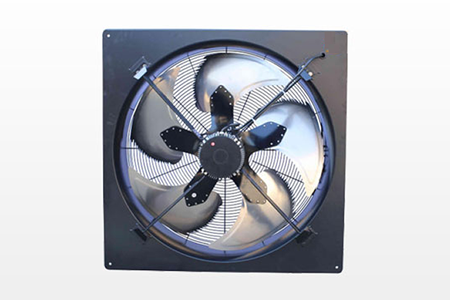

Axial Exhaust Fan Series
DC Greenhouse Fan Series

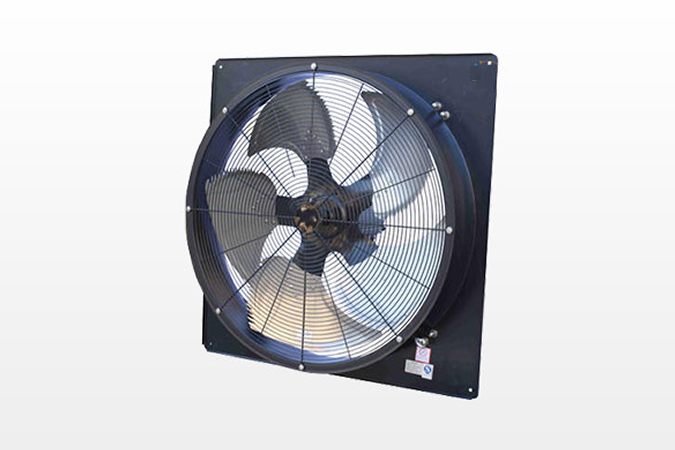

Axial Fan CCH-8.5C-6S-170/4L

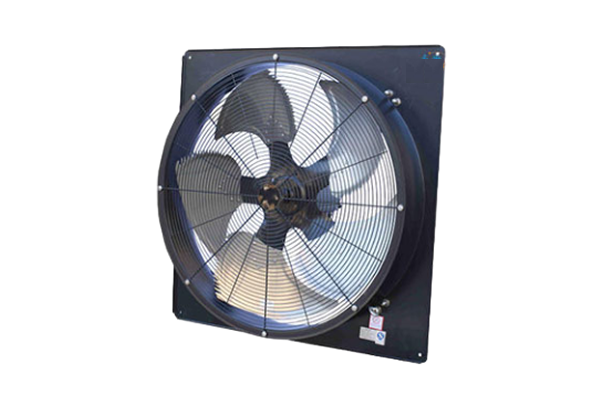

Axial Fans for Ventilation

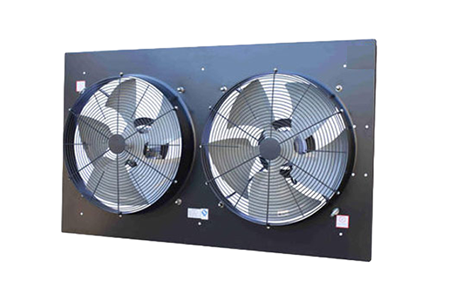

AC Condensor Fans

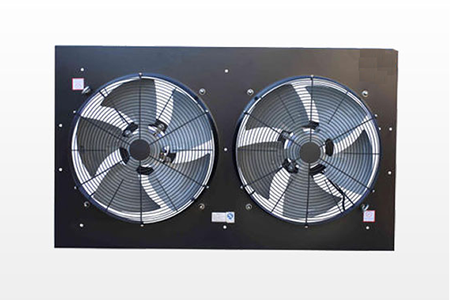

Axial Fan CCH-5.5-6S-172/5S

2.Application fields

Refrigeration Industry
Air Source Heating Pumps
Fresh Air Circulating System
Drying Industry
Electrical Equipment
Ventilation Engineering

3.Models and specifications

No.	Product Model	Motor Model	Static Pressure (Pa)	Flow Rate (m3/h)	Noise (dB(A))
1	CCH 5.5-6S-125/5S	250W-6P	40	6000	59
2	CCH 5.5-EC-125/5S	250W	40	6000	59
3	CCH 5.5-6S-172/5S	370W-6P	60	8000	62
4	CCH 5.5-EC-172/5S	450W	60	8000	62
5	CCH 6-6S-170/5S	550W-6P	60	10000	65
6	CCH 6-EC-170/5S	550W	60	10000	65
7	CCH 6.3-6S-110/6S	550W-6P	60	11000	68
8	CCH 6.3-EC-110/6S	550W	60	11000	68
9	CCH 6.3-8S-260/4S	750W-8P	60	10000	63
10	CCH 6.3-EC-260/4S	750W	60	10000	63
11	CCH 6.3-6S-260/4S	1100W-6P	60	14000	71
12	CCH 6.3-EC-260/4S	1250W	60	14000	71
13	CCH 7C-6S-185/4S	550W-6P	60	11500	63
14	CCH 7C-EC-185/4S	550W	60	11500	63
15	CCH 7C-6S-185/4S-D	550W-6P	60	11500	61.5
16	CCH 7C-8S-215/4S	370W-6P	60	8500	57
17	CCH 7C-6S-215/4S	750W-8P	60	13000	65
18	CCH 7C-EC-215/4S	750W	60	13000	65
19	CCH 7C-6S-215/4S-D	750W-6P	60	13000	62
20	CCH 7-8S-235/4S	750W-8P	60	12000	64
21	CCH 7-EC-235/4S	750W	60	12000	64
22	CCH 7-8S-235/4S-D	750W-8P	60	12000	61.5
23	CCH 7-6S-202/3L	750W-6P	60	13000	64
24	CCH 7.6C-6S-175/4S	750W-6P	60	13000	64
25	CCH 7.6C-EC-175/4S	750W	60	13000	64
26	CCH 7.6C-6S-175/4S-D	750W-6P	60	13000	62.5
27	CCH 7.6C-8S-215/4S	750W-8P	60	13000	60
28	CCH 7.6C-EC-215/4S	750W	60	13000	60
29	CCH 7.6C-8S-215/4S-D	750W-8P	60	13000	58.5
30	CCH 7.6C-6S-215/4S	1250W-6P	80	18000	68
31	CCH 7.6C-EC-215/4S	1250W	80	18000	68
32	CCH 7.6C-6S-215/4S-D	1250W-6P	80	18000	66.5
33	CCH 7.6C-8S-220/4S	750W-8P	80	15000	61
34	CCH 7.6C-EC-220/4S	750W	60	15000	61
35	CCH 7.6C-8S-220/4S-D	750W-8P	60	15000	58
36	CCH 8C-8S-210/4S	750W-8P	80	13000	61
37	CCH 8C-EC-210/4S	750W	80	13000	61
38	CCH 8C-8S-210/4S-D	750W-8P	80	13000	59.5
39	CCH 8C-6S-210/4S	1500S-6P	80	20000	69
40	CCH 8C-EC-210/4S	1500W	80	20000	69
41	CCH 8C-6S-210/4S-D	1500W-6P	80	20000	67.5
42	CCH 8C-6S-205/5S	1500W-6P	80	21000	70
43	CCH 8C-EC-205/5S	1500W	80	21000	70
44	CCH 8C-6S-205/5S-D	1500W-6P	80	21000	68
45	CCH 8.5C-8S-170/4L	1100W-8P	80	15000	65
46	CCH 8.5C-EC-170/4L	1250W	80	15000	65
47	CCH 8.5C-8S-170/4L-D	1100W-8P	80	15000	63.5
48	CCH 8.5C-6S-170/4L	1500W-6P	80	22000	73
49	CCH 8.5C-EC-170/4L	1500W	80	22000	73
50	CCH 8.5C-6S-170/4L-D	1500W-6P	80	22000	71.5
51	CCH 8.5C-6S-185/5L	2200W-6P	80	25000	76
52	CCH 8.5C-EC-185/5L	2200W	80	25000	76
53	CCH 8.5C-6S-185/5L-D	2200W-6P	80	25000	74
54	CCH 9C-6S-170/5S	1800W-6P	80	23500	73
55	CCH 9C-EC-170/5S	1800W	80	23500	73
56	CCH 9C-6S-170/5S-D	1800W-6P	80	23500	71
57	CCH 9C-8S-215/5S	1500W-6P	80	20000	67
58	CCH 9C-EC-215/5S	1500W	80	20000	67
59	CCH 9C-8S-215/5S-D	1500W-8P	80	20000	65
60	CCH 9C-8S-215/6S	1800W-8P	80	23500	67.5
61	CCH 9C-EC-215/6S	1800W	80	23500	67.5
62	CCH 9C-8S-215/6S-D	1800W-8P	80	23500	65

4.Drawings & technical parameters

Axial Fan CCH-8.5C-6S-170/4L technical drawing 1

Axial Fan CCH-8.5C-6S-170/4L technical drawing 2

Axial Fan CCH-8.5C-6S-170/4L technical drawing 3

Axial Fan CCH-8.5C-6S-170/4L technical drawing 4

Axial Fan CCH-8.5C-6S-170/4L technical drawing 5

Axial Fan CCH-8.5C-6S-170/4L technical drawing 6

Axial Fan CCH-5.5-6S-172/5S technical drawing 1

Axial Fan CCH-5.5-6S-172/5S technical drawing 2

Axial Fan CCH-5.5-6S-172/5S technical drawing 3

Axial Fan CCH-5.5-6S-172/5S technical drawing 4

Axial Fan CCH-5.5-6S-172/5S technical drawing 5

Axial Fan CCH-5.5-6S-172/5S technical drawing 6

5.Hassle-free after-sales service

We will provide one complimentary replacement part for each model in the event of a defect. Our products come with a 24-month quality warranty, and we offer free replacements for any product defects. We ensure superior quality by using high-grade parts and materials, including 100% pure copper wires, renowned NSK bearings, and top-quality silicon steel sheets.
