Centrifugal blowers deliver high-velocity air for:
Central air conditioning, Refrigeration, Air source heat pump, Drying industry, Electrical equipment, Ventilation engineering, Air compressor industry, Closed cooling tower.

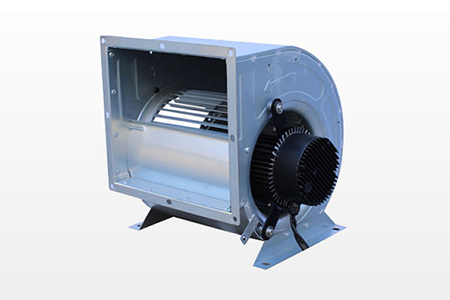

Centrifugal Type Blower

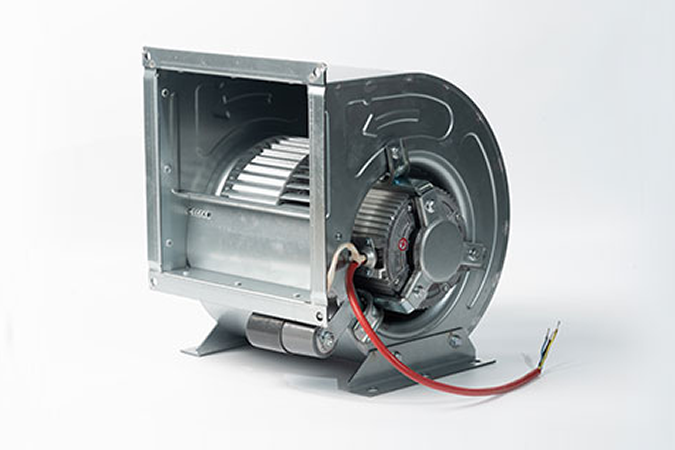

Centrifugal Blower CCH-AC12-12

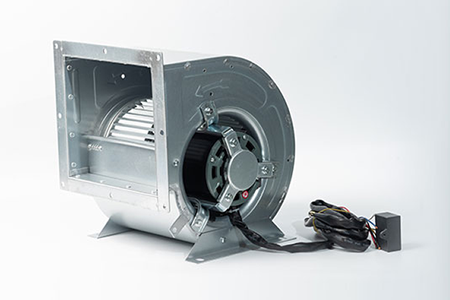

Centrifugal Blower for Bathroom

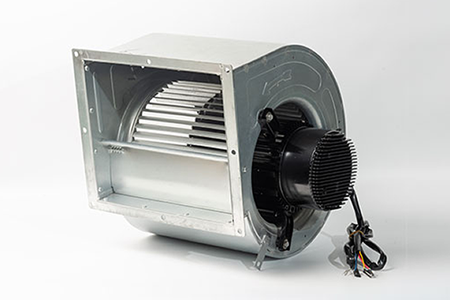

Centrifugal Blower CCH-EC8-8

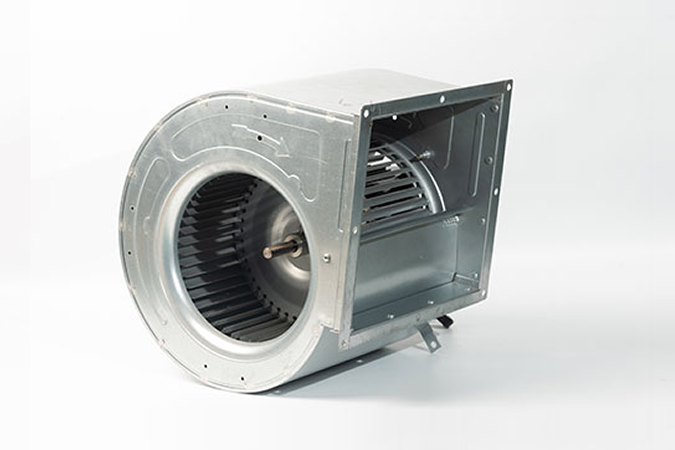

Centrifugal Blower CCH-EC9-9

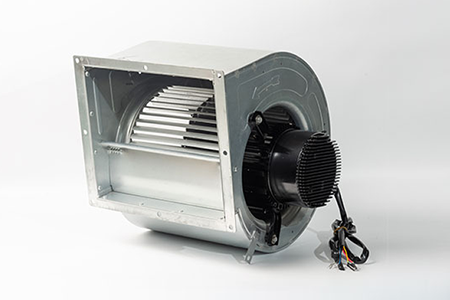

Centrifugal Blower CCH-EC12-12
Refrigeration Industry

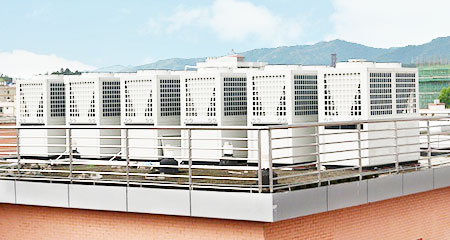

Air Source Heating Pumps
Fresh Air Circulating System

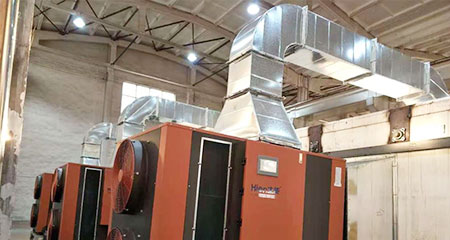

Drying Industry

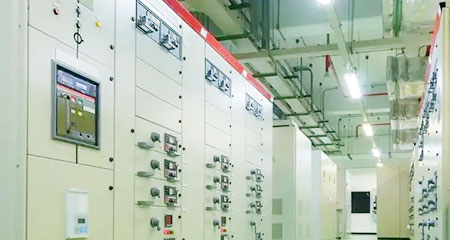

Electrical Equipment

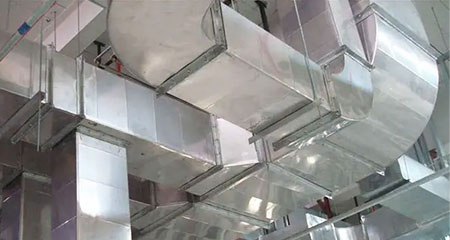

Ventilation Engineering
| No. | Model | Voltage (V) | Frequency (Hz) | Full Pressure (Pa) | Flow Rate (m3/h) | Rotating Speed (r/min) | Rated Power (W) | Current (A) |
|---|---|---|---|---|---|---|---|---|

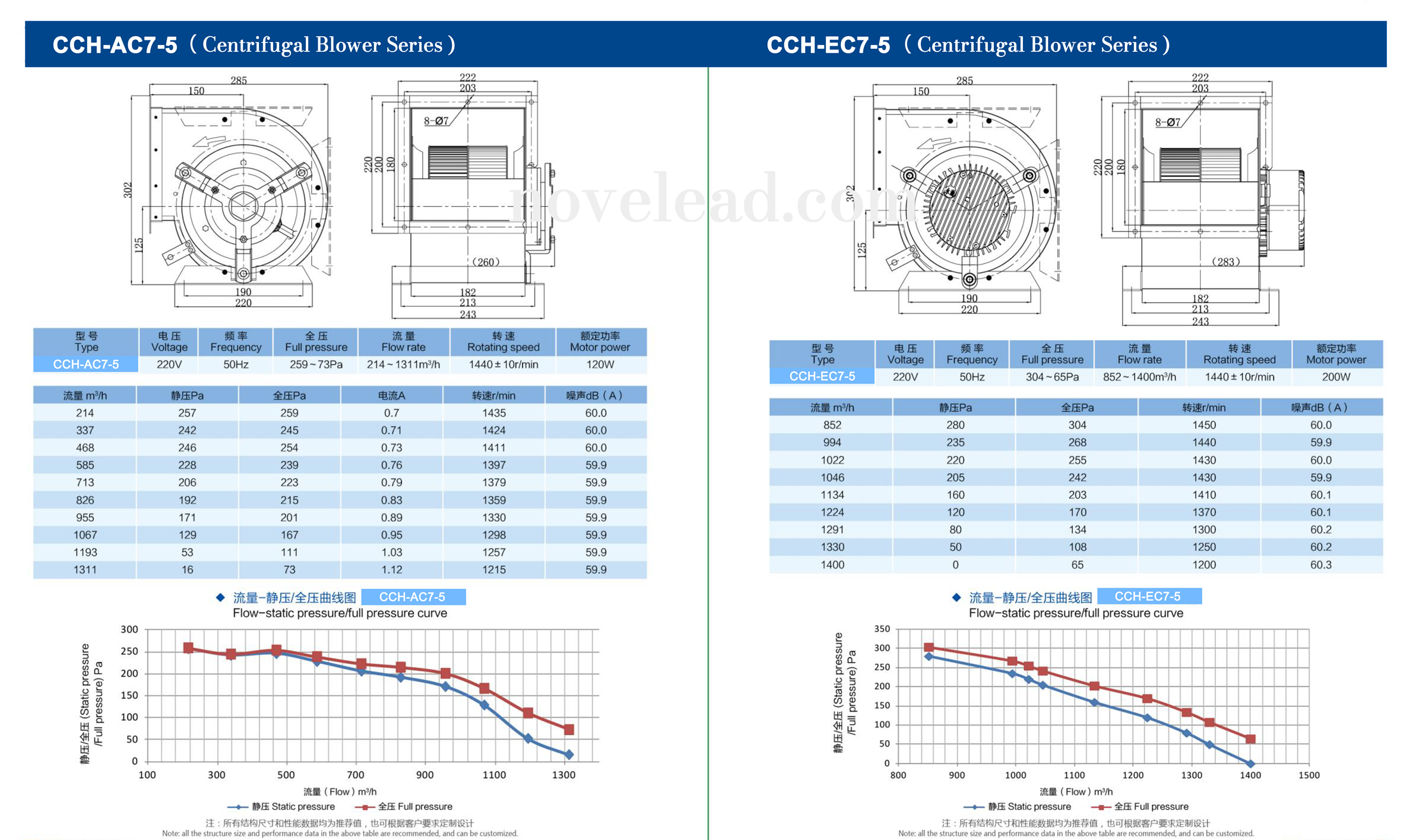

| 1 | CCH-AC7-5 | 220 | 50 | 259-73 | 214-1311 | 1440+/-10 | 120 | 0.7-1.12 |
| 2 | CCH-EC7-5 | 220 | 50 | 304-65 | 852-1400 | 1440+/-10 | 200 | N/A |

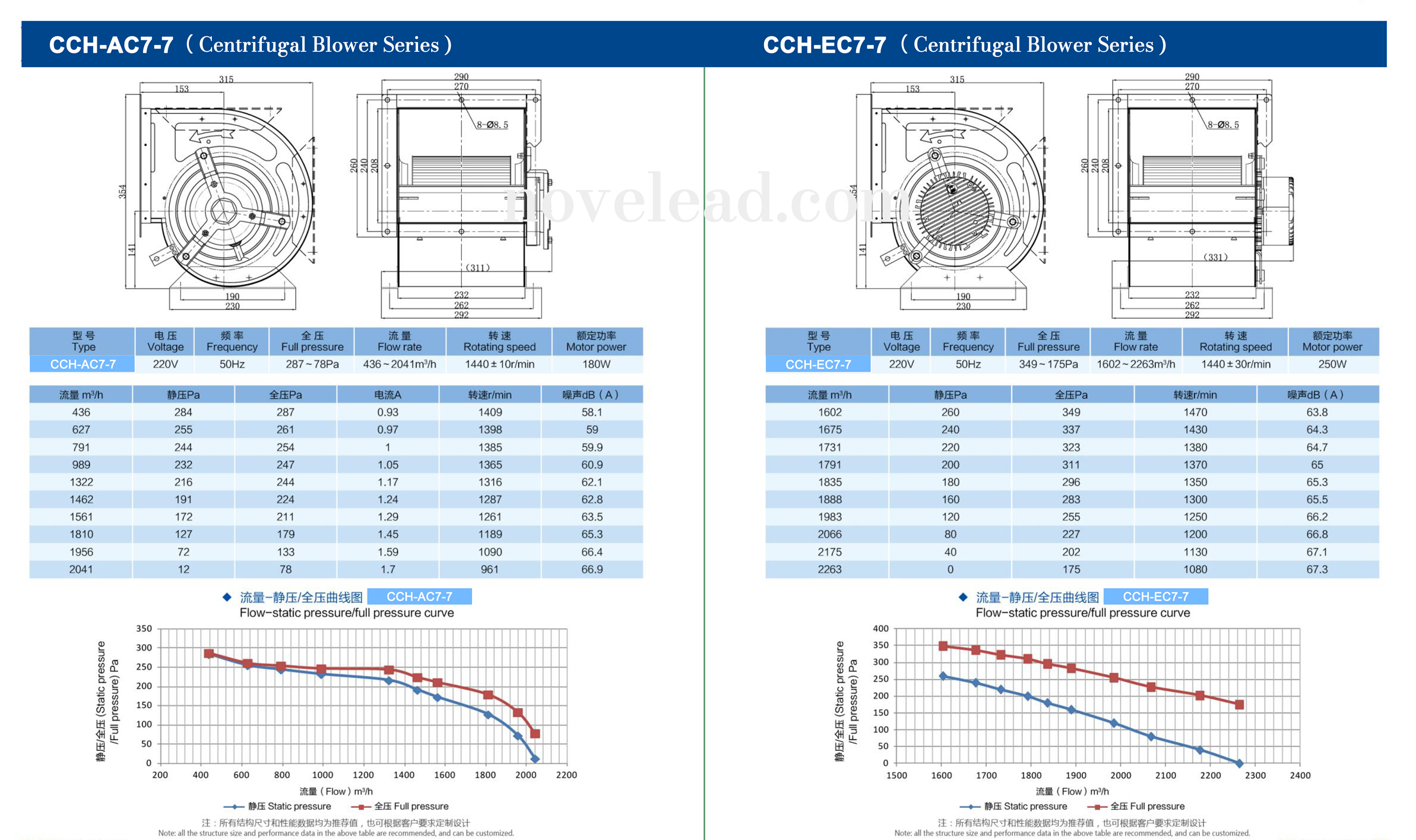

| 3 | CCH-AC7-7 | 220 | 50 | 287-87 | 436-2041 | 1440+/-10 | 180 | 0.93-1.70 |
| 4 | CCH-EC7-7 | 220 | 50 | 349-175 | 1602-2263 | 1440+/-10 | 250 | N/A |

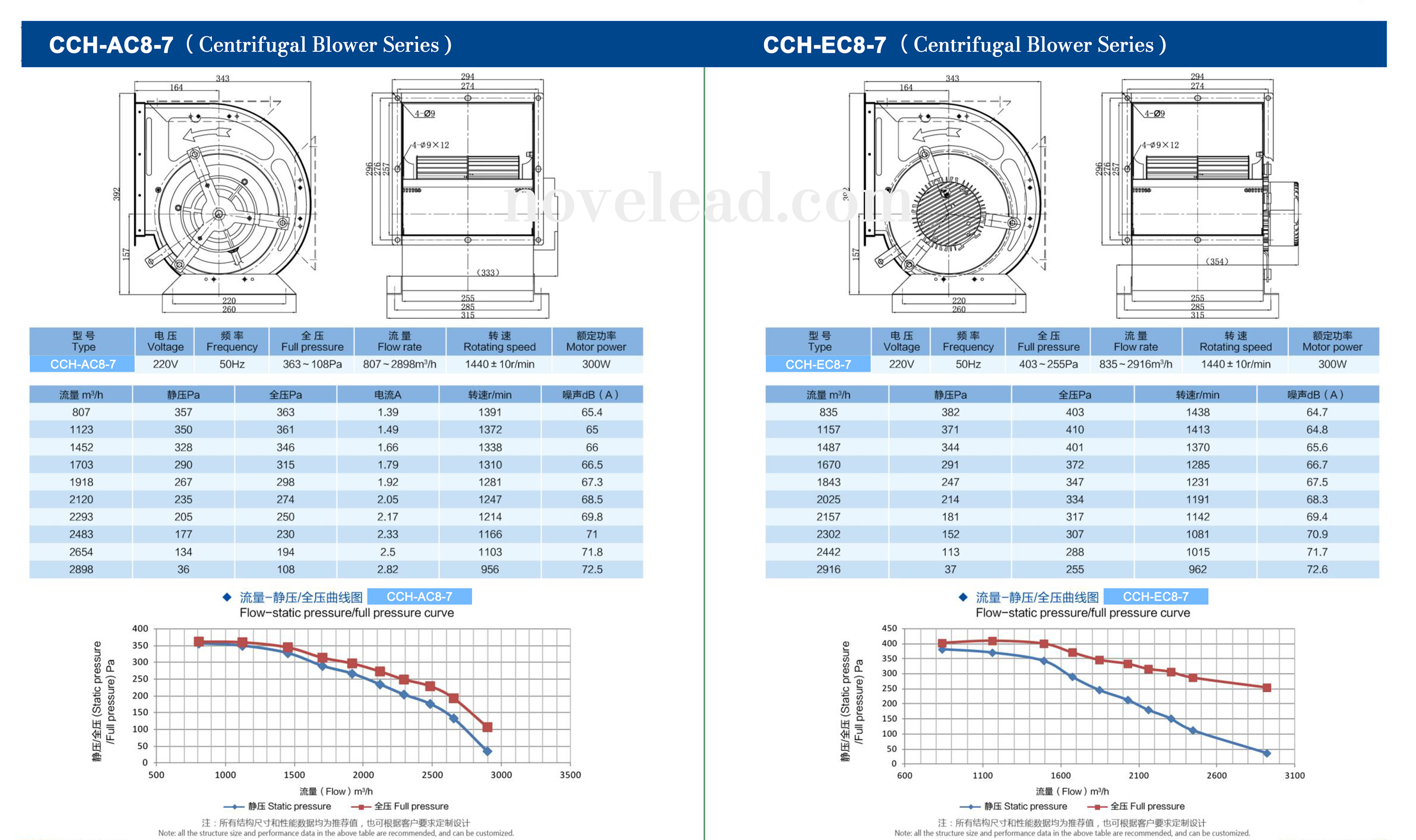

| 5 | CCH-AC8-7 | 220 | 50 | 363-108 | 807-2898 | 1440+/-10 | 300 | 1.39-2.82 |
| 6 | CCH-EC8-7 | 220 | 50 | 403-255 | 835-2916 | 1440+/-10 | 300 | N/A |

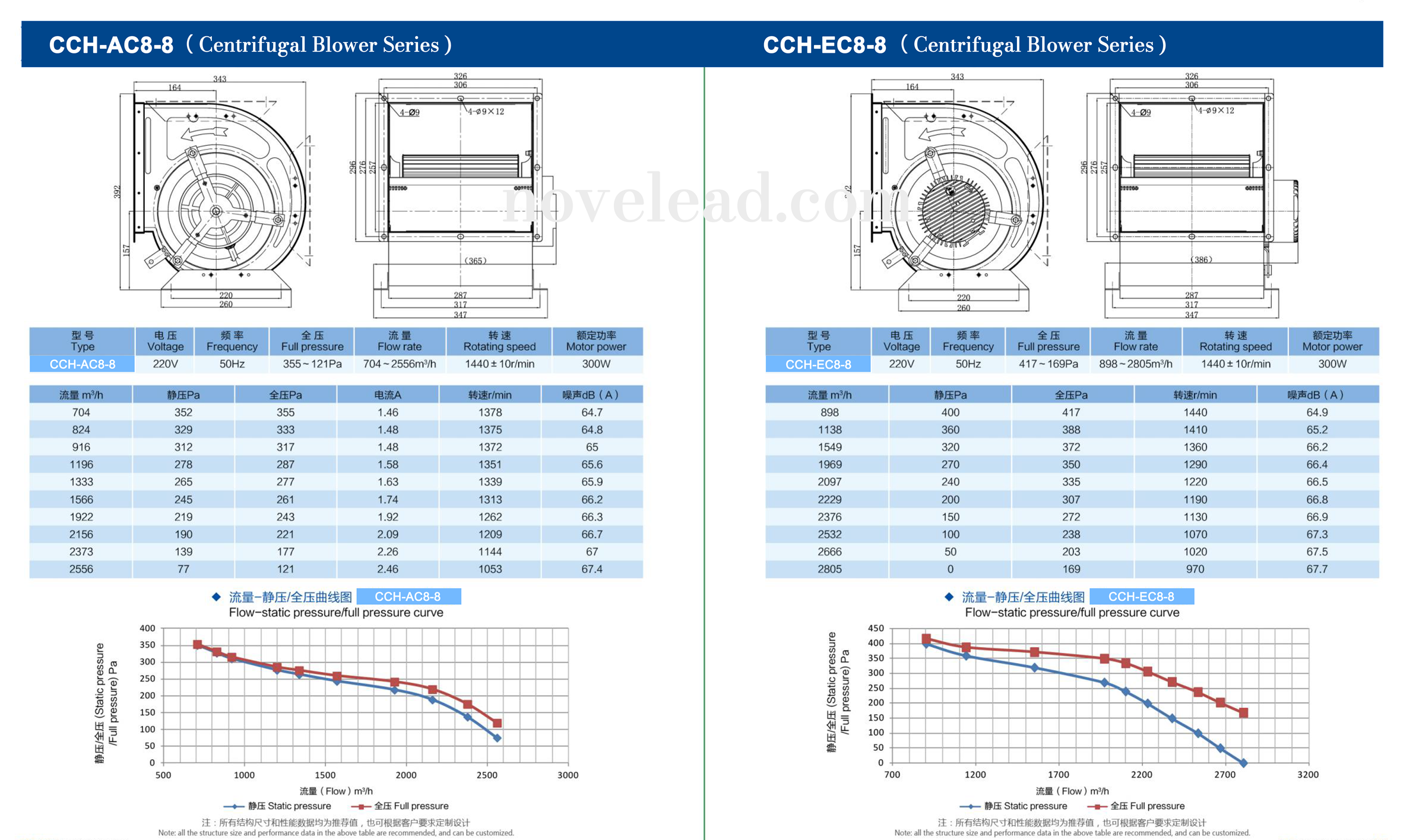

| 7 | CCH-AC8-8 | 220 | 50 | 355-121 | 704-2556 | 1440+/-10 | 300 | 1.46-2.46 |
| 8 | CCH-EC8-8 | 220 | 50 | 417-169 | 898-2805 | 1440+/-10 | 300 | N/A |

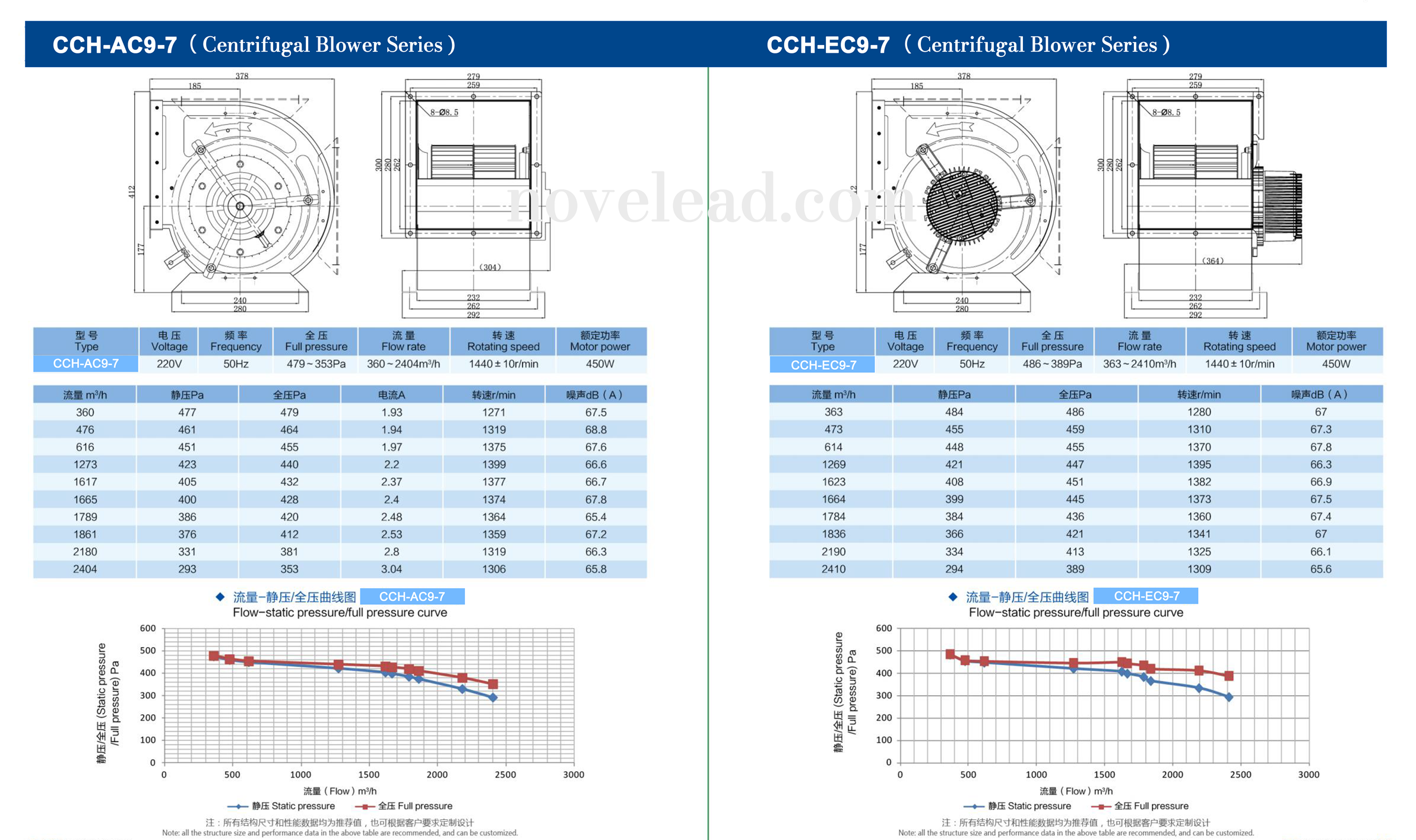

| 9 | CCH-AC9-7 | 220 | 50 | 479-353 | 360-2404 | 1440+/-10 | 450 | 1.93-3.04 |
| 10 | CCH-EC9-7 | 220 | 50 | 486-389 | 363-2410 | 1440+/-10 | 450 | N/A |

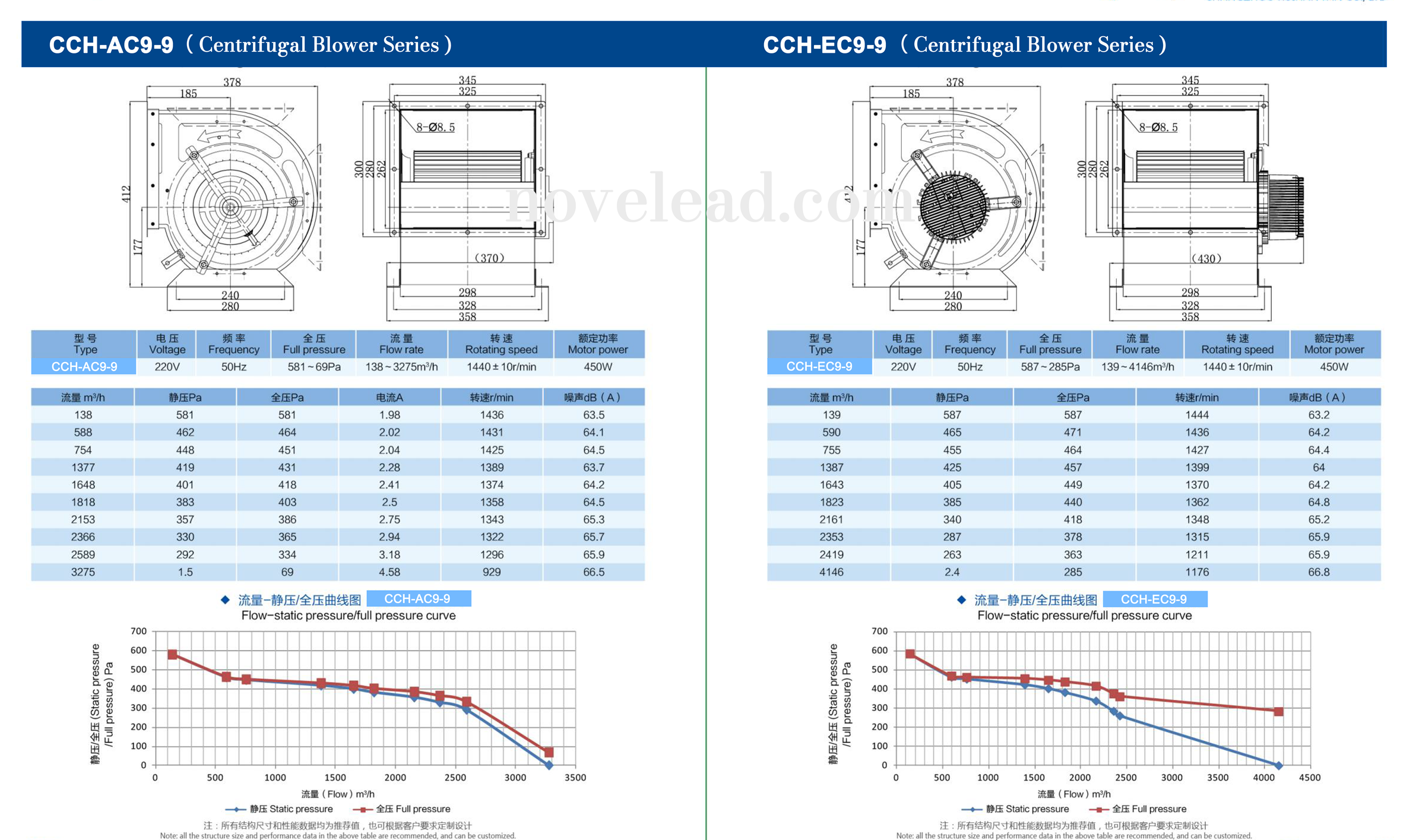

| 11 | CCH-AC9-9 | 220 | 50 | 581-69 | 138-3275 | 1440+/-10 | 450 | 1.98-4.58 |
| 12 | CCH-EC9-9 | 220 | 50 | 587-285 | 139-4146 | 1440+/-10 | 450 | N/A |

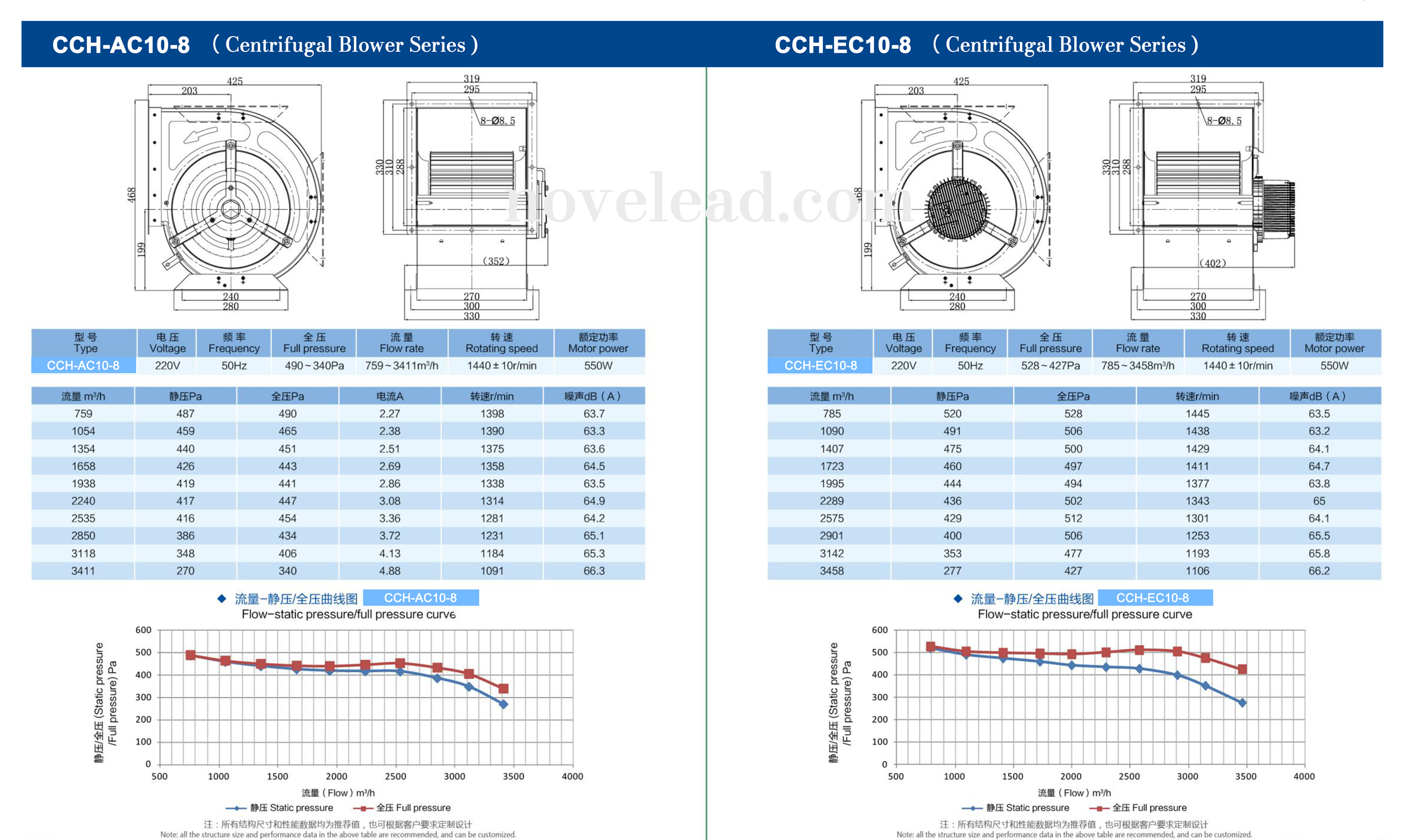

| 13 | CCH-AC10-8 | 220 | 50 | 490-340 | 759-3411 | 1440+/-10 | 500 | 2.27-4.88 |
| 14 | CCH-EC10-8 | 220 | 50 | 528-427 | 785-3458 | 1440+/-10 | 550 | N/A |

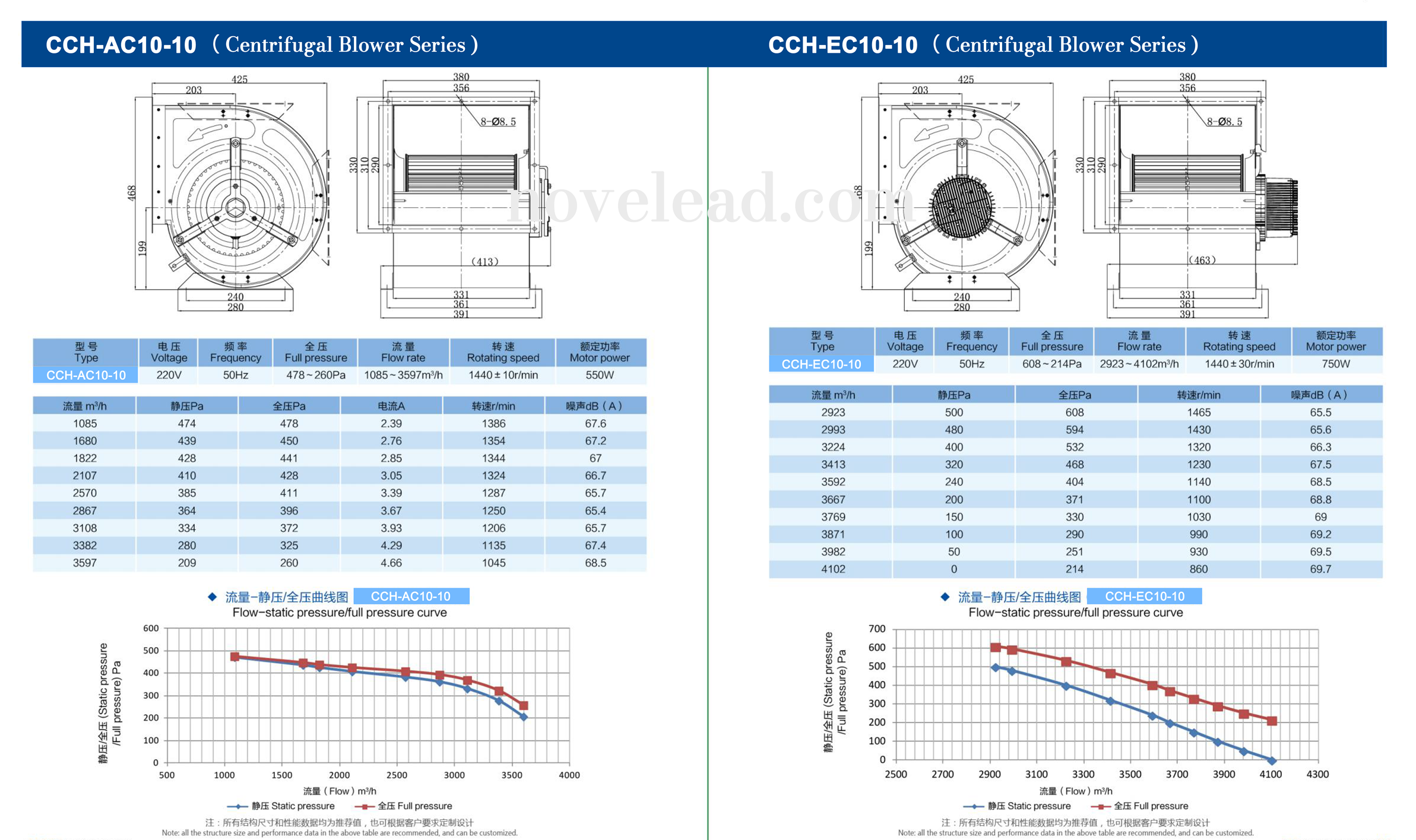

| 15 | CCH-AC10-10 | 220 | 50 | 478-260 | 1085-3597 | 1440+/-10 | 550 | 2.39-4.66 |
| 16 | CCH-EC10-10 | 220 | 50 | 608-214 | 2923-4102 | 1440+/-10 | 750 | N/A |

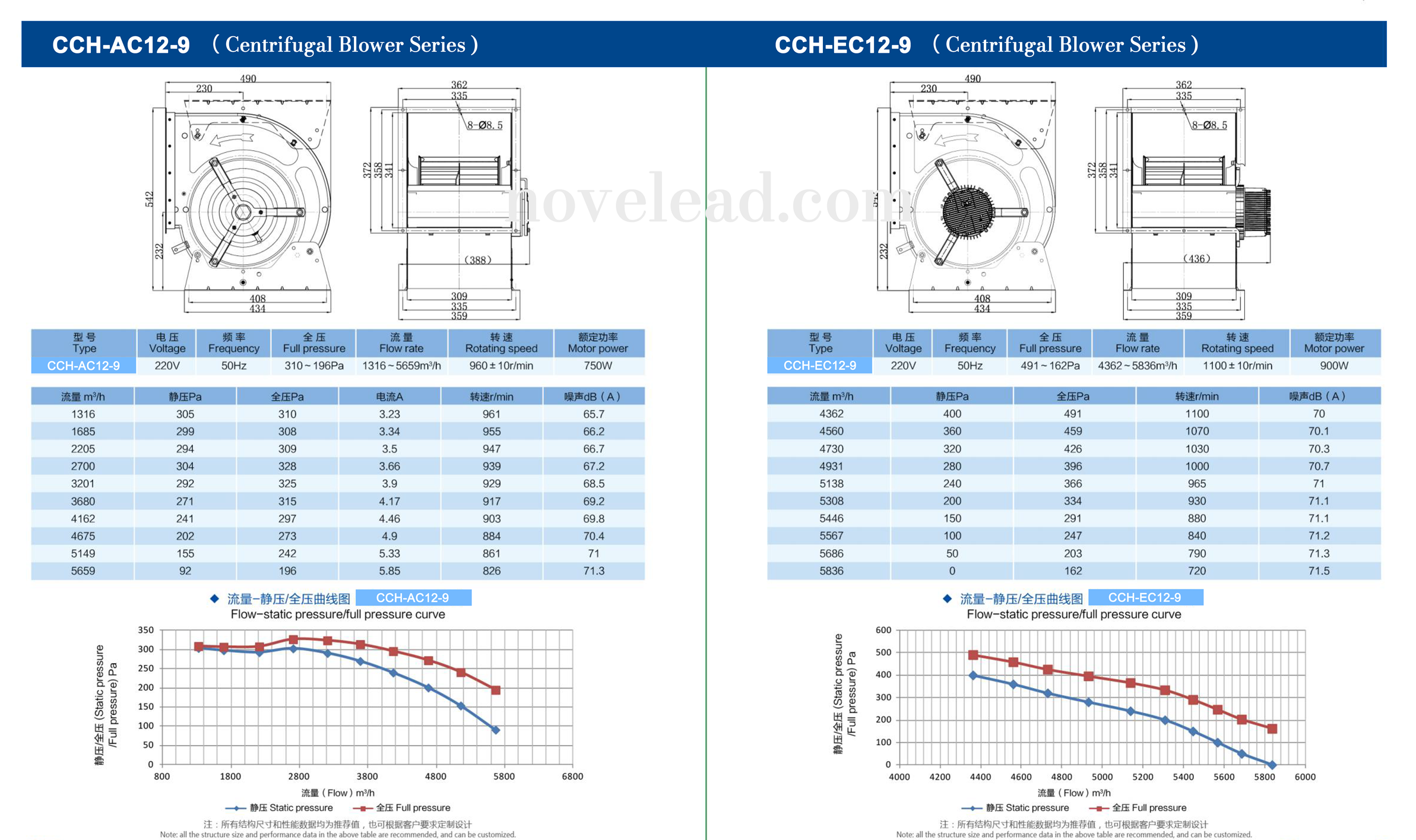

| 17 | CCH-AC12-9 | 220 | 50 | 310-196 | 1316-5659 | 960+/-10 | 750 | 3.23-5.85 |
| 18 | CCH-EC12-9 | 220 | 50 | 491-162 | 4362-5836 | 1100+/-10 | 900 | N/A |

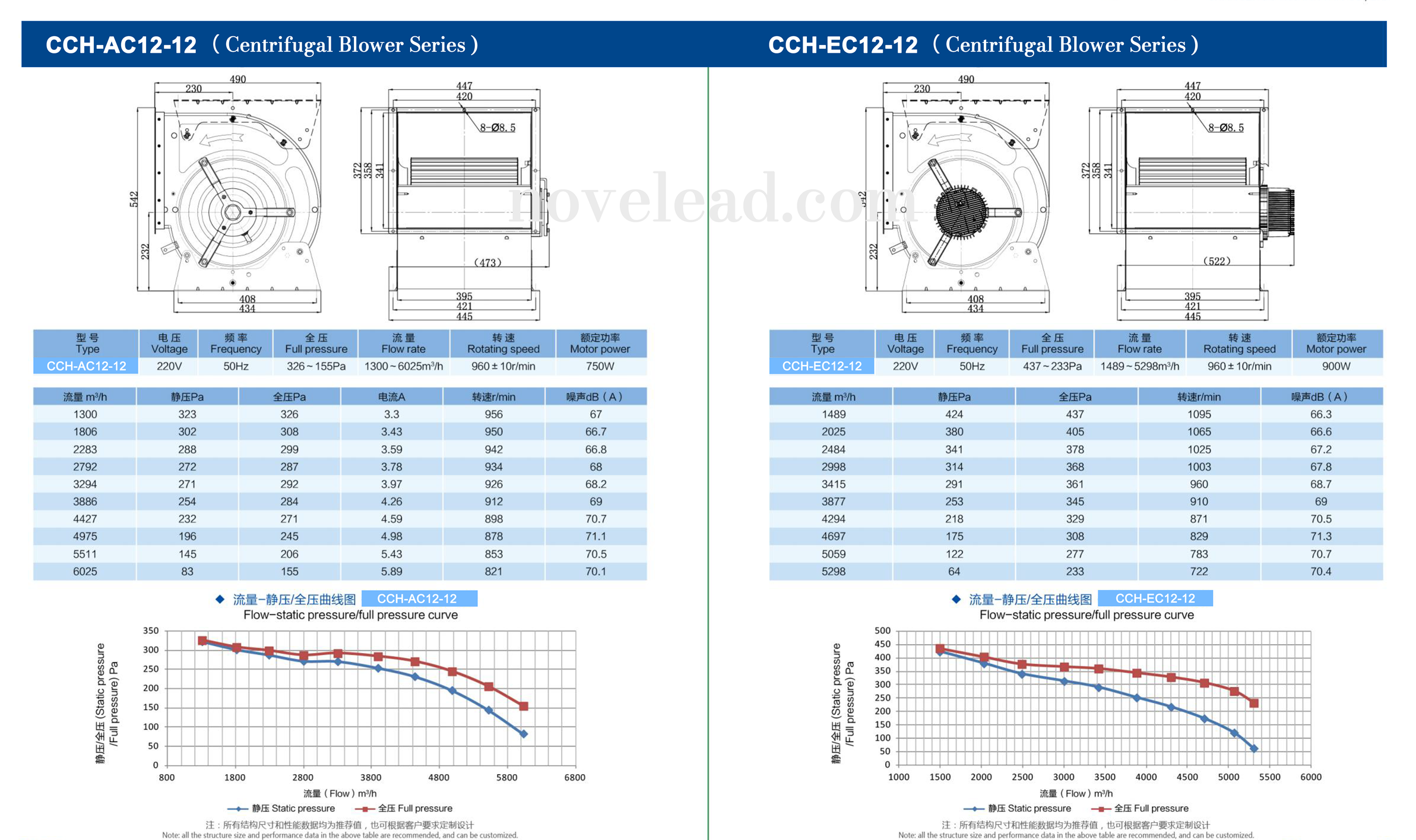

| 19 | CCH-AC12-12 | 220 | 50 | 326-155 | 1300-6025 | 960+/-10 | 750 | 3.3-5.89 |
| 20 | CCH-EC12-12 | 220 | 50 | 437-233 | 1489-5298 | 960+/-10 | 900 | N/A |

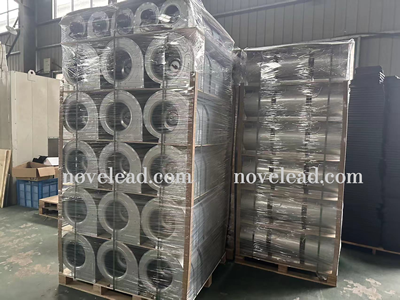

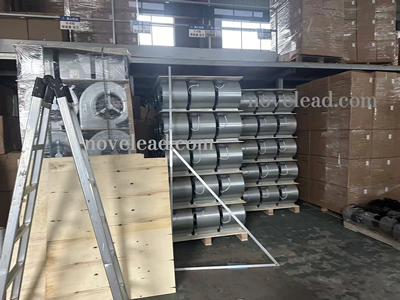

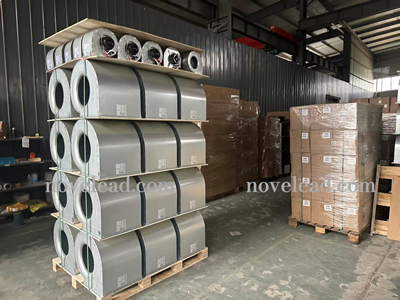

The products are carefully packaged on synthetic wooden pallets that are specially designed to eliminate the need for fumigation. These pallets are securely reinforced with packaging tape and wrapped in film to shield the blowers from rain and moisture. This packaging method not only avoids potential damage due to crushing in carton packaging but also streamlines the loading and unloading processes, enhancing overall efficiency. Furthermore, using wooden pallets optimizes container space, maximizing the number of items that can be loaded and ultimately reducing shipping costs.

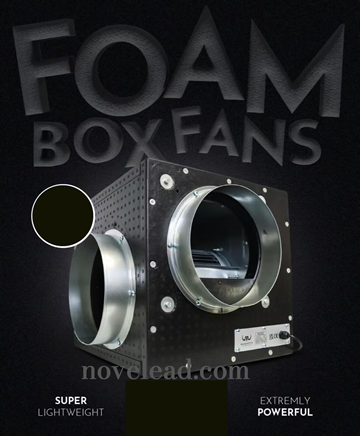

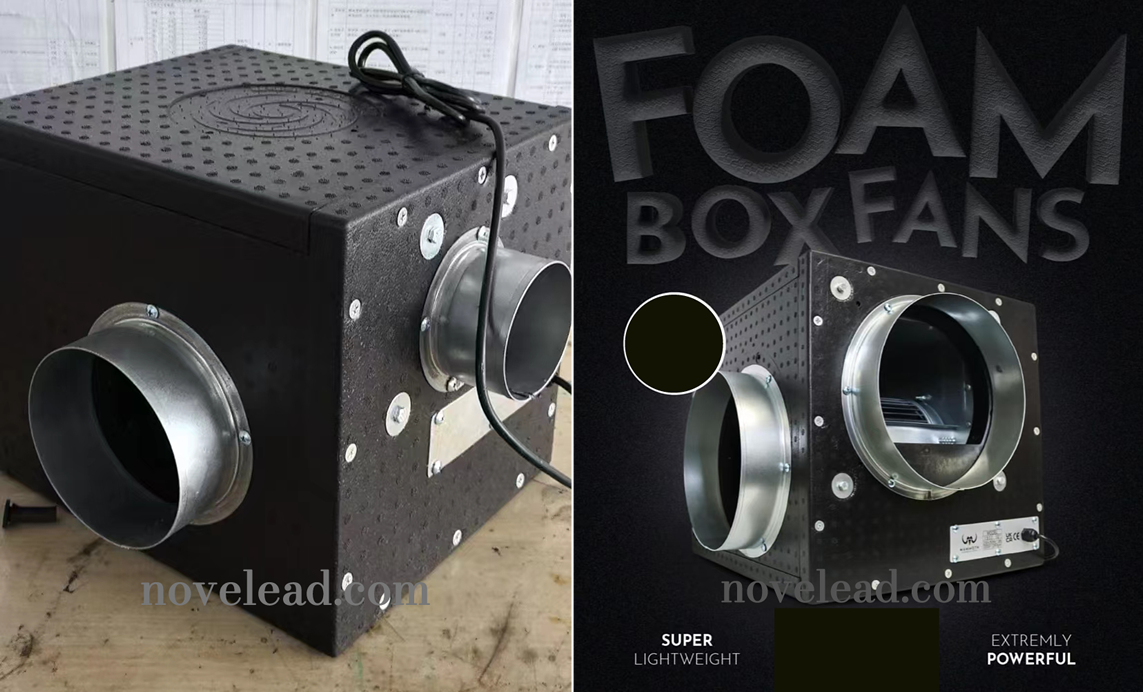

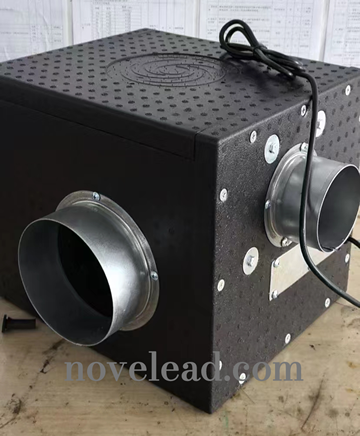

Centrifugal blowers with foam box installations have several advantages. The foam box helps to reduce noise and vibration from the blower, making it quieter and more pleasant to use. Additionally, the foam box can provide insulation to help maintain a stable internal temperature, which can be particularly beneficial in applications where temperature control is important.
However, there are also some disadvantages to consider. The foam box may add bulk and weight to the blower assembly, which could complicate installation and maintenance. It may also restrict airflow and reduce the overall efficiency of the blower. Additionally, the foam material may degrade over time, potentially leading to maintenance issues or the need for replacement. Another important drawback of centrifugal blowers with foam box installations is that the foam box can occupy additional container space, resulting in reduced loading quantity and increased shipping costs.
Overall, the decision to use a centrifugal blower with a foam box installation will depend on the specific requirements of the application and the trade-offs between noise reduction, insulation, and potential drawbacks.
We will provide one complimentary replacement part for each model in the event of a defect. Our products come with a 24-month quality warranty, and we offer free replacements for any product defects. We ensure superior quality by using high-grade parts and materials, including 100% pure copper wires, renowned NSK bearings, and top-quality silicon steel sheets.
